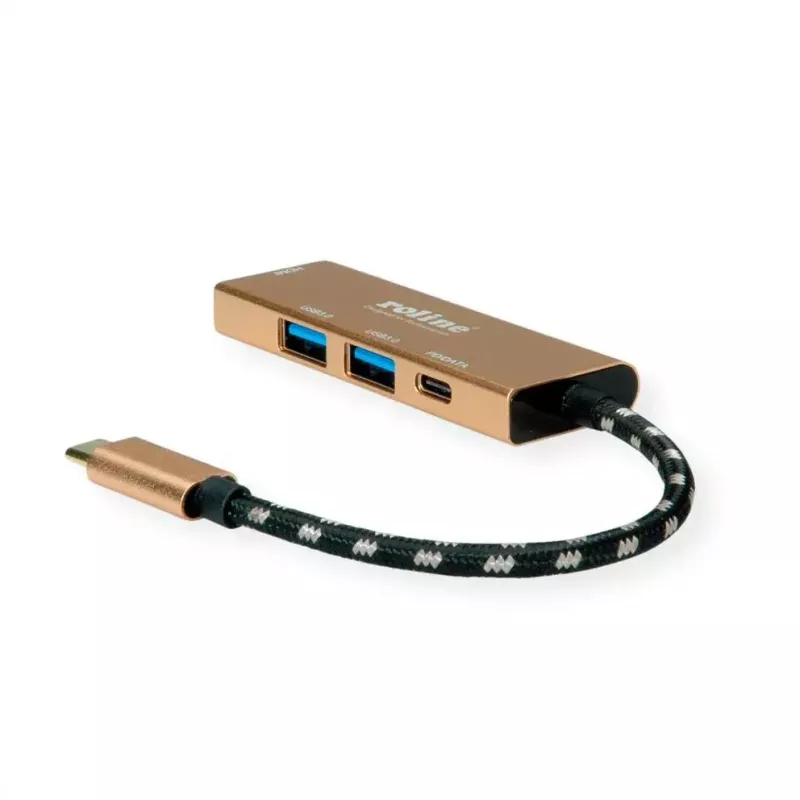

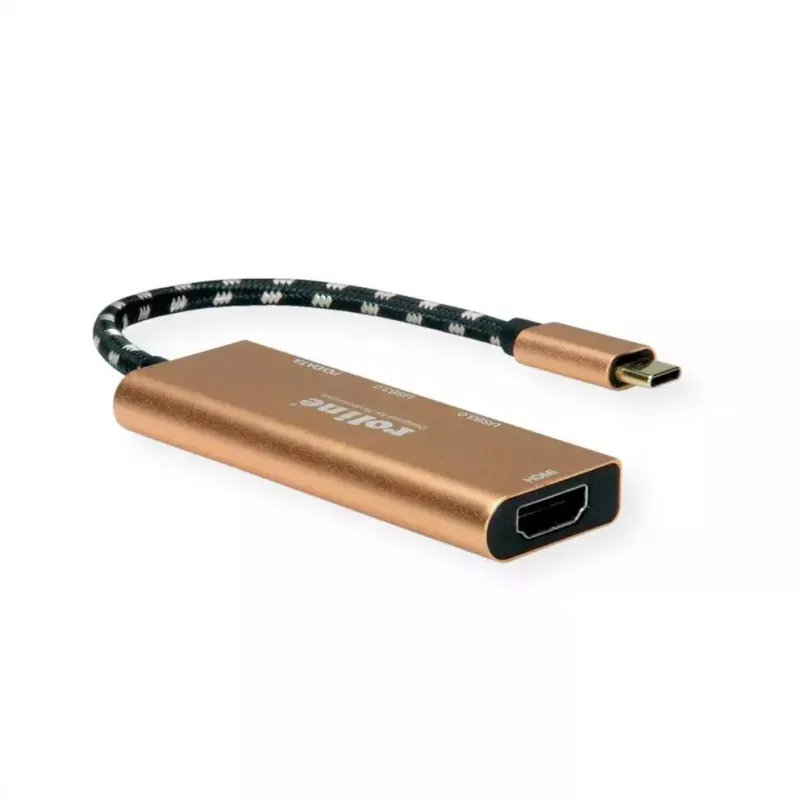

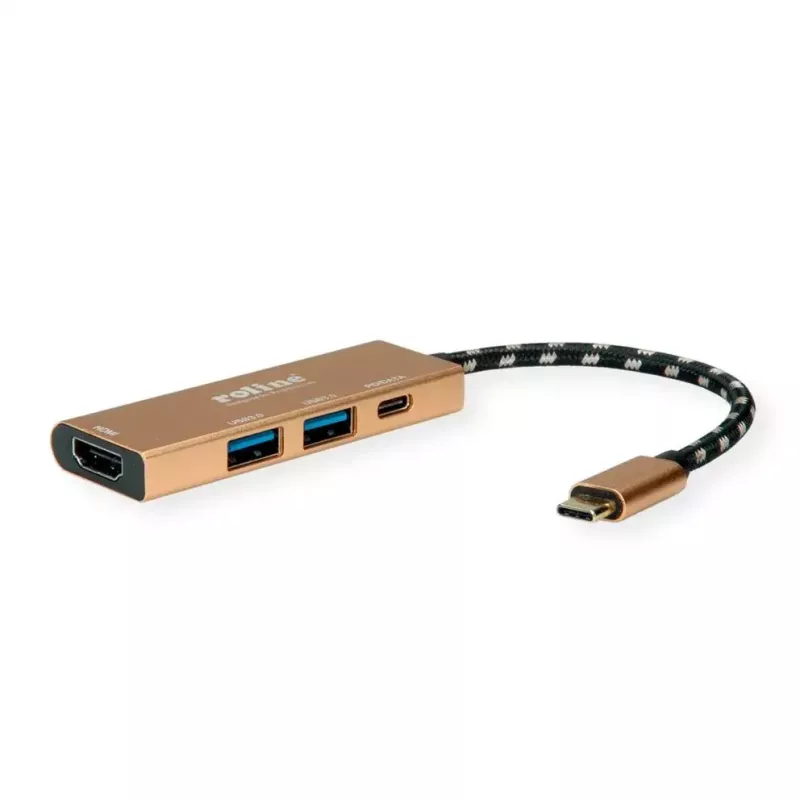

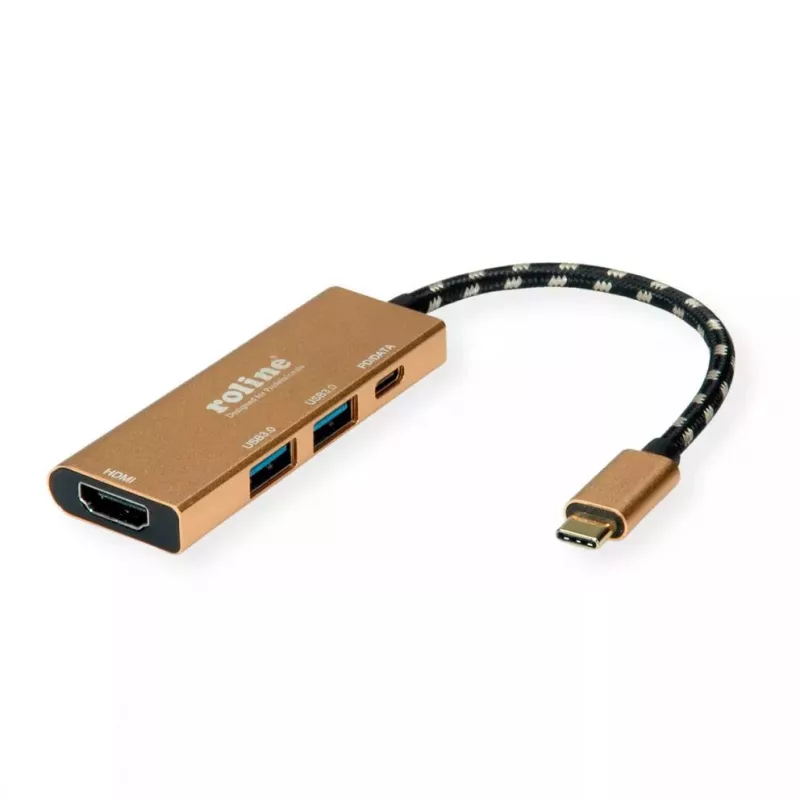

Laptop-dock ROLINE 12.02.1119

The ROLINE 12.02.1119 laptop dock provides a compact and lightweight way to expand connectivity for MacBooks, Ultrabooks and other notebooks. With wired USB Type-C (USB 3.2 Gen 2) input and multiple host ports, the dock enables connection to everyday workplace peripherals and supports a digital output resolution up to 3840 x 2160 @30Hz.

Advantages

This dock offers a slim, gold-coloured design and low weight (50 g), making it easy to carry and integrate with portable laptops. It delivers wired USB 3.2 Gen 2 Type-C connectivity with a data transfer rate of 5 Gbit/s and includes two USB Type-A ports for legacy devices plus one HDMI port for high-definition external displays. The single-HDMI output supports a maximum resolution of 3840 x 2160 at 30 Hz.

Suitable for

• Connecting MacBooks, Ultrabooks and Windows notebooks to external displays
• Adding USB Type-A ports for mice, keyboards and storage
• Portable workstation setups for office or remote work

Key specifications

• Model: ROLINE 12.02.1119
• Connectivity: Wired USB Type-C (USB 3.2 Gen 2)
• Data transfer rate: up to 5 Gbit/s
• HDMI outputs: 1 (max. 3840 x 2160 @30Hz)
• USB Type-A ports: 2
• Colour: Gold
• Weight: 50 g
• Category: Docking station

How to use

Connect the dock to your laptop using a compatible USB Type-C port supporting data. Attach external peripherals such as keyboard, mouse and external storage to the USB Type-A ports, and connect an external monitor to the HDMI port. Ensure the laptop’s USB-C port supports video output if you want to use the HDMI display. Once connected, configure display settings on your operating system to set resolution and screen arrangement.

Recommendations

Use a laptop USB-C port that supports DisplayPort Alt Mode for HDMI output. For the best display performance at 3840 x 2160, set the external monitor to 30 Hz as supported. Keep device firmware and OS drivers up to date for reliable connectivity.
