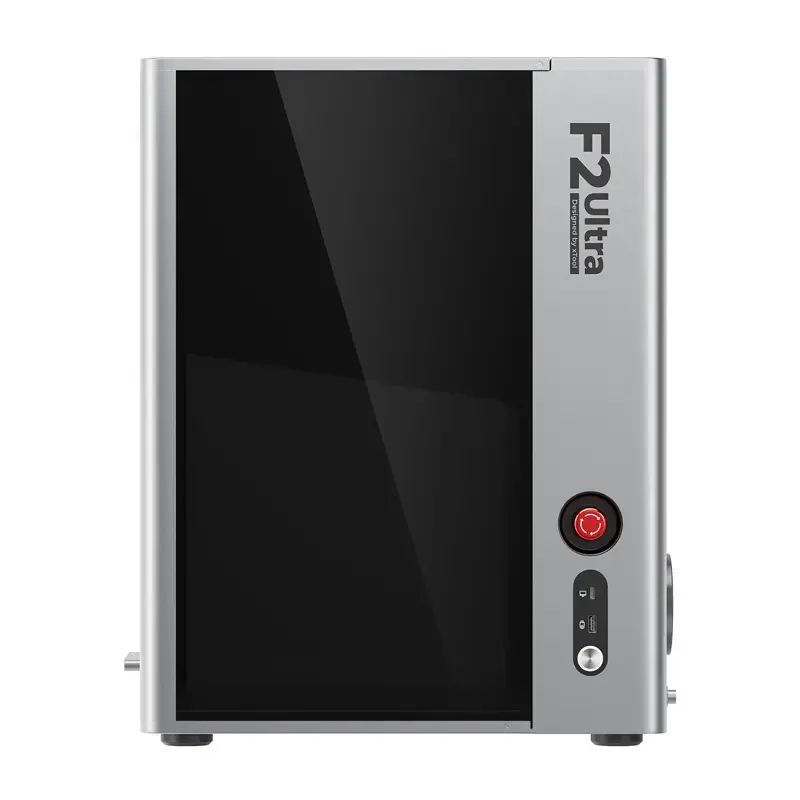

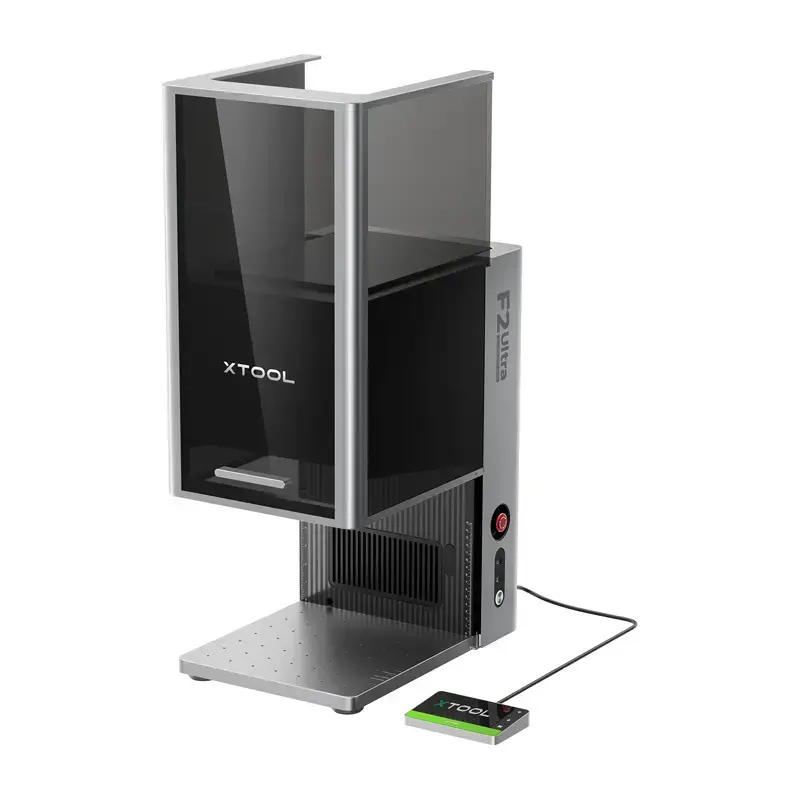

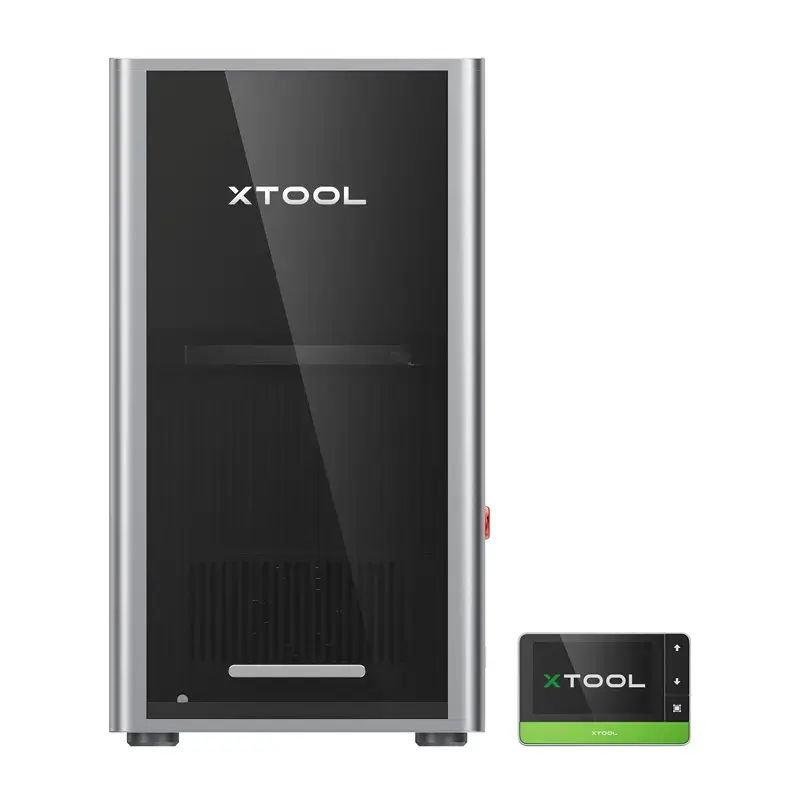

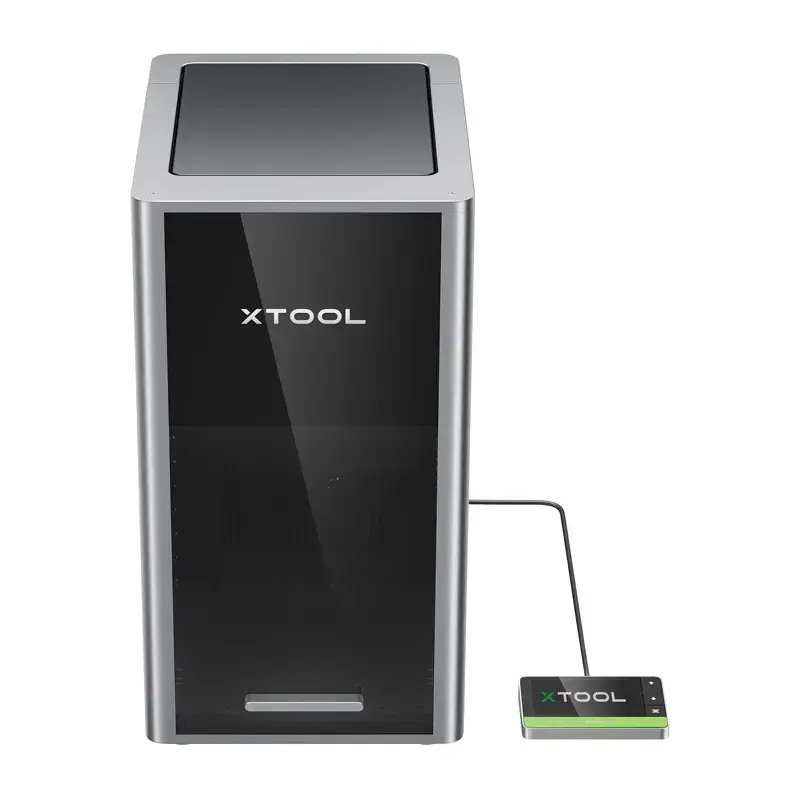

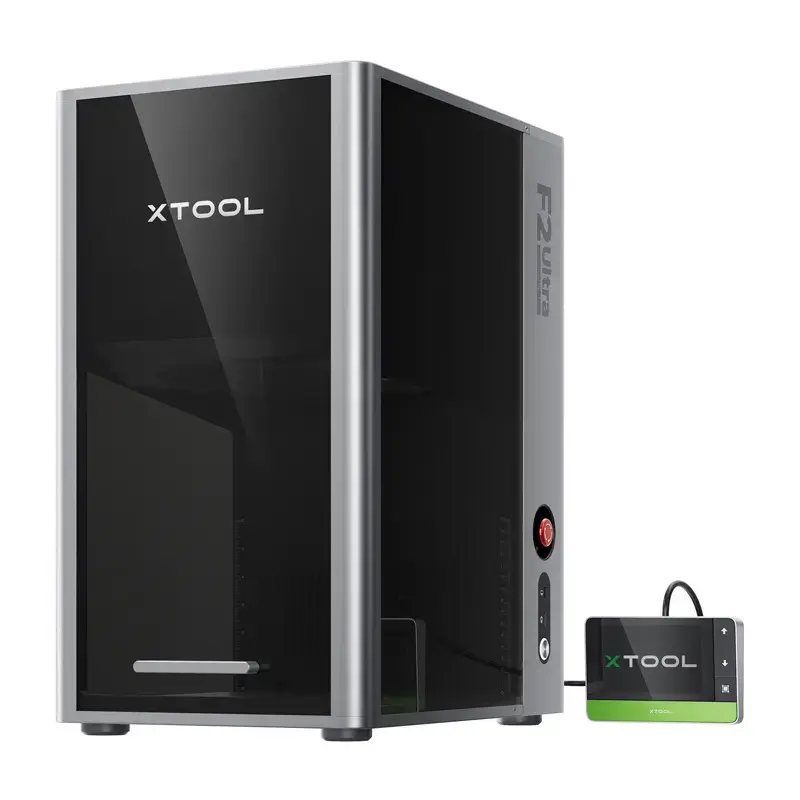

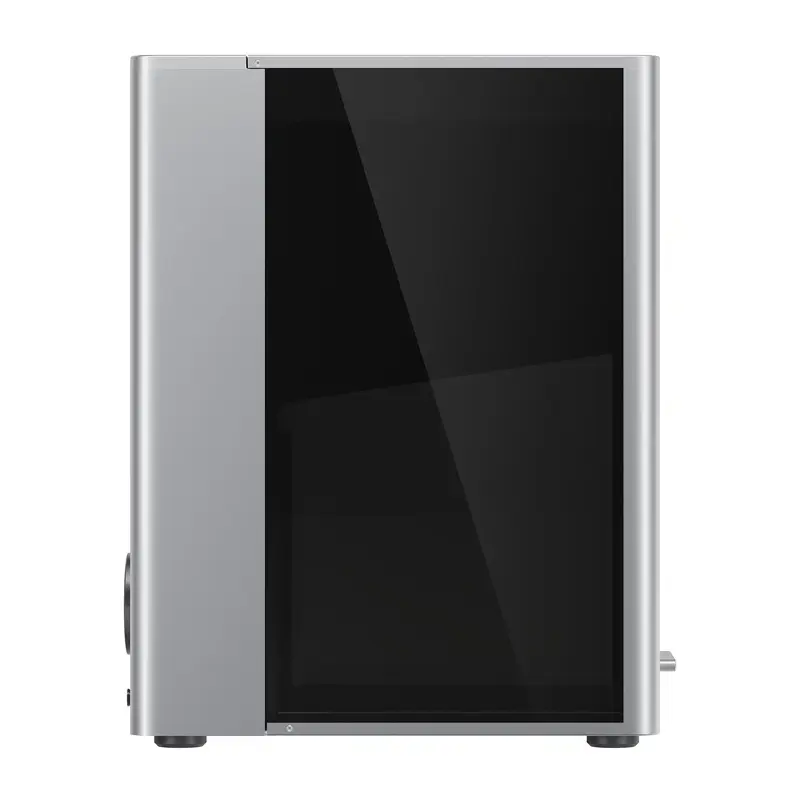

Lasergraveerder xTool F2 Ultra met Auto-Streamline-toevoer

The xTool F2 Ultra combines a 60 W MOPA laser with a 40 W diode laser in a dual-laser configuration and includes the xTool Auto Streamline™ feeder. This compact laser engraving and cutting system is designed for a wide range of materials — from metals such as stainless steel, aluminum and brass to common substrates like wood, leather, acrylic, glass, stone and rubber. Dual 48 MP cameras and built-in AI automatically detect materials and optimize settings, while a larger 220 × 220 mm working area (expandable to approx. 220 × 500 mm with the feeder) and maximum speeds up to 15,000 mm/s improve throughput for both hobby and small-scale production tasks.

Advantages

The dual MOPA + diode design expands material capabilities, enabling color and holographic effects on metals, deep engraving and cutting on a variety of substrates, and fine-detail marking due to a small MOPA spot size. AI-driven automatic material recognition and dual-camera positioning increase accuracy and reduce manual setup. The included Auto Streamline™ feeder allows continuous processing and larger effective work area for batch jobs. Safety features include an enclosed cover, extraction system, emergency stop and fire alarm, and the system is supported by xTool Creative Space software and Atommm/Almake ecosystems for material libraries, automated path planning and ready-made design resources.

Suitable for

• Jewelry marking and personalization
• Small-batch production and order fulfillment
• Custom signage, plaques and decorative panels
• Leather goods, wooden crafts and cutting boards
• Prototyping and precision metal marking (stainless steel, aluminum, brass)

Key specifications

• Manufacturer: xTool; Model/MPN: F2U+C (P1010155)
• Laser: 60 W MOPA + 40 W diode
• Operation modes: Laser engraving, laser cutting

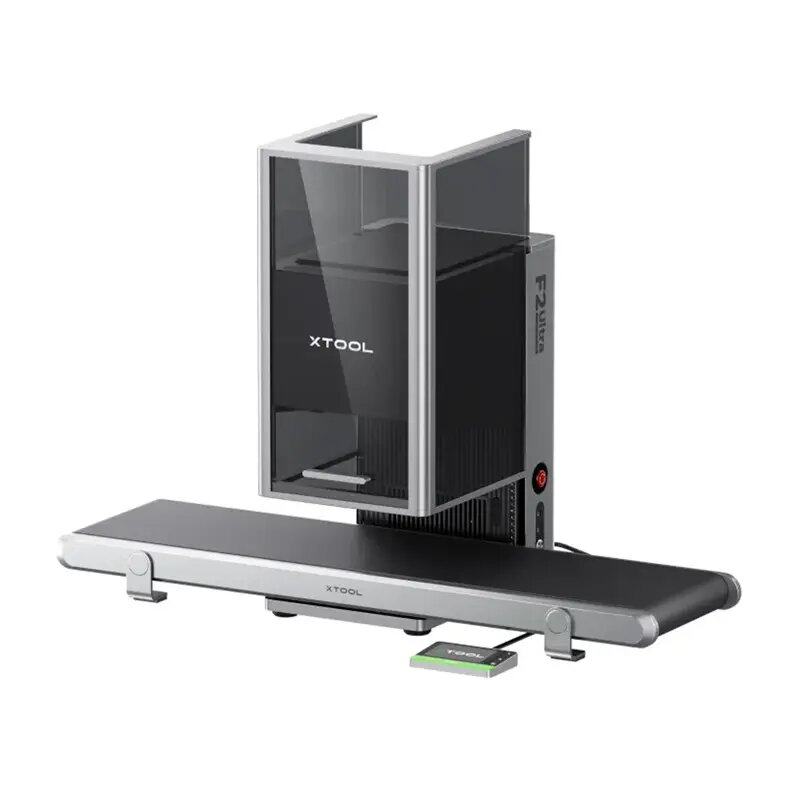

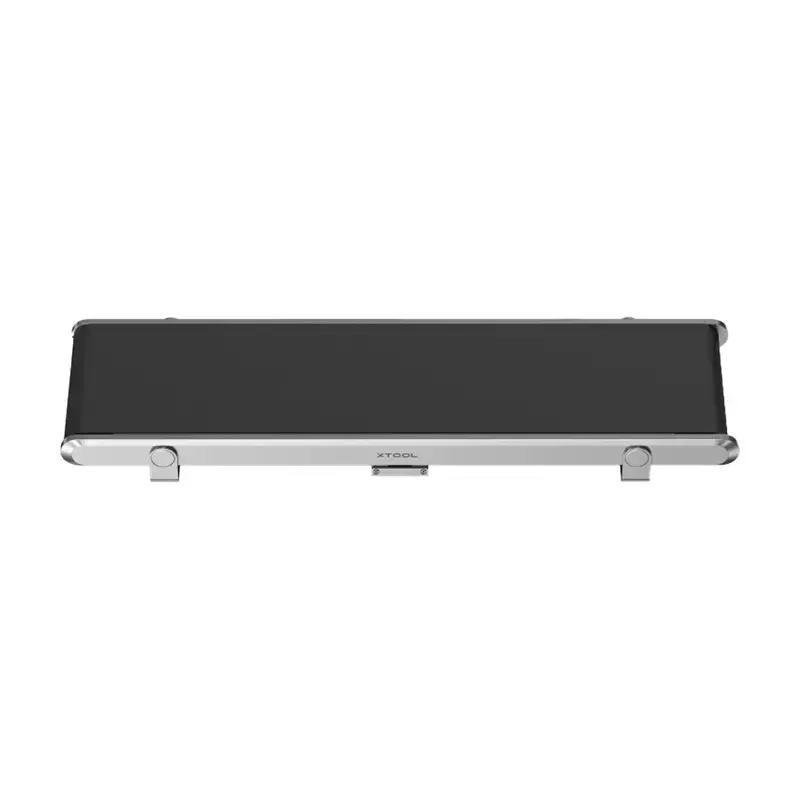

• Working area: approx. 220 × 220 mm; with Auto Streamline™ feeder approx. 220 × 500 mm
• Max. speed: 15,000 mm/s (590.55 ips)
• Max. cutting thickness (linden, multiple passes): 23 mm; (acrylic, multiple passes): 20 mm
• Max. processing height: 150 mm; Max. rotary diameter: 150 mm
• Positioning precision: 0.2 mm; Built-in cameras: dual 48 MP; Autofocus
• Supported materials (examples): Diode — paper, wood, leather, MDF, some dark opaque acrylics; MOPA — stainless steel, aluminum, brass, silver, plastic, titanium, gold
• Connection: USB / Wi‑Fi / IP; Supported files: SVG, DXF, JPG, PNG, BMP, TIF
• Pre-assembled; Safety class: Laser Class 4

How to use

Place the workpiece within the 220 × 220 mm work area or set up the Auto Streamline™ feeder for continuous feeding and larger runs. Use xTool Creative Space (xcs) to import your design file (SVG, DXF, JPG, PNG, etc.), select or let the AI detect the material, and apply the suggested parameters. Position using the dual cameras and enable autofocus. Start the job from the touchscreen controller or via the software connection. Monitor extraction and safety indicators during operation and stop immediately if an alarm or emergency stop is triggered.

Recommendations

For best results, select the correct material profile in xTool Creative Space or allow the AI to auto-detect material; perform test passes when working with unfamiliar substrates; ensure adequate ventilation and use the extraction system; and secure small or irregular items before engraving. For batch production, configure the Auto Streamline™ feeder and verify alignment with a trial run.
