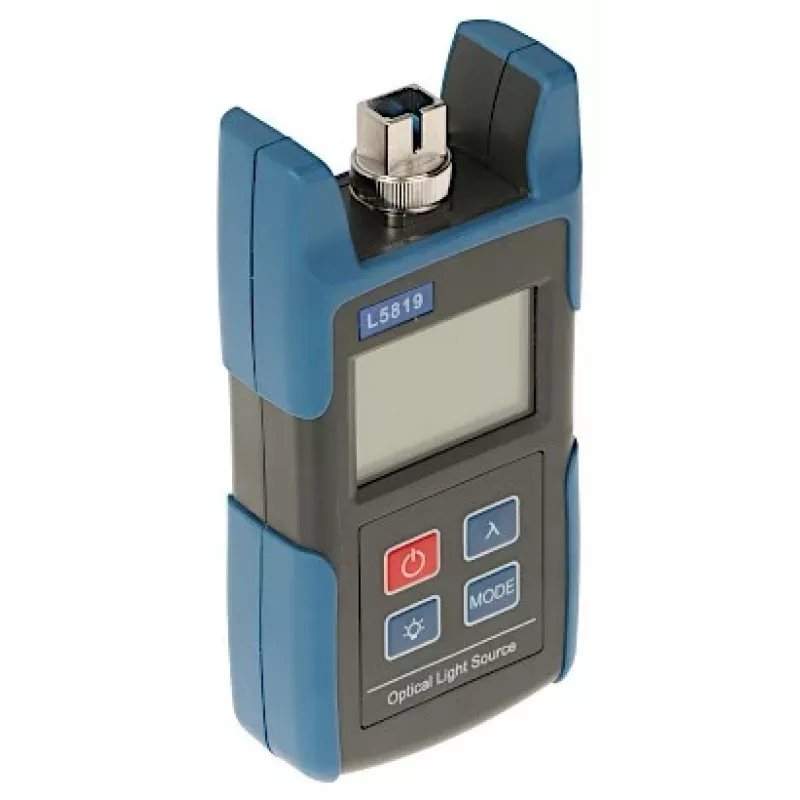

Laslichtbron SP-OSM32/MINI 1310/1550nm Spacetronik

The Spacetronik SP-OSM32/MINI is a compact, portable laser light source designed for single-mode fiber optic network testing. It delivers stable optical output at 1310nm and 1550nm wavelengths, making it an essential tool for attenuation measurement, fiber identification, and continuity checking in telecom and data center environments.

Advantages

Dual-wavelength operation (1310nm/1550nm) with high output stability ensures accurate and reliable measurements. The universal 2.5mm adapter supports FC, SC, and ST connectors, providing flexibility for various fiber types. Long battery life (>40 hours) and auto-off function enhance field usability.

Suitable for

• Single-mode fiber optic network installation and maintenance
• Attenuation and loss testing in telecom and CATV networks
• Fiber identification and continuity checking
• Pairing with optical power meters for end-to-end link testing

Key specifications

• Wavelengths: 1310nm, 1550nm
• Emitter Type: FP-LD (Fabry-Pérot Laser Diode)
• Output Power: -5dBm
• Spectral Width: ≤10nm
• Output Stability (Short Term): ±0.05dB/15min
• Output Stability (Long Term): ±0.1dB/8h
• Modulation Frequencies: CW, 270Hz, 1kHz, 2kHz
• Optical Connector: Universal 2.5mm adapter (FC/SC/ST)
• Power Supply: 2x AA Batteries
• Battery Operating Time: >40 hours
• Auto-off Function: Yes (after 10 minutes of inactivity)
• Operating Temperature: -10°C to 60°C
• Storage Temperature: -25°C to 70°C
• Display Type: LCD
• Material: ABS Plastic
• Certifications: CE, RoHS

Recommendations

For best results, pair this light source with a compatible optical power meter. Always clean fiber connectors before testing to ensure accurate measurements.
