LED-driver MEAN WELL HLP-80H-30

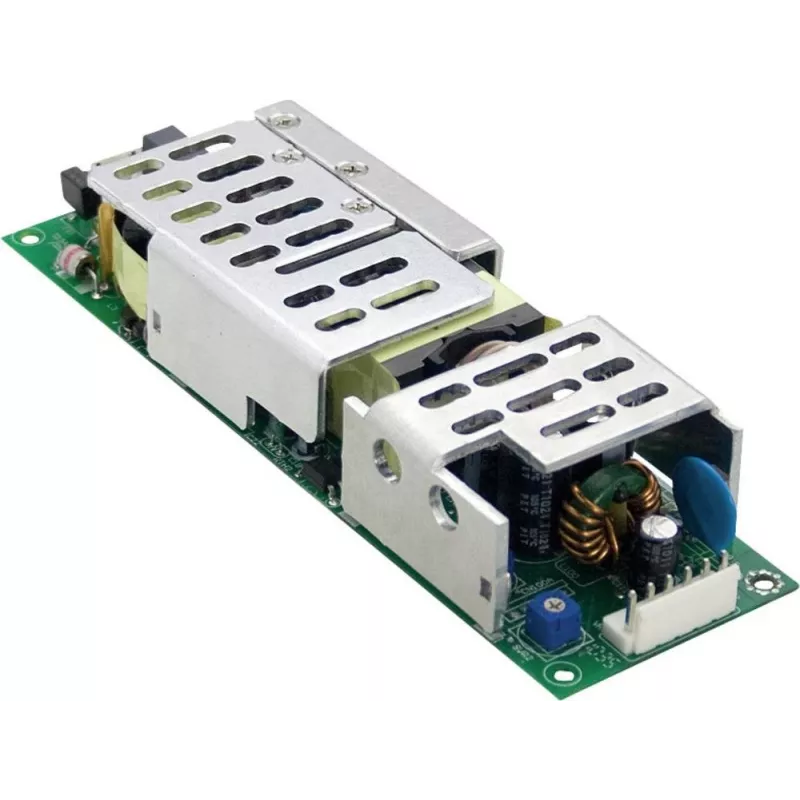

The MEAN WELL HLP-80H-30 is an AC-DC single-output LED driver that delivers up to 80 W of power with a fixed output voltage of 30 V DC and a maximum output current of 2.70 A. It supports a wide AC input range of 90–305 VAC and is built in an open-frame form factor with compact dimensions (53 mm width, 162 mm depth) and a weight of approximately 300 g. The unit operates in mixed mode (CV+CC) to provide stable voltage and current for a variety of LED lighting applications and supports dimming via 1–10 V, PWM or resistance control.

Advantages

The HLP-80H-30 combines constant-voltage and constant-current operation to ensure reliable LED performance across different loads. Its wide input voltage range allows use in regions with varying mains voltages. The compact open-frame design and low weight simplify installation and integration into fixtures or control gear. Built-in dimming options (1–10 V, PWM, resistance) make it compatible with common lighting control systems.

Suitable for

• Indoor LED fixtures requiring 30 V DC and up to 2.70 A
• LED modules in signage and accent lighting
• Retrofit luminaires and control-ready installations
• Applications needing 1–10 V or PWM dimming

Key specifications

• Brand: MEAN WELL
• Model / MPN: HLP-80H-30
• Output: 30 V DC, 2.70 A (80 W max)
• Input voltage: 90–305 VAC
• Operation mode: Mix mode (CV + CC)
• Form factor: Open frame
• Dimming: 1–10 V, PWM, resistance
• Dimensions (W × D): 53 mm × 162 mm
• Weight: ≈300 g
• EAN: 4021087021623

How to use

Install the open-frame driver according to local electrical safety regulations and MEAN WELL mounting recommendations. Connect the AC mains (90–305 VAC) to the input terminals and the LED load to the 30 V DC output, observing correct polarity and not exceeding the 2.70 A output current. For dimming, use a compatible 1–10 V control signal, PWM source or a resistor per the MEAN WELL dimming wiring guidelines. Ensure adequate ventilation around the open-frame unit to maintain rated performance.

Recommendations

Use the HLP-80H-30 in installations where the driver is protected from direct contact and moisture unless additional enclosure or protection is provided. Verify compatibility of LED modules with 30 V output and the mixed CV+CC behaviour. Follow manufacturer datasheet for thermal management, wiring diagrams and safety instructions.
