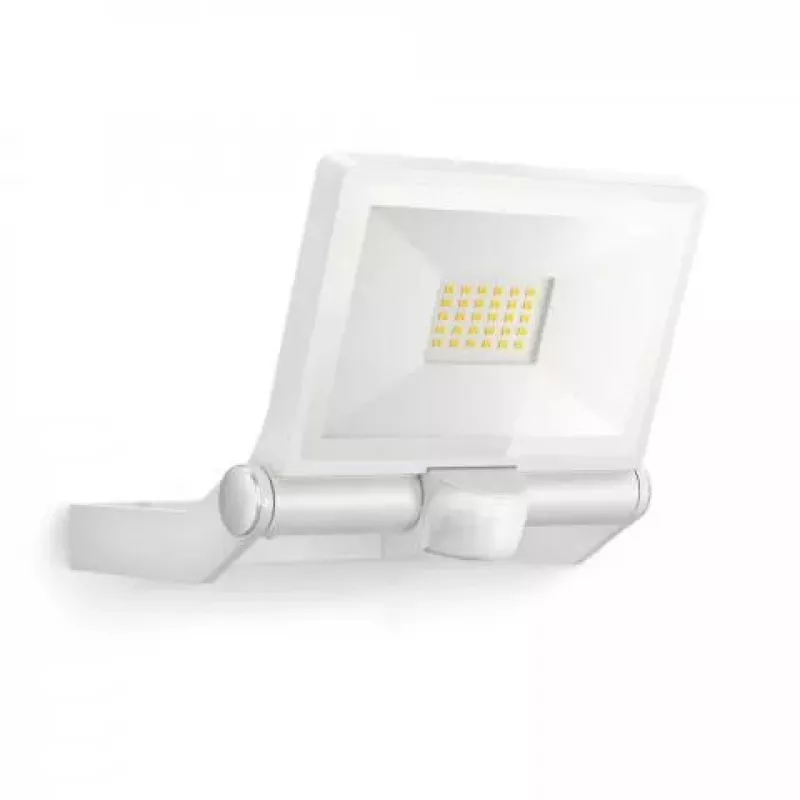

LED-wandlamp STEINEL XLED ONE 23,5 W warmwit PIR-sensor

The STEINEL XLED ONE 23.5W Warm White PIR Sensor is an outdoor LED wall light engineered for façade and perimeter illumination. Constructed with a durable aluminum housing and supplying warm white light, it combines energy-efficient LED performance with a motion-detecting PIR sensor. The fixture is intended for fixed wall mounting and operates from standard AC mains (220–240 V). The integrated sensor detects movement across a wide 180° angle and reaches up to approximately 12 meters, providing automatic activation of the light when motion is present.

Advantages

The aluminum construction offers corrosion resistance suitable for outdoor exposure while keeping the unit lightweight. The 23.5 W LED delivers consistent warm white illumination with low energy consumption compared with traditional lamps. The passive infrared sensor reduces unnecessary operation by switching the light on only when movement is detected, and the wide detection angle enhances coverage for entrances, walkways and building perimeters. Designed for straightforward wall installation, the fixture requires standard mains power without additional control equipment.

Suitable for

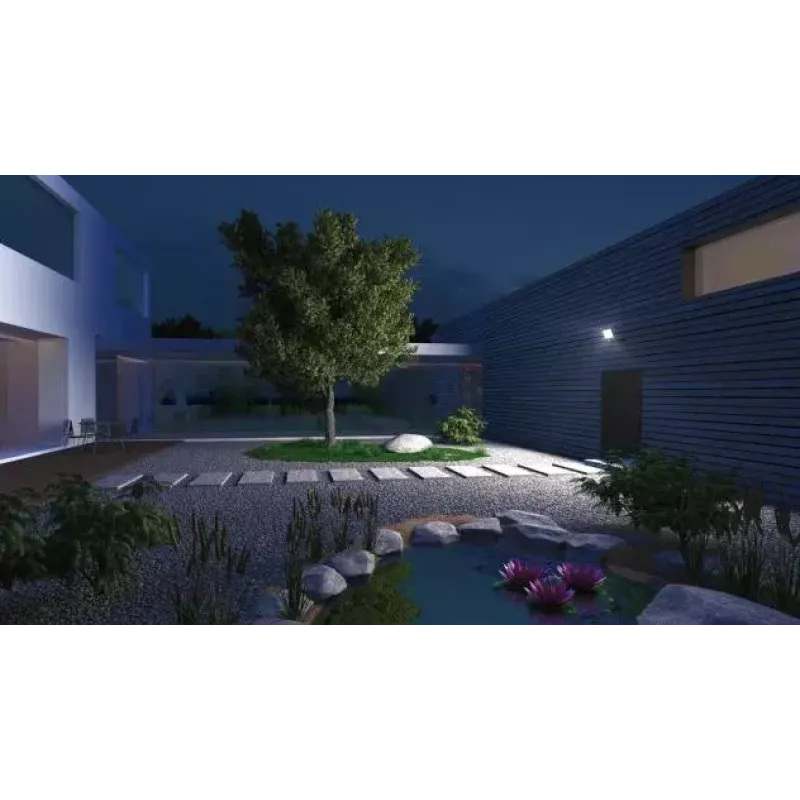

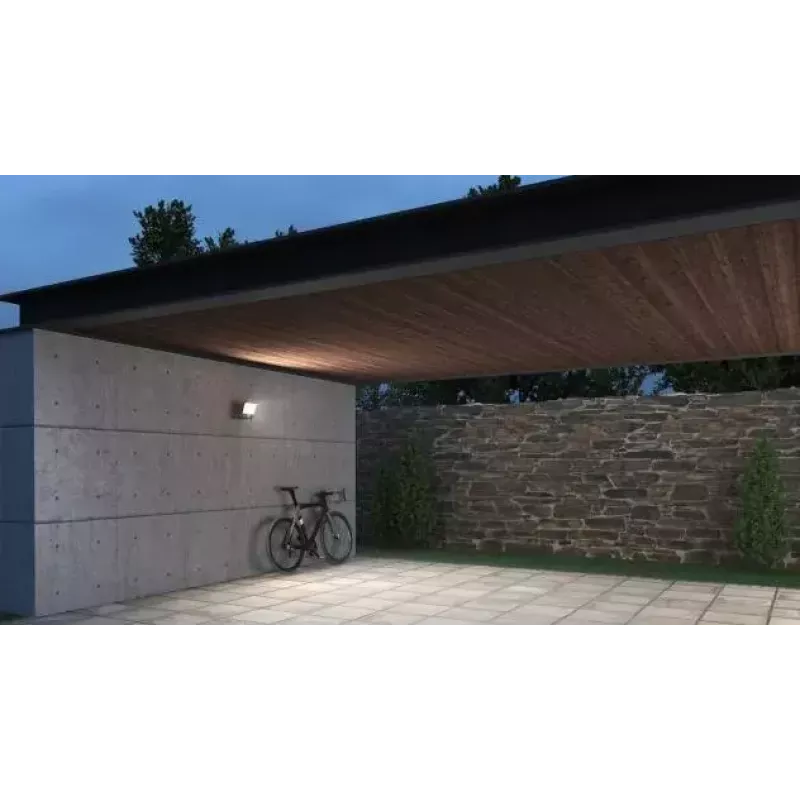

• Illuminating building façades, entranceways and porches
• Security lighting for home or small commercial properties
• Path and driveway lighting where motion-activated illumination is needed
• Areas requiring warm white, glare-controlled outdoor lighting

Key specifications

• Light source: integrated LED, 23.5 W
• Light color: warm white
• Sensor type: passive infrared (PIR)
• Detection range: up to 12 m
• Detection angle: 180°
• Housing material: aluminum
• Supply voltage: AC 220–240 V
• Mounting: wall-mounted outdoor fixture

How to use

Install the LED wall light on a vertical exterior surface at the recommended height for optimal sensor coverage, following local electrical codes and safety practices. Connect the unit to a 220–240 V AC mains supply and secure all wiring within the fixture’s terminal compartment. Adjust the sensor position and any available time or sensitivity settings according to the site requirements. After commissioning, the light will remain off until the PIR sensor detects movement within its coverage area and then switch on automatically.

Recommendations

Position the fixture so the PIR sensor has an unobstructed view of the intended detection zone and avoid mounting close to heat sources or reflective surfaces that may cause false triggers. For consistent warm white illumination and extended service life, ensure the fixture is installed with appropriate weather sealing and periodic cleaning of the housing to remove debris and maintain sensor performance.
