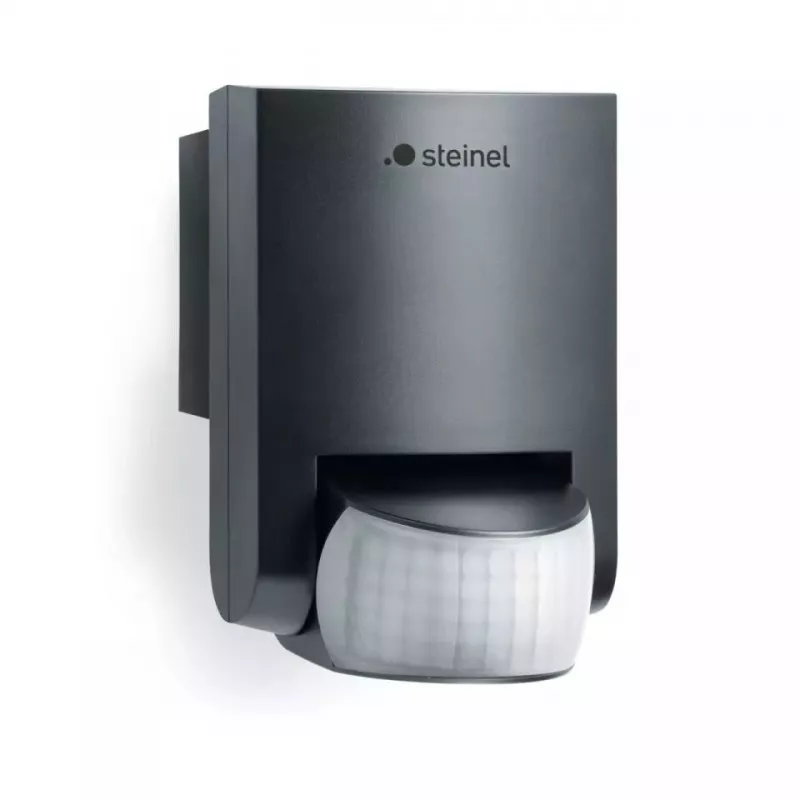

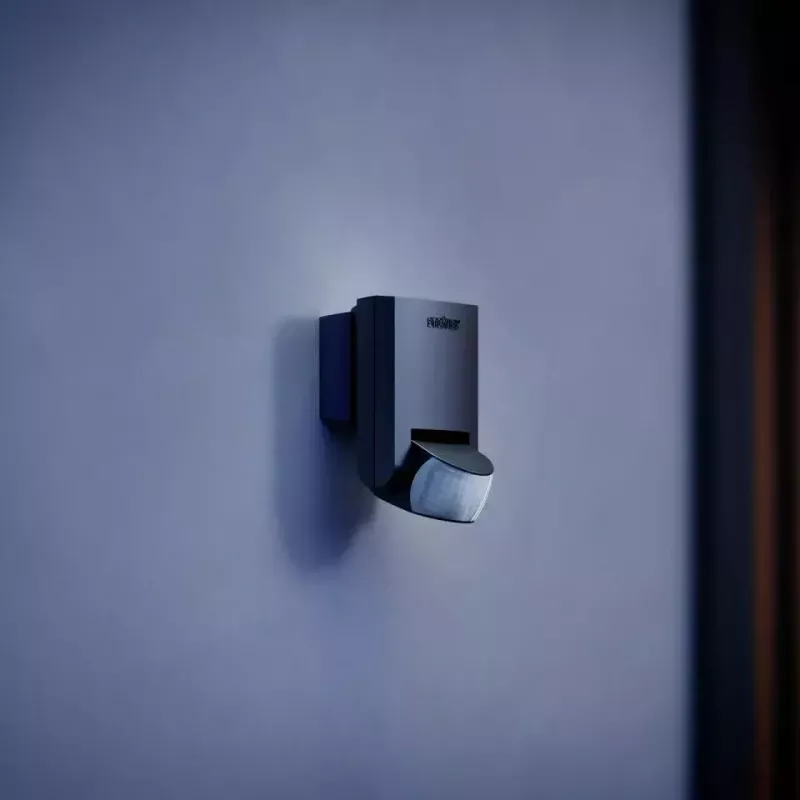

Passieve infraroodsensor STEINEL IS 130-2 bedraad wand zwart

The STEINEL IS 130-2 wired passive infrared sensor offers reliable motion detection for indoor and outdoor areas. With a compact black housing and a detection range up to 12 metres, this sensor is designed for precise monitoring of building fronts, driveways and other targeted zones. It operates from 230–240 V AC and combines tried-and-tested sensor technology with a refined, updated design.

Advantages

The IS 130-2 delivers accurate presence detection with adjustable sensitivity and a focused detection pattern suitable for targeted surveillance. Its wired connection ensures stable power and continuous operation, while the compact dimensions make it unobtrusive on walls. The black housing provides a neutral appearance that blends with many exterior and interior styles.

Suitable for (tasks / use cases)

• Monitoring building entrances and facades
• Securing driveways and garage areas
• Outdoor and indoor motion-triggered lighting
• Perimeter detection for homes and small commercial properties

Key specifications

• Type: Wired passive infrared (PIR) motion sensor
• Detection range: Up to 12 m
• Power supply: 230–240 V AC
• Colour: Black
• Dimensions (W×D×H): 78 × 87 × 110 mm
• Brand: Steinel
• MPN: 660215
• EAN: 4007841660215

How to use

Mount the IS 130-2 on a wall facing the area to be monitored at the recommended height for optimal coverage. Connect the sensor to the 230–240 V AC supply according to the installation instructions and wiring diagram. Adjust the sensitivity and detection angle as needed to avoid false triggers from irrelevant motion. After powering up, test the detection zone and fine-tune position and settings until the desired coverage is achieved.

Recommendations

Install the sensor at an appropriate height and angle for the specific site; avoid mounting where heat sources or large windows can cause false detections. For permanent reliability, use fixed wiring and follow local electrical regulations during installation.
