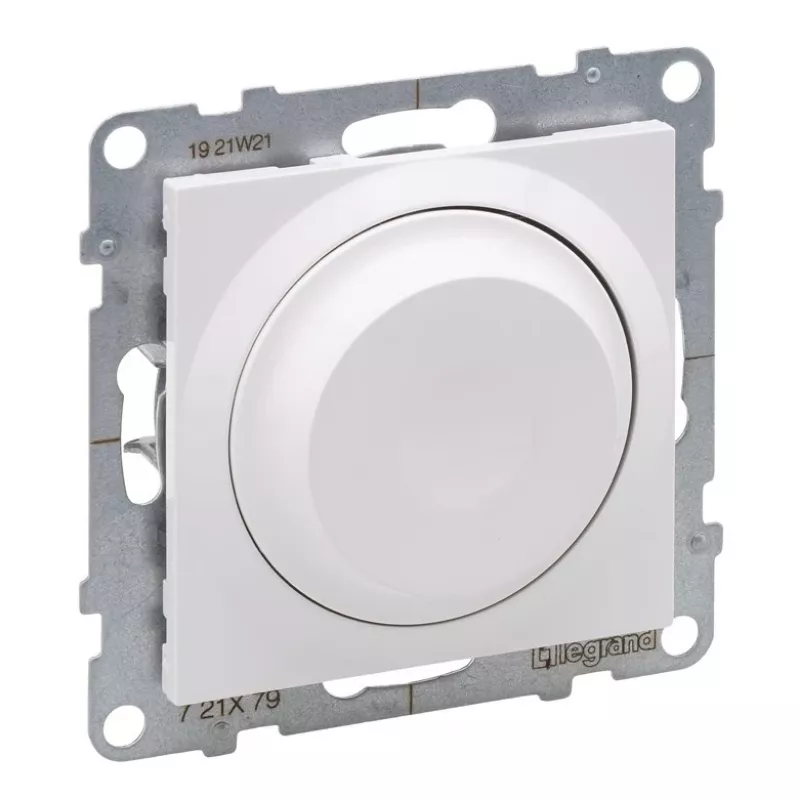

LEGRAND DIMMER 300W ALL CHARGES WHITE

The Legrand Dimmer 300W All Charges White is a universal step dimmer designed for flush-mounted installation. It provides smooth dimming control for incandescent, halogen, dimmable LED, and dimmable CFL loads up to 300W. The push-button control allows short press for on/off and long press for dimming/brightening. This dimmer is part of the Legrand Niloé series and features a white thermoplastic finish.

Advantages

Universal compatibility with multiple load types, simple push-button operation, overload and short circuit protection, and a sleek white design that blends with any decor.

Suitable for

• Residential and commercial lighting control
• Retrofitting existing flush-mounted boxes
• Dimmable LED and CFL lighting systems

Key specifications

• Product Type: Light Dimmer
• Dimmer Type: Universal Step Dimmer
• Max Power Rating: 300 W
• Operating Voltage: 230 V AC
• Frequency: 50/60 Hz
• Load Compatibility: Incandescent, Halogen, Dimmable LED, Dimmable CFL
• Control Method: Push-button
• Installation Type: Flush-mounted
• Color: White
• Series/Range: Legrand Niloé
• Connection Type: Screw terminals
• Protection Index: IP20
• Operating Temperature: 0°C to +45°C
• Material: Thermoplastic
• Standards: EN 60669-2-1
• Number of Wires: 2-wire connection
• Overload Protection: Yes
• Short Circuit Protection: Yes

Recommendations

Ensure the total connected load does not exceed 300W and that the dimmer is used with compatible dimmable bulbs. For LED loads, verify compatibility with the specific LED driver.
