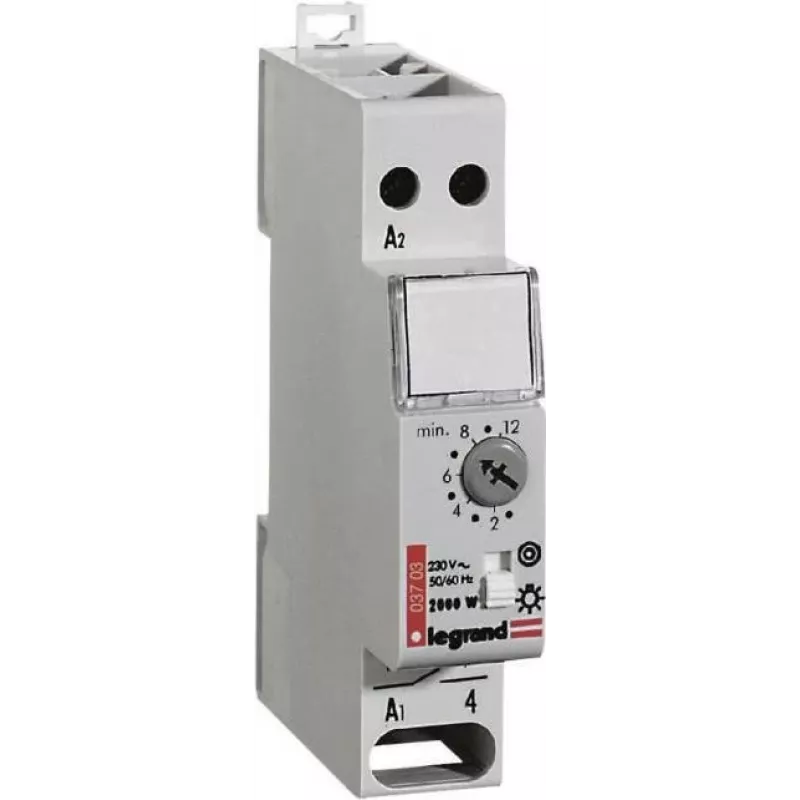

Legrand Rex900 trappenlicht-tijdschakelaar 003703, 1 module, 230V, 16A, 0,5-10 min

The Legrand Rex900 003703 staircase light timer stands out with its robust 16 A switching capacity and wide 0.5–10 minute adjustable delay, making it a reliable choice for automatic lighting control in stairwells, corridors, and communal areas. Unlike basic timers, it includes a manual override switch for permanent ON/OFF operation, giving you flexibility when needed.

Highlights

• DIN rail mounting, 1 module width (TE) for easy integration into distribution boards
• 230 V AC operating voltage, 50/60 Hz, with 1 NO contact for switching lighting circuits
• Supports incandescent/halogen loads up to 2000 W, fluorescent up to 1000 VA, and LED up to 200 W
• Manual override switch for Auto / Permanent ON / Permanent OFF modes
• IP20 protection, suitable for indoor electrical enclosures

In daily use

Install the Rex900 on a DIN rail in your electrical panel, connect the lighting circuit to the screw terminals, and set the desired time delay from 0.5 to 10 minutes. When a push button is pressed, the timer energizes the lighting for the set duration, then switches off automatically. The manual override allows you to keep lights on continuously for maintenance or off during daylight hours. Its compact 1-module design saves space, and the clear front switch makes operation straightforward.

Full specifications

• Brand: Legrand
• Model: Rex900 003703
• MPN: 003703
• EAN: 4010957037031
• Timer type: Staircase timer
• Mounting: DIN rail
• Number of modules: 1
• Operating voltage: 230 V AC
• Frequency: 50/60 Hz
• Maximum current: 16 A
• Incandescent lamp load: 2000 W
• Halogen lamp load: 2000 W
• Fluorescent lamp load (uncompensated): 1000 VA
• Fluorescent lamp load (compensated): 1000 VA
• LED lamp load: 200 W
• Time setting range: 0.5 - 10 minutes
• Contact type: 1 NO (normally open)
• Connection type: Screw terminals
• Degree of protection: IP20
• Operating temperature: -10°C to +50°C
• Power consumption (standby): 1 W
• Manual override: Yes

Final note

The Legrand Rex900 003703 combines durability and ease of use, ensuring reliable staircase lighting control for years to come.
