Lenovo 2m Mini-DisplayPort naar DisplayPort-monitorkabel

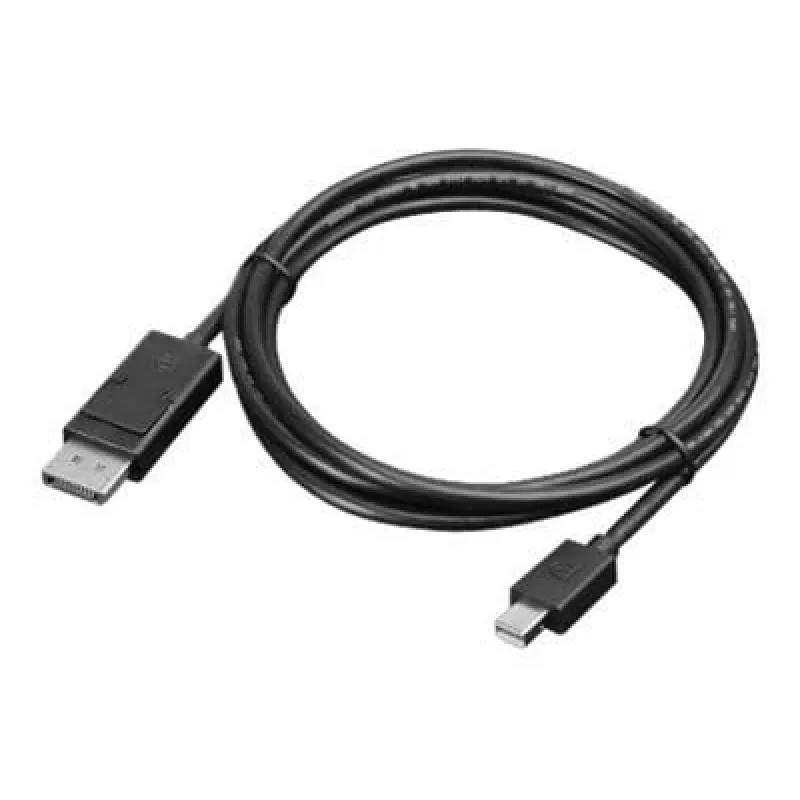

The Lenovo Mini DisplayPort to DisplayPort Cable (2 m) is designed to transmit high-definition video and audio between Mini-DisplayPort–equipped devices and DisplayPort monitors or HDTVs. It supports DisplayPort 1.2 and HDCP 1.3, offers up to 21.6 Gbps bandwidth and a maximum resolution of 4096 x 2160 at 60 Hz. The cable is 2 metres long, lightweight (approx. 83 g) and finished in black, providing a simple wired connection for home or office setups.

Advantages

This cable provides DisplayPort 1.2 compliance with HDCP 1.3 for protected high-resolution content and backward compatibility with DisplayPort 1.1a. With up to 21.6 Gbps bandwidth it supports 4K at 60 Hz, ensuring smooth video playback and accurate image reproduction. The 2 m length offers installation flexibility and the lightweight black design is unobtrusive in most environments.

Suitable for

• Connecting Mini-DisplayPort laptops (for example ThinkPad models) to DisplayPort monitors
• Driving 4K (4096 x 2160 @ 60 Hz) displays for video editing or playback
• Connecting a computer to HDMI/DP-capable HDTVs via DisplayPort input
• Office workstations requiring reliable digital video and audio transmission

Key specifications

• Length: 2 m
• Connector 1: mini DisplayPort (20-pin)
• Connector 2: DisplayPort
• Standards: DisplayPort 1.2 compliant, backward compatible with DisplayPort 1.1a
• HDCP: 1.3
• Bandwidth: up to 21.6 Gbps
• Maximum resolution: 4096 x 2160 @ 60 Hz
• Weight: 0.083 kg
• Colour: Black
• Brand/MPN/EAN: Lenovo / 0B47091 / 887037753150

How to use

Plug the mini DisplayPort end into the Mini-DisplayPort output of your laptop or device and connect the DisplayPort end to the monitor or TV DisplayPort input. Ensure both devices are powered on, then select the correct input on the monitor or TV. The cable supports automatic detection of supported resolutions; if necessary, configure the display settings in your operating system to set resolution and refresh rate (for example 4096 x 2160 @ 60 Hz).

Recommendations

For best results use this cable for direct connections without adapters where possible. Avoid sharp bends near the connectors and route the cable to prevent strain. When using 4K@60Hz ensure both source and display support DisplayPort 1.2 and HDCP 1.3.
