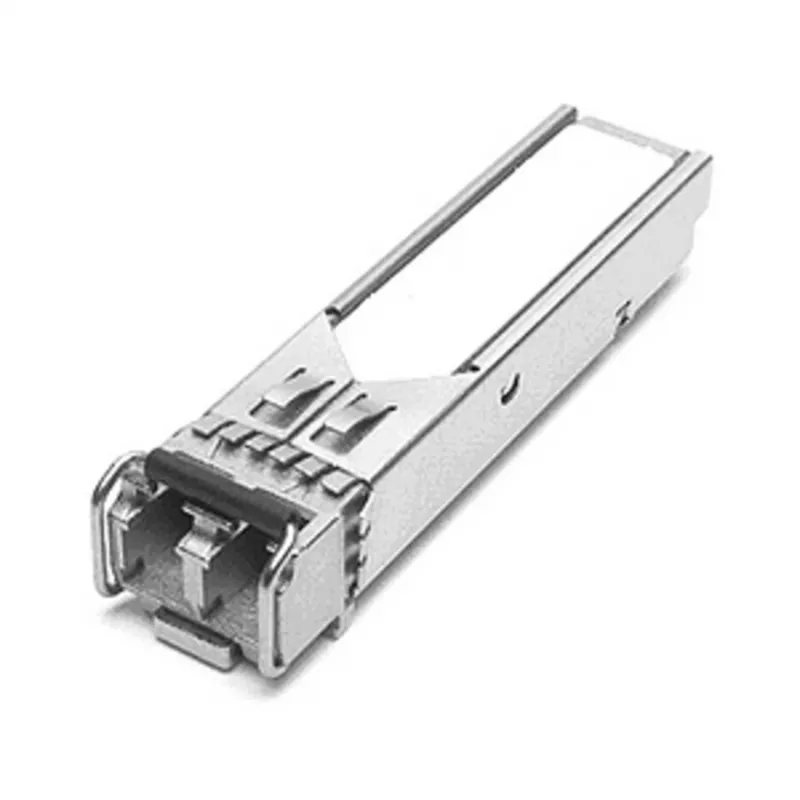

Lenovo Brocade SFP+ transceivermodule 10 GigE 10GBase-SR

The Lenovo Brocade SFP+ Transceiver Module is a high-performance, hot-pluggable optical transceiver designed for 10 Gigabit Ethernet connectivity. It enables reliable, high-speed data transmission over multi-mode fiber (MMF) networks, making it an ideal solution for data centers, enterprise networks, and storage area networks (SANs).

Advantages

This transceiver module offers exceptional performance and reliability, with support for 10 Gbps data rates and compliance with IEEE 802.3ae standards. Its hot-swappable design allows for easy installation and maintenance without disrupting network operations. The module features Digital Diagnostics Monitoring (DDM) for real-time performance tracking, ensuring optimal network uptime and simplified troubleshooting.

Suitable for

• Data center interconnects and server connectivity
• Enterprise network backbone and aggregation
• Storage area network (SAN) links
• High-performance computing environments

Key specifications

• Device Type: Transceiver module
• Form Factor: SFP+
• Interface: 10GBase-SR
• Data Rate: 10 Gbps
• Fiber Type: Multi-mode fiber (MMF)
• Connector Type: LC/PC duplex
• Wavelength: 850 nm
• Max Transfer Distance (OM3): 300 m
• Max Transfer Distance (OM4): 400 m
• Hot-Swappable: Yes
• Digital Diagnostics Monitoring (DDM): Yes
• Power Consumption: <1 W
• Operating Temperature: 0 to 70 °C

Recommendations

For optimal performance, pair this transceiver with compatible Brocade or Lenovo switches and HBAs. Ensure the use of high-quality multi-mode fiber cables (OM3 or OM4) to achieve maximum transfer distances.
