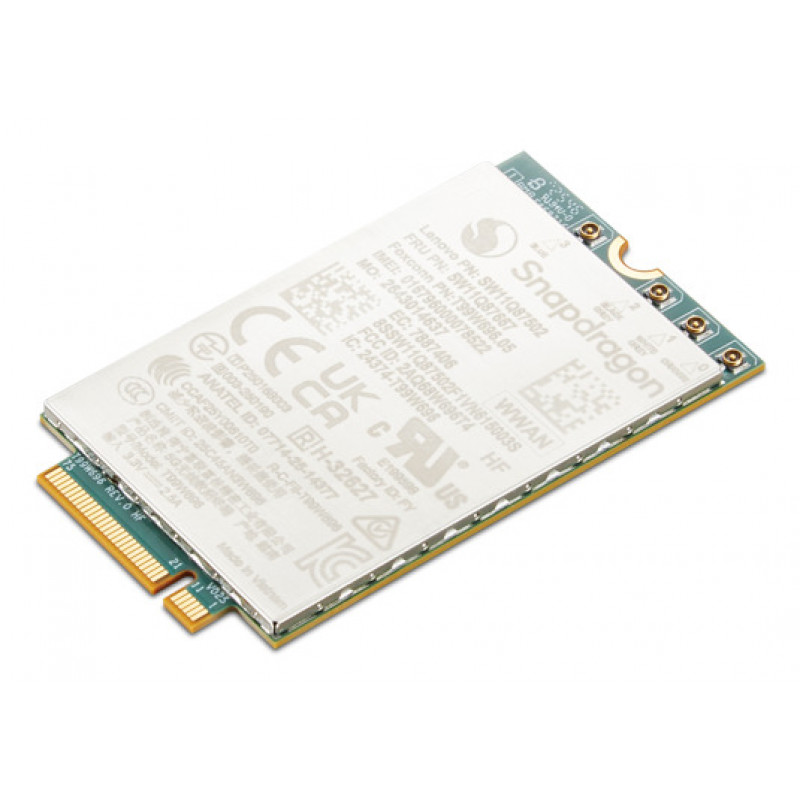

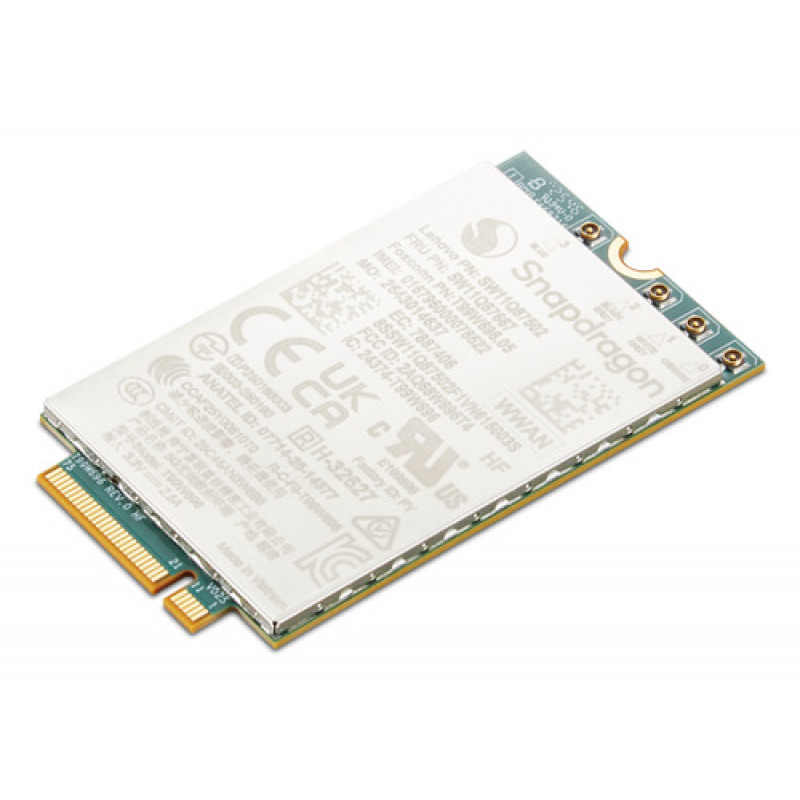

LENOVO FOXCONN SDX61 SUB6 5G M.2 WWAN (T14S G7)

Field technicians and mobile professionals rely on seamless connectivity in remote locations. The Lenovo Foxconn SDX61 Sub-6 GHz 5G M.2 WWAN module delivers high-speed cellular access for compatible ThinkPad laptops, ensuring uninterrupted data transfer and communication even beyond Wi-Fi coverage.

Key specifications

• 5G NR Sub-6 GHz, 4G LTE, and 3G HSPA+ support
• Qualcomm Snapdragon X61 chipset
• M.2 Key B 3042 form factor with PCIe Gen 3 interface
• Maximum download speed up to 4.7 Gbps, upload up to 2.5 Gbps
• Nano-SIM (4FF) and eSIM support
• Dual MHF4 antenna connectors
• GNSS support: GPS, GLONASS, BeiDou, Galileo
• Operating temperature range: -10°C to 55°C

Why choose it

This module integrates the latest 5G technology into your ThinkPad, providing ultra-fast speeds and low latency for demanding tasks. Its compact M.2 design ensures easy installation, while eSIM capability offers flexibility for global connectivity without physical SIM swaps.

Ideal use cases

• Remote field work requiring reliable high-speed internet
• Business travel with secure, always-on connectivity
• IoT and edge computing applications in mobile environments
• Backup connectivity for critical operations

Good to know

Compatible with Lenovo ThinkPad T14s Gen 7, P14s Gen 4, X1 Carbon Gen 11, and other select models. Driver support for Windows 10/11 and Linux (driver dependent).
