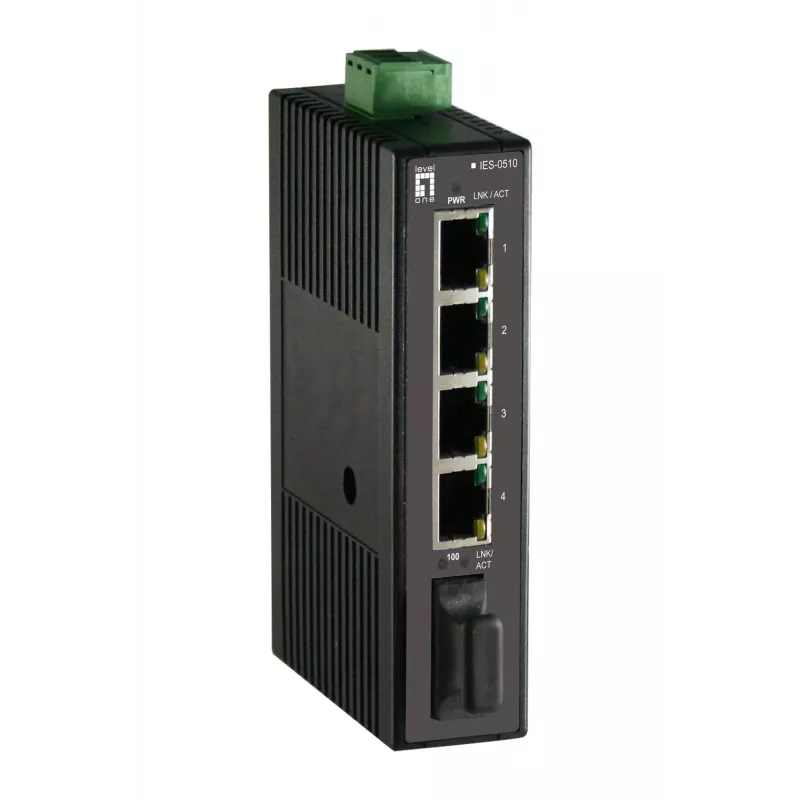

LevelOne 5-poorts Fast Ethernet industriële switch, DIN-rail, 1 x SC multimode vezel, -20 °C tot 70 °C

LevelOne 5-poorts Fast Ethernet industriële switch, DIN-rail, 1 x SC multimode vezel, -20 °C tot 70 °C
LevelOne 5-poorts Fast Ethernet industriële switch, DIN-rail, 1 x SC multimode vezel, -20 °C tot 70 °C
230,50 €
LevelOne IES-0510 Industry Ethernet Switch provides 4 ports of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC fiber to enable high speed network at mission-critical environment. This device is designed to be mounted on an industry standard DIN-rail, plus the clearly visible status LEDs provid... Lees meer
Voorraad 10 Code 111270 Merk LEVELONE Model IES-0510 Garantie 2 jaar

Bezorging & retourneren

Verwachte bezorgdatum vrijdag, oktober 23
Je blijft op de hoogte via ons uitgebreide trackingsysteem
Betaalopties
BetaalkaartVisaMastercardPayPalApple PayGoogle PayBankoverschrijving
LevelOne IES-0510 Industry Ethernet Switch provides 4 ports of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC fiber to enable high speed network at mission-critical environment. This device is designed to be mounted on an industry standard DIN-rail, plus the clearly visible status LEDs provide simple monitoring of port link activity.

Cost Effective
This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit) temperature that offers optimal suitability for industrial applications at low cost while maintaining all components built to withstand harsh environment applications without compromise reliability and stability.

Safety
With UL60950 standard complied that gives basic protection against electric shock, fire spread from within, ignition and burning, current circuit hazardous under normal and fault condition. As well as set of compliances to meet many EMC, isolation, vibration and shock standards.

Plug & Play
This device is designed for the demanding industrial environments at businesses in need of instant connectivity with no setup or configure required, truly plug and play.

LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, 1 x SC Multi-Mode Fiber, -20°C to 70°C. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2048 entries. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Belangrijkste kenmerken
  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 4
  • 10BASE-T, 100BASE-TX
  • MAC address table: 2048 entries
Specificaties
Aantal basis-switching RJ-45 Ethernet-poorten
4
Aantal geïnstalleerde SFP+-modules
0
Aantal geïnstalleerde SFP-modules
0
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Bedrijfstemperatuur (T-T)
-10 - 60 °C
Breedte
26 mm
Breedte verpakking
180 mm
Certificering
ISO9001 FCC Part 15 EN61000-6-4 EN55022 EN61000-3-2 EN61000-3-3 EN61000-6-2 EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 IEC60068-2-6 Fc IEC60068-2-27 Ea IEC60068-2-32 Ed
Diepte
70 mm
Diepte verpakking
79 mm
Full duplex
Yes
Geharmoniseerd Systeem (HS)-code
85176990
Gemiddelde tijd tussen storingen (MTBF)
1071085 h
Gewicht
200 g
Gewicht verpakking
460 g
Glasvezel-ethernetbekabelingstechnologie
100BASE-FX
Glasvezelconnector
SC
Hoogte
110 mm
Hoogte verpakking
221 mm
Ingangsspanning
12 - 48 V
International Protection (IP)-code
IP30
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX
Land van herkomst
Taiwan
Led-indicatoren
Activity, Link, Speed
MAC-adrestabel
2048 entries
Materiaal behuizing
Plastic
Netwerkstandaarden
IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Opslagtemperatuur (T-T)
-25 - 85 °C
Pakketbuffergeheugen
0.384 MB
Pakketdoorschakelsnelheid (10 Mbit/s)
14880 pps
Pakketdoorschakelsnelheid (100 Mbit/s)
148810 pps
Power over Ethernet (PoE)
No
Productkleur
Black
Quality of Service (QoS)-ondersteuning
Yes
Relatieve luchtvochtigheid tijdens gebruik (H-H)
5 - 95%
Snelstartgids
Yes
Store-and-forward
Yes
Stroomverbruik (max.)
4.3 W
Type basis-switching RJ-45 Ethernet-poorten
Fast Ethernet (10/100)
Type switch
Unmanaged
Type verpakking
Box
Veiligheid
UL60950-1
Vezeltype
Multi-mode
