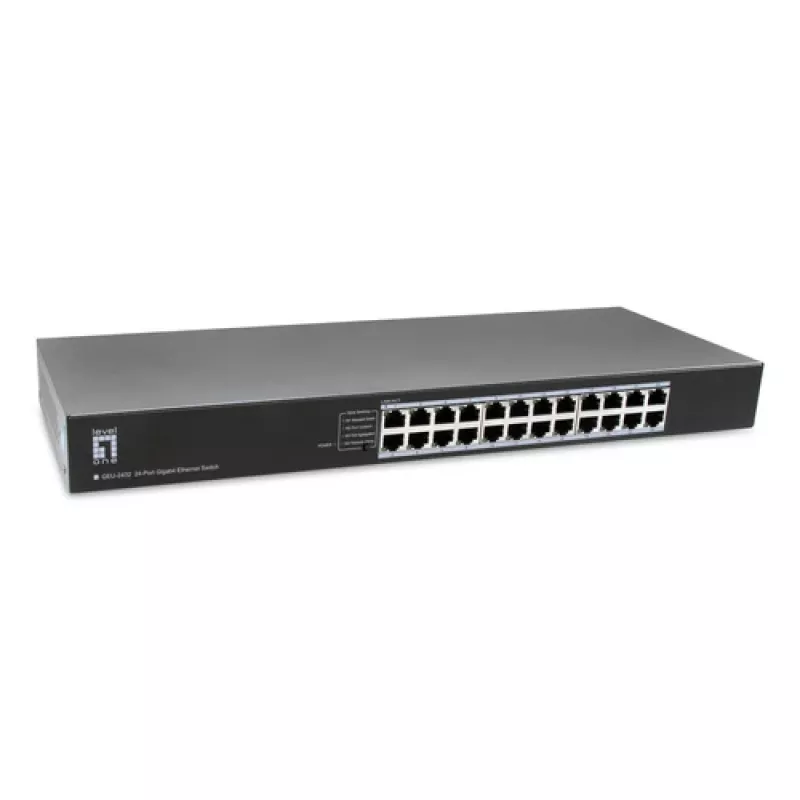

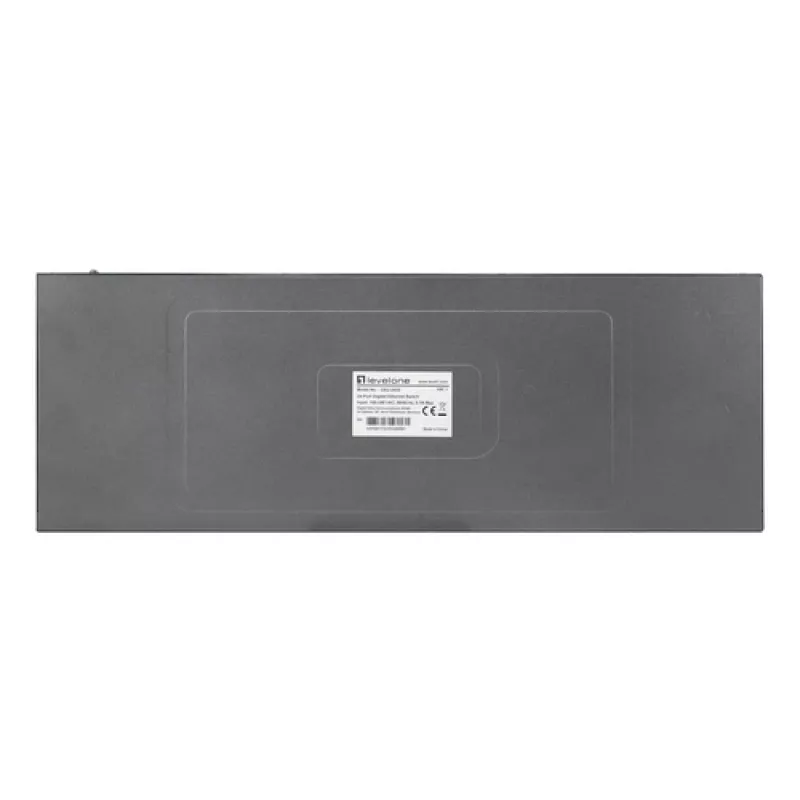

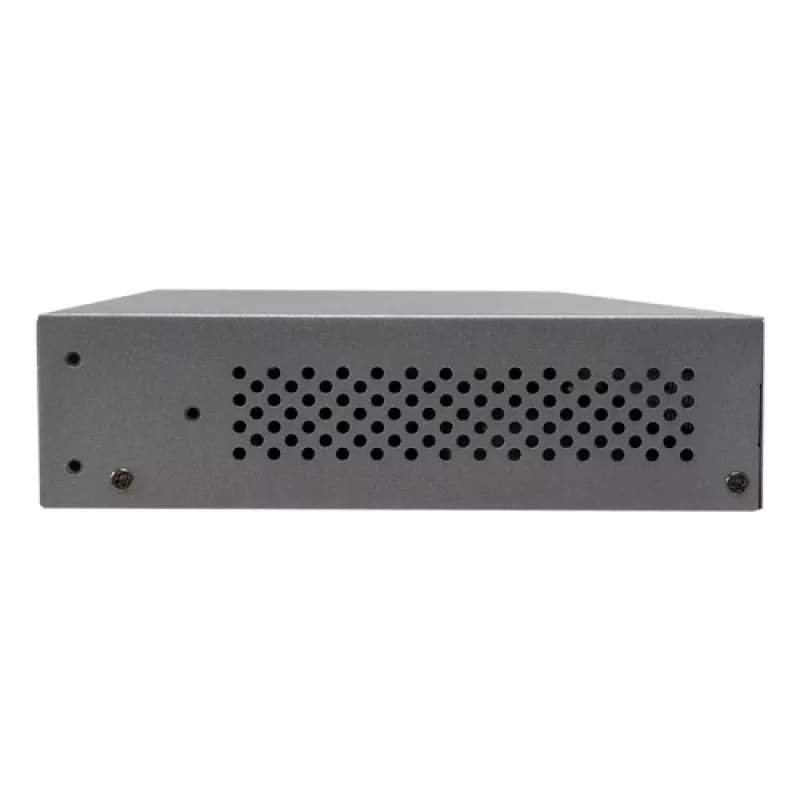

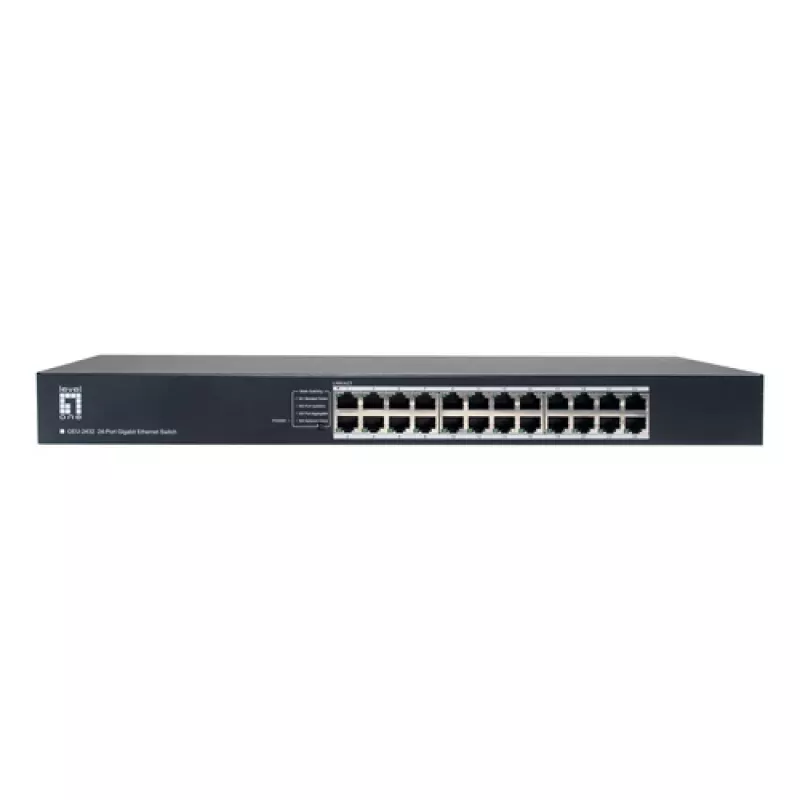

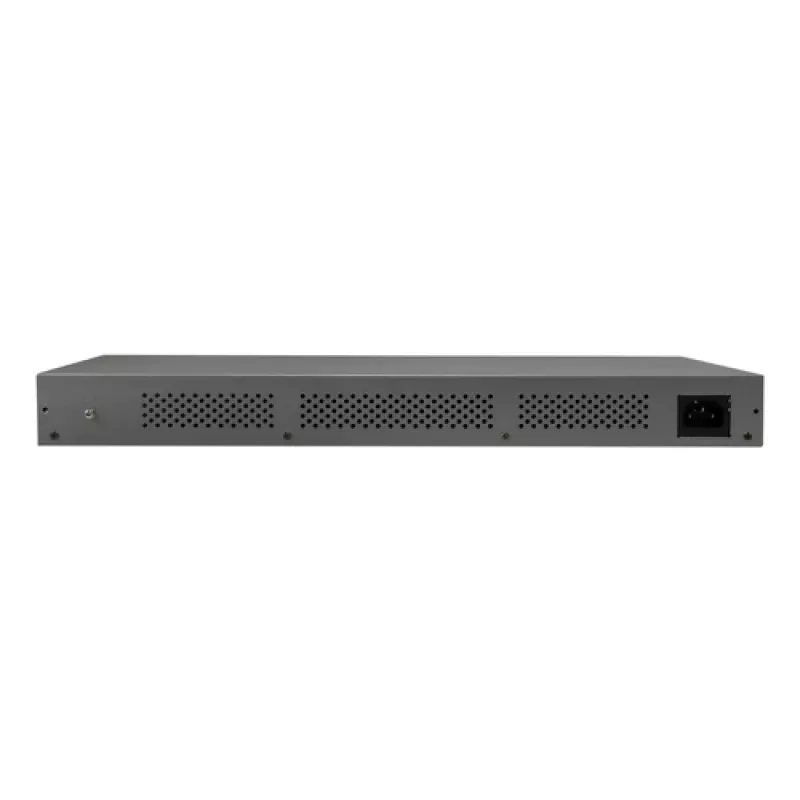

LevelOne GEU-2432 24-poorts Gigabit Ethernet switch, 4-mode DIP switch, 19 inch rackmount, unmanaged, metalen behuizing

The LevelOne GEU-2432 is a high-performance 24-port Gigabit Ethernet switch designed for demanding network environments where reliability and flexibility are essential. This unmanaged switch delivers plug-and-play connectivity for small to medium-sized businesses, while its 4-mode DIP switch allows you to tailor performance to specific network needs. Housed in a robust metal chassis, it is built for professional 19-inch rack installation.

Advantages

With 24 Gigabit ports, this switch provides high-speed data transfer of up to 1000 Mbps per port, making it ideal for bandwidth-intensive applications like video streaming, VoIP, and large file transfers. The integrated 4-mode DIP switch offers four distinct operating modes (Standard, Flow Control Off, VLAN, and Extend) to optimize performance for different scenarios, such as isolating traffic or extending network reach. The fanless design ensures silent operation, making it suitable for office environments where noise reduction is important.

Suitable for

• Small and medium-sized business networks
• Home offices with multiple wired devices
• Server rooms and network cabinets requiring rack-mountable equipment
• Surveillance systems with multiple IP cameras
• Educational institutions and retail spaces

Key specifications

• 24 x 10/100/1000 Mbps Gigabit Ethernet ports
• Unmanaged, plug-and-play operation
• 4-mode DIP switch: Standard, Flow Control Off, VLAN, Extend
• Switching capacity: 48 Gbps
• Forwarding rate: 35.7 Mpps
• MAC address table: 8K entries
• Jumbo frame support up to 9K bytes
• Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
• Fanless design for silent operation
• Internal AC power supply (100-240V)
• Max power consumption: 15W
• LED indicators for Power and Link/Act
• 19-inch rackmountable (1U) metal housing

Recommendations

For best performance, use Cat5e or Cat6 Ethernet cables to ensure full gigabit speeds. When using the 'Extend' mode, note that the link speed may be reduced to 10 Mbps but allows cable lengths up to 250 meters, ideal for long-distance deployments.
