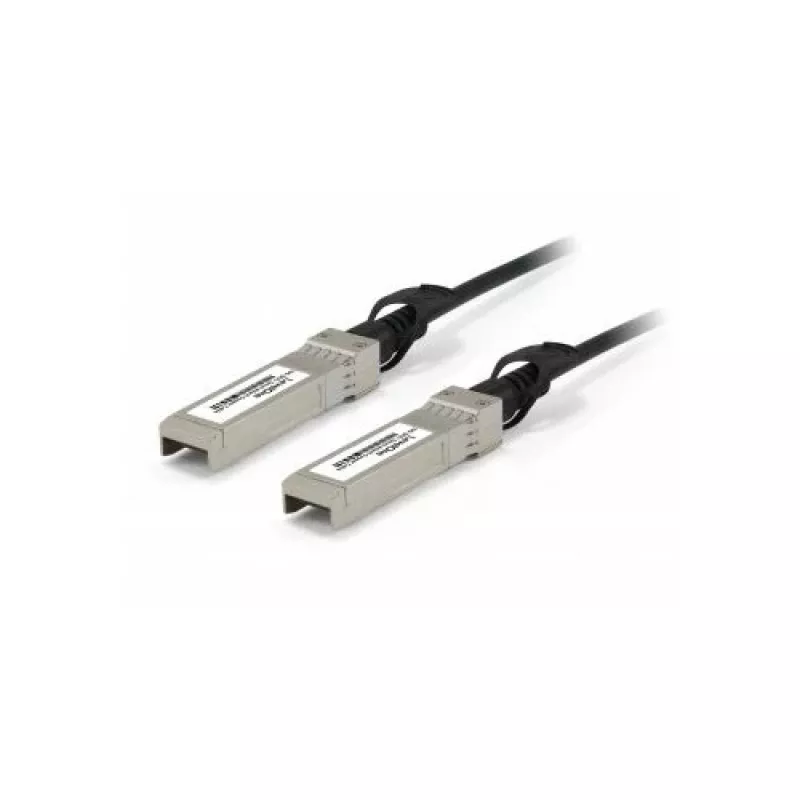

LevelOne SFP+ Direct Attach koperkabel 10Gbps Twinax 1m passief DAC

In high-density data centre and enterprise networking environments, reliable short-range links are essential. This LevelOne SFP+ Direct Attach Copper Cable delivers a low-latency 10 Gbps connection between switches, servers, and storage devices over a 1-metre distance. Designed for top-of-rack deployments, it provides a straightforward, cost-effective alternative to fibre optic solutions without compromising performance.

Key specifications

• Data rate: 10 Gbps
• Cable length: 1 metre (3.3 feet)
• Connectors: SFP+ to SFP+
• Cable type: Twinax (passive copper)
• Impedance: 100 Ohm
• AWG: 30AWG
• Hot-pluggable: Yes
• Power consumption: <0.1W per end
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Humidity: 0% to 95% non-condensing
• Compliance: RoHS, CE, FCC
• Vendor compatibility: Multi-vendor compatible

Why choose it

With its passive design, this cable offers an energy-efficient and cost-effective solution for very short reaches, eliminating the need for transceivers on both ends. It provides reliable performance with minimal latency, making it ideal for top-of-rack to server connections. The robust twinax construction ensures excellent signal integrity over the specified distance, while the low power draw contributes to overall energy savings in the data centre.

Ideal use cases

• Connecting servers to top-of-rack switches in data centres
• Interconnecting network devices within a rack
• Storage area network (SAN) links
• High-performance computing clusters

Good to know

This cable is designed for 10 Gigabit Ethernet, Fibre Channel, and InfiniBand networks. It is also backward compatible with lower speeds, offering flexibility in mixed-speed environments. The passive DAC design means no additional power is required, and the hot-pluggable SFP+ connectors allow for quick installation and replacement. With universal compatibility, it works seamlessly across major networking hardware vendors.
