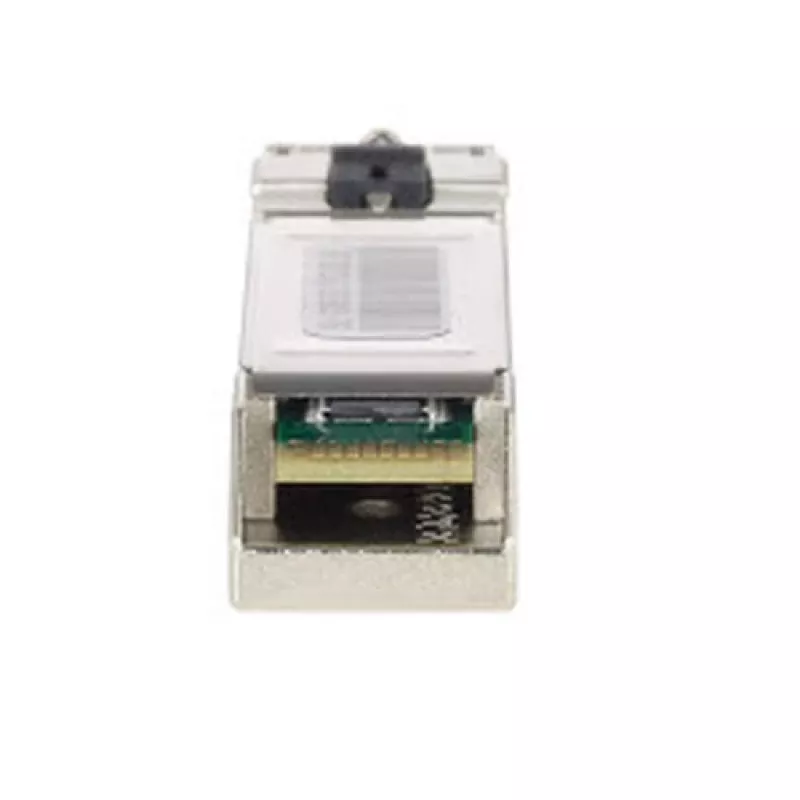

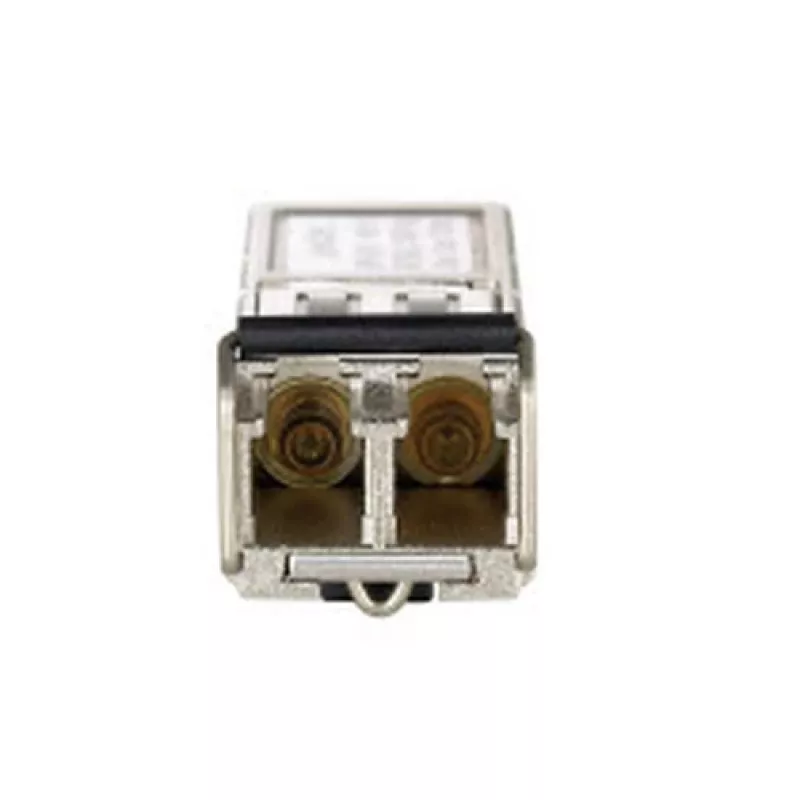

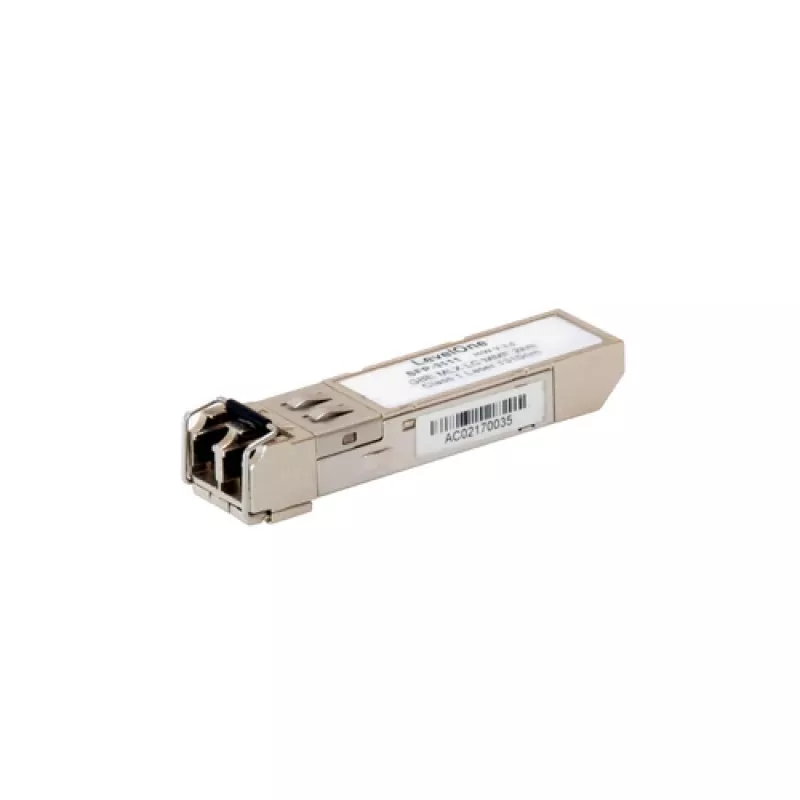

LevelOne SFP-transceiver 1.25Gbps MM duplex LC 1310nm 2km

The LevelOne SFP Transceiver (1.25Gbps, Multi-Mode, Duplex LC, 1310nm, 2km) is a high-performance, hot-swappable small form-factor pluggable transceiver designed for Gigabit Ethernet applications. It provides reliable data transmission over multi-mode fiber at distances up to 2 km, making it ideal for enterprise networks, data centers, and telecommunications.

Advantages

This transceiver offers cost-effective connectivity with low power consumption (<1W) and supports Digital Diagnostic Monitoring (DDM) for real-time performance monitoring. Its hot-swappable design allows for easy installation and maintenance without disrupting network operations.

Suitable for

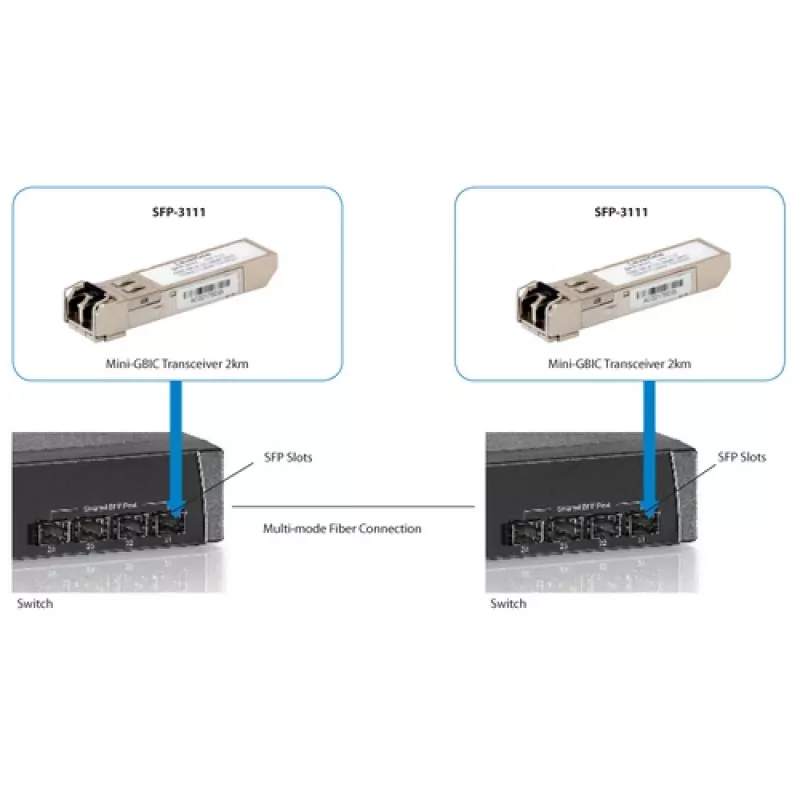

• Gigabit Ethernet links in LANs and MANs
• Fiber-to-the-desk applications
• Data center interconnects
• Telecommunications equipment

Key specifications

• Transceiver Type: SFP
• Data Rate: 1.25 Gbps
• Fiber Type: Multi-Mode Fiber (MMF)
• Max Distance: 2 km
• Wavelength: 1310 nm
• Connector Type: Duplex LC
• Standard Compliance: IEEE 802.3z
• DDM/DOM Support: Yes
• Hot-Swappable: Yes
• Power Supply: 3.3 V
• Power Consumption: <1 W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 95% non-condensing

Recommendations

For optimal performance, pair this transceiver with compatible LevelOne switches or media converters. Ensure fiber cables meet OM1/OM2/OM3 specifications for best results.
