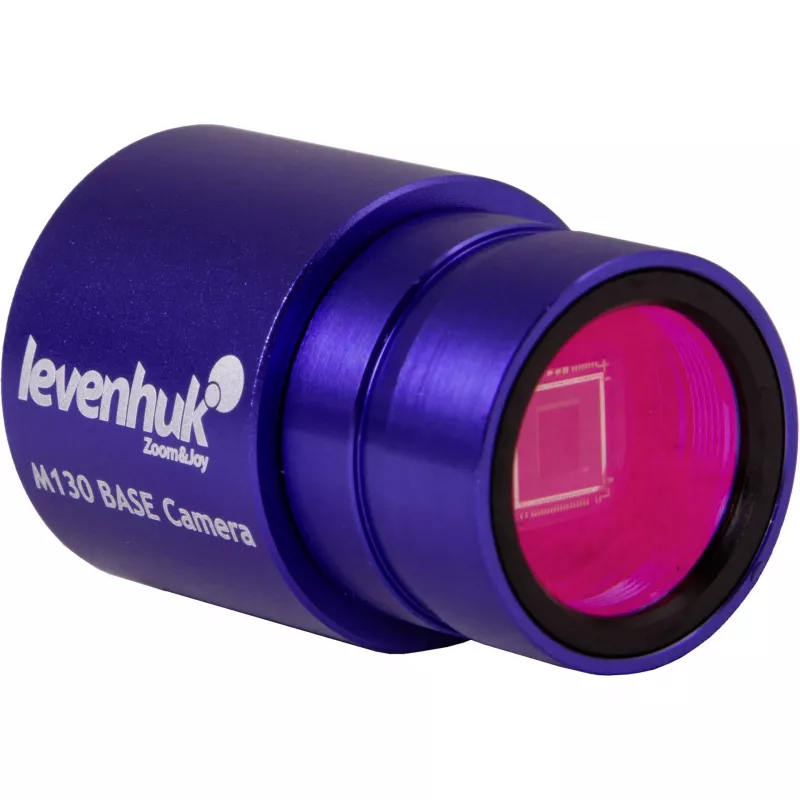

Levenhuk M130 BASE microscoop-digitale camera 1.3 MP USB 2.0

The Levenhuk M130 BASE Microscope Digital Camera is a high-quality CMOS camera designed for biological and stereo microscopes. With a 1.3 MP sensor and USB 2.0 interface, it delivers clear images and smooth video at up to 7.5 fps. The camera comes with a metal housing and includes adapters for 23.2 mm, 30 mm, and 30.5 mm eyepiece tubes, ensuring compatibility with a wide range of microscopes.

Advantages

This camera offers automatic and manual exposure control, white balance adjustment, and built-in IR filter for accurate color reproduction. It supports image capture in JPG, BMP, PNG, TIF formats and video recording in WMV, AVI, H.264. The included Levenhuk ToupView software provides advanced image processing, measurement, and video recording capabilities.

Suitable for

• Biological microscopy
• Stereo microscopy
• Educational and laboratory use
• Documentation and analysis

Key specifications

• Sensor: 1/4 inch CMOS, 1.3 MP (1280x1024)
• Pixel size: 3.6x3.6 µm
• Frame rate: 7.5 fps at full resolution
• Interface: USB 2.0
• Mounting diameter: 23.2 mm (adapters for 30 mm, 30.5 mm included)
• Spectral range: 380-650 nm (built-in IR filter)
• Exposure: Automatic / Manual
• White balance: Automatic / Manual
• Software: Levenhuk ToupView
• Compatible with Windows, macOS, Linux
• Power: via USB cable
• Body material: Metal

Recommendations

For best results, use with a microscope that has a standard 23.2 mm eyepiece tube or use the included adapters. Ensure your computer meets the system requirements for the software.
