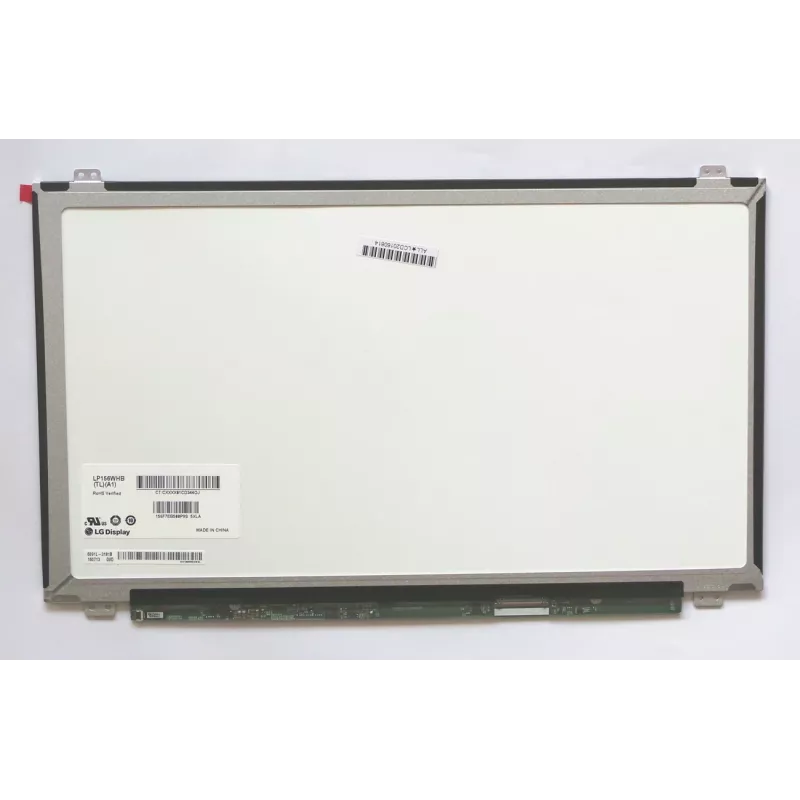

LG 15,6 inch WXGA HD 60Hz mat 40-pins LVDS laptop lcd-paneel (rechter connector)

This 15.6-inch LG display panel delivers crisp WXGA HD resolution (1366 x 768) with a 60Hz refresh rate, ideal for everyday computing. The matte anti-glare surface reduces reflections, ensuring comfortable viewing in bright environments.

Overview

Designed as a replacement laptop screen, this LG panel features a 40-pin LVDS connector positioned on the right side (when viewed from the back). It uses TFT-LCD technology with LED backlighting, providing a brightness of 220 cd/m² and a contrast ratio of 500:1. The TN panel offers a response time of 8 ms and a 45% NTSC color gamut.

What stands out

• Matte anti-glare finish for reduced eye strain
• WXGA HD resolution for sharp text and images
• Standard 40-pin LVDS interface for broad compatibility
• Right-side connector orientation for specific laptop models

Technical details

• Display diagonal: 15.6 inches
• Display resolution: 1366 x 768 pixels
• HD type: WXGA
• Native aspect ratio: 16:9
• Panel type: TN
• Display technology: TFT-LCD
• LED backlight: Yes
• Display brightness: 220 cd/m²
• Response time: 8 ms
• Contrast ratio (typical): 500:1
• Viewing angle, horizontal: 45°
• Viewing angle, vertical: 40°
• Pixel density: 100 ppi
• Power consumption (max): 3.5 W
• Product colour: Black

Our verdict

A reliable replacement panel for laptops requiring a 15.6-inch WXGA screen with a right-side 40-pin LVDS connector. Its matte finish and decent brightness make it suitable for everyday use.
