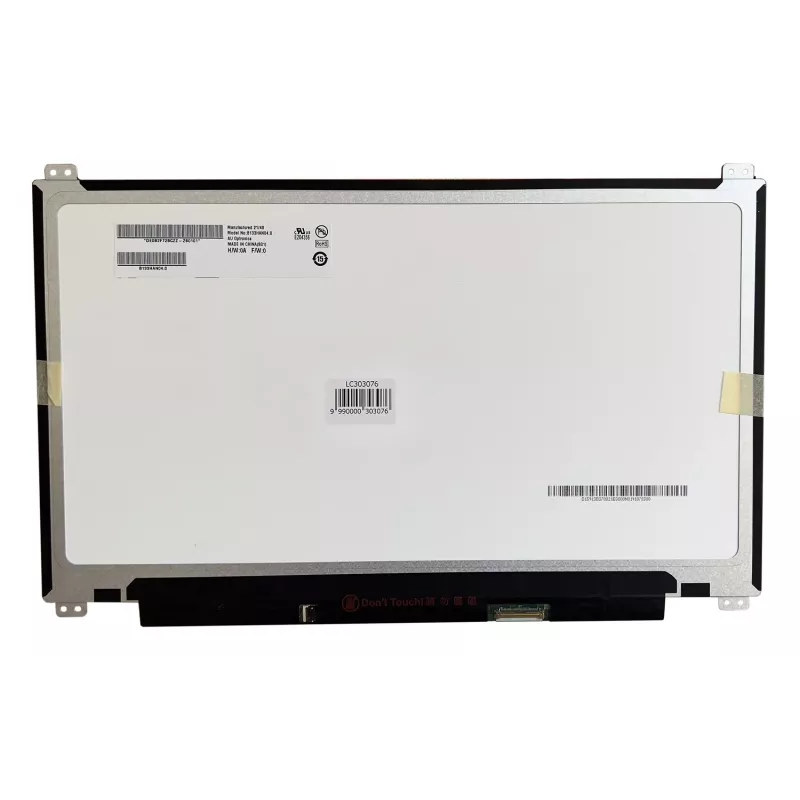

LG Display 13,3 inch, 1920x1080, 60Hz, mat, 40-pins, rechts, IPS

This LG LC303076 panel stands apart with its right-side 40-pin eDP connector, a detail that simplifies cable routing in many laptop chassis. It delivers a crisp Full HD picture on a 13.3-inch IPS screen with a matte finish to reduce glare.

Highlights

• 13.3-inch IPS panel with 1920 x 1080 resolution
• Matte anti-glare surface for comfortable viewing
• 40-pin eDP connector positioned on the right
• 60 Hz refresh rate and LED backlight

In daily use

The IPS technology provides wide viewing angles and consistent colours, while the matte coating keeps reflections at bay. The right-side connector makes this panel a direct fit for laptops designed with that layout, and the standard 3.3V eDP interface ensures compatibility with common display controllers.

Full specifications

• Display size: 13.3 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel technology: IPS
• Refresh rate: 60 Hz
• Surface treatment: Matte (anti-glare)
• Aspect ratio: 16:9
• Backlight type: LED
• Data connector: eDP (Embedded DisplayPort)
• Connector pins: 40-pin
• Connector position: Right (when viewed from back)
• Pixel density: ~166 PPI
• Viewing angle: Wide viewing angle
• Display colours: 16.7 million
• Technology: TFT active matrix
• Voltage: 3.3V

Final note

Verify the connector position and mounting holes before ordering, as laptop panels are not universal.
