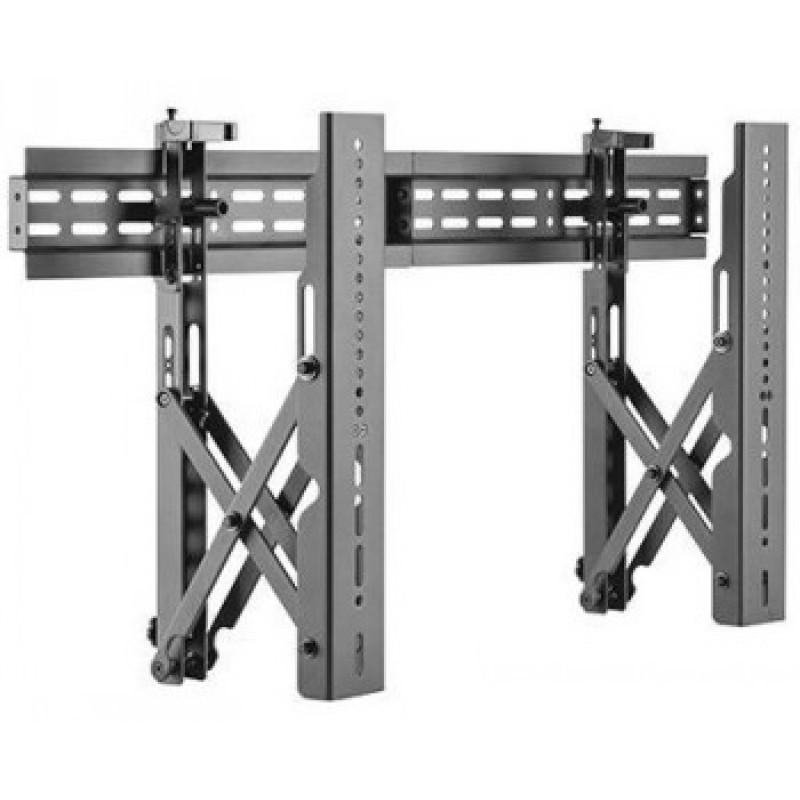

LH-GROUP pop-out video-wandsteun max. 45 kg 800x400

Pop-out service access sets this video wall mount apart from fixed alternatives. The LH-GROUP OY LVW02-48T lets a single technician pull a 40"–70" display forward up to 200 mm for cable swaps, alignment, or maintenance—without unmounting the screen. A 6-point micro-adjustment system locks in seamless panel alignment across multi-screen walls, while the steel frame carries up to 45 kg with confidence.

Highlights

• Pop-out mechanism extends display up to 200 mm from the wall for fast servicing
• Supports 40"–70" displays up to 45 kg, VESA 200x200 to 800x400
• 6-point micro-adjustment for fine depth, level, and height alignment
• Integrated cable management and padlock-compatible anti-theft design
• Landscape or portrait orientation, 60 mm slim profile when retracted

In daily use

Installers appreciate the push-to-open release: a gentle press pops the mount outward, giving full rear access without removing the display. The steel construction resists flex, keeping heavy panels stable in 24/7 digital signage. For video walls, the micro-adjustment points let you align adjacent screens perfectly, eliminating visible gaps or steps. Cables route through the frame, staying tidy even when the mount is extended.

Full specifications

• Product type: Pop-out video wall mount
• Mounting type: Wall mount (stud mounting)
• Maximum weight capacity: 45 kg
• VESA compatibility: 200x200 to 800x400 mm
• Recommended screen size: 40"–70"
• Material: Steel
• Colour: Black
• Distance to wall (retracted): 60 mm
• Distance to wall (max): 200 mm
• Adjustment: 6-point micro-adjustment (depth, level, height)
• Orientation: Landscape or portrait
• Cable management: Integrated
• Anti-theft: Padlock compatible
• Number of displays supported: 1

Final note

For integrators and AV teams, the LVW02-48T turns display maintenance from a two-person job into a one-person task—saving time on every service call.
