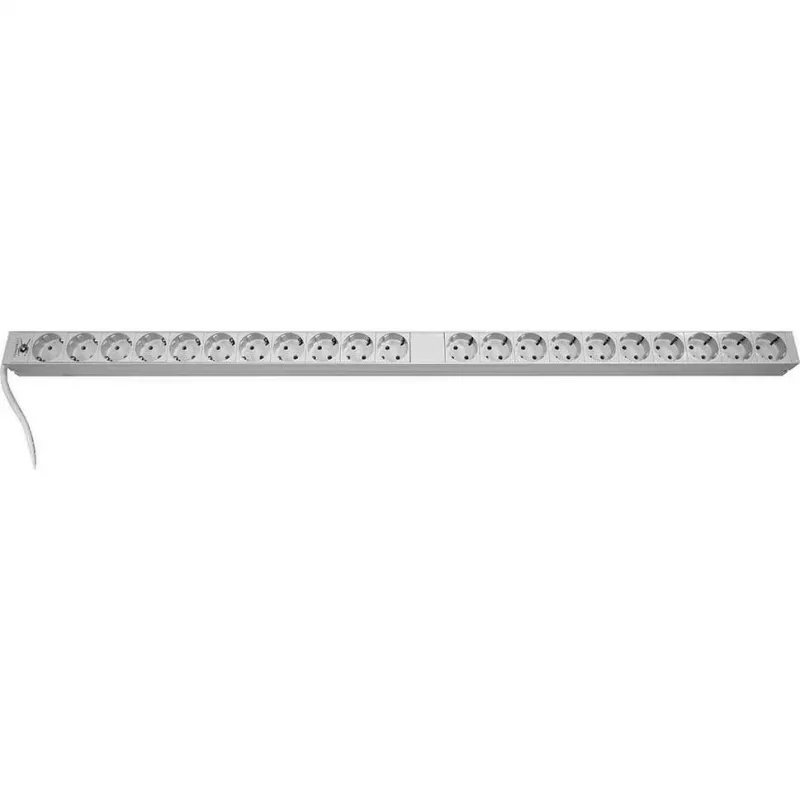

Liebernetz 21-voudige verticale rack-PDU met Schuko-stopcontacten, 16A, lichtgrijs 90LNSDL21S

21 Schuko outlets in a vertical 0U form factor deliver 3680W of power distribution for high-density server racks.

Overview

The Liebernetz 90LNSDL21S is a vertical power distribution unit engineered for 19-inch server enclosures. It provides 21 Schuko CEE 7/3 sockets along a slim aluminium housing, making efficient use of the rack's side space without consuming horizontal U positions. The unit connects via a Schuko CEE 7/7 plug and supports a 230V AC supply at 16A, yielding a maximum load of 3680W. A built-in circuit breaker safeguards connected equipment, while an LED indicator confirms power status. The light grey finish integrates with standard rack aesthetics.

What stands out

• 21 Schuko outlets in a single vertical strip
• 0U mounting for zero rack space consumption
• 16A current rating with 3680W maximum power
• Integrated circuit breaker for overload protection
• LED power indicator for quick status checks

Technical details

• Outlet type: Schuko CEE 7/3
• Input plug: Schuko CEE 7/7
• Nominal voltage: 230V AC
• Nominal current: 16A
• Frequency: 50/60 Hz
• Colour: Light grey
• Housing material: Aluminium
• Mounting: Vertical, 0U

Our verdict

An efficient and robust PDU for server racks that need many outlets without sacrificing rack units.
