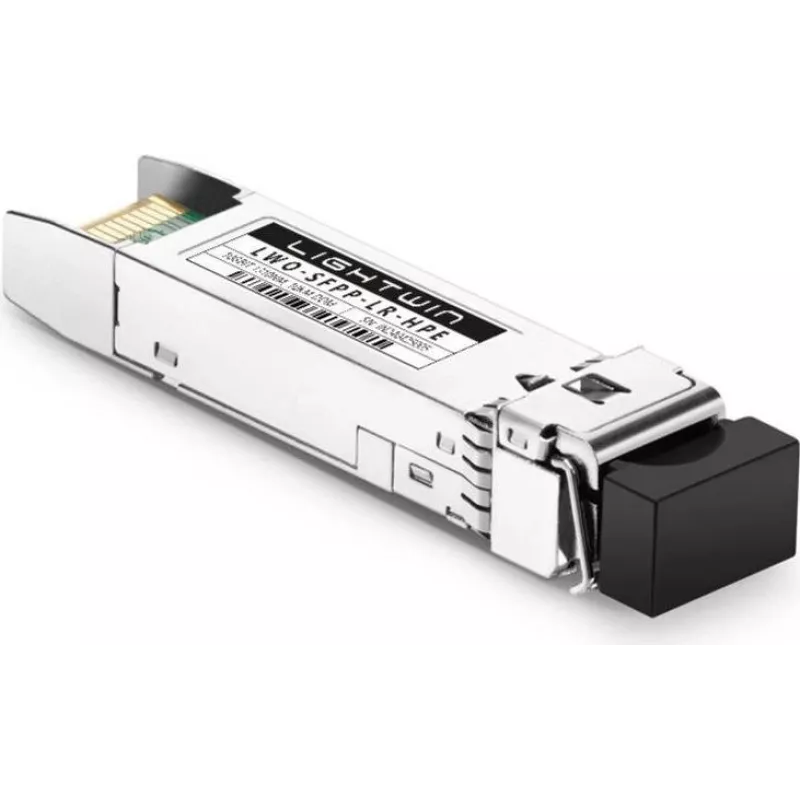

Lightwin 10G SFP+ LR transceiver, 1310nm, 10km, DDM, LC duplex, singlemode, HP Aruba compatibel (LWO-SFPP-LR-HPE)

With a reach of up to 10 kilometers over standard singlemode fiber, this SFP+ module delivers true 10 Gigabit Ethernet performance in a compact, hot-pluggable form factor. The 1310nm DFB laser and LC duplex interface ensure reliable, high-bandwidth connectivity for enterprise and data center links.

Overview

The Lightwin LWO-SFPP-LR-HPE is a 10GBASE-LR SFP+ transceiver engineered for HP Aruba switches and routers, while remaining fully MSA compliant for broad interoperability. It operates at 10 Gbps over OS1/OS2 singlemode fiber, making it ideal for long-distance backbone connections, campus networks, and storage area networks. Digital Diagnostic Monitoring (DDM) provides real-time monitoring of temperature, optical power, and laser bias current, simplifying network management and troubleshooting.

What stands out

• 10 km maximum reach on singlemode fiber – perfect for inter-building or campus links.
• DDM/DOM support for proactive performance monitoring and fault isolation.
• Hot-pluggable SFP+ design enables easy installation and replacement without network downtime.
• Low power consumption (<1.0 W) reduces energy costs and thermal load.
• Commercial temperature range (0°C to 70°C) suits standard data center environments.

Technical details

• Transceiver type: SFP+
• Data rate: 10 Gbps
• Wavelength: 1310 nm
• Connector: LC Duplex
• Fiber type: Singlemode (OS1/OS2)
• Standard: 10GBASE-LR
• Laser: DFB
• DDM/DOM: Yes
• Compatibility: HP Aruba, MSA Compliant
• Power supply: 3.3 V
• Power consumption: <1.0 W
• Operating temperature: 0°C to 70°C
• Compliance: MSA, RoHS

Our verdict

For network architects seeking a dependable, cost-effective 10G LR solution with HP Aruba compatibility, the Lightwin LWO-SFPP-LR-HPE delivers excellent value without compromising on performance or monitoring capabilities.
