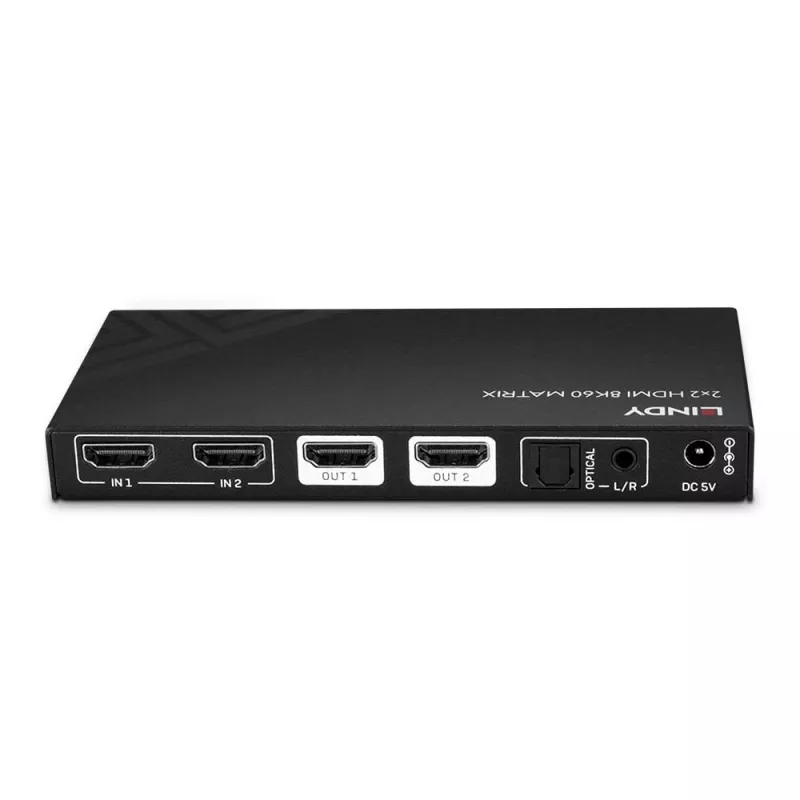

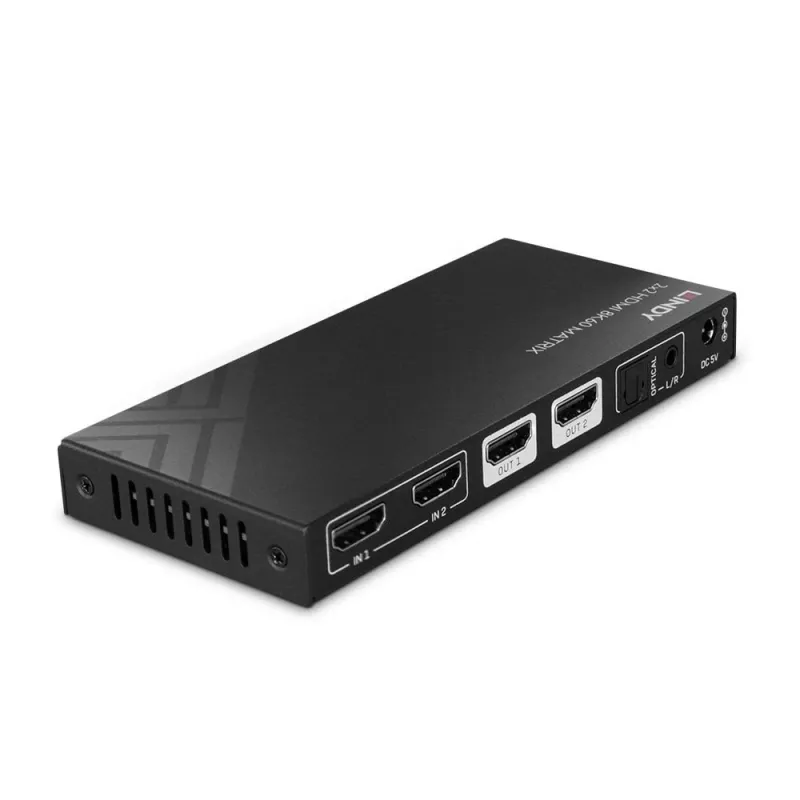

Lindy 38313 matrix-switch AV-matrix-switch 6,2 W

The Lindy 38313 AV matrix switcher is a compact 2x2 HDMI 8K60 matrix for routing video and audio from two HDMI sources to two HDMI displays. The metal-housed unit supports up to 8K (7680×4320@60Hz) and 4K@120Hz signals, offers HDR support and HDCP 2.3 compatibility, and includes analogue and optical audio outputs for flexible audio integration.

Advantages

This matrix delivers high-bandwidth HDMI distribution (40 Gbit/s) in a small, black metal form factor with low power consumption (6.2 W). Dual HDMI inputs and outputs enable switching or simultaneous output between two sources and two displays. Built-in EDID management and HDCP 2.3 support ensure optimal resolution and compatibility with modern 8K sources. A 3.5 mm analogue audio port plus optical audio pass-through provide separate audio output options alongside HDMI audio. The unit can be controlled using front panel buttons or the supplied remote for quick switching in professional and residential environments.

Suitable for

• Small meeting rooms and training spaces
• Residential home theatre systems
• Retail digital signage and point-of-sale displays
• Trade show booths and product demonstrations

Key specifications

• Model: Lindy 38313
• Matrix configuration: 2×2 HDMI
• Maximum resolution: 7680 × 4320 @ 60Hz (8K60); 3840 × 2160 @ 120Hz (4K120)
• Bandwidth: 40 Gbit/s
• HDCP: 2.3
• Audio outputs: HDMI passthrough, 3.5 mm analogue, optical (S/PDIF)

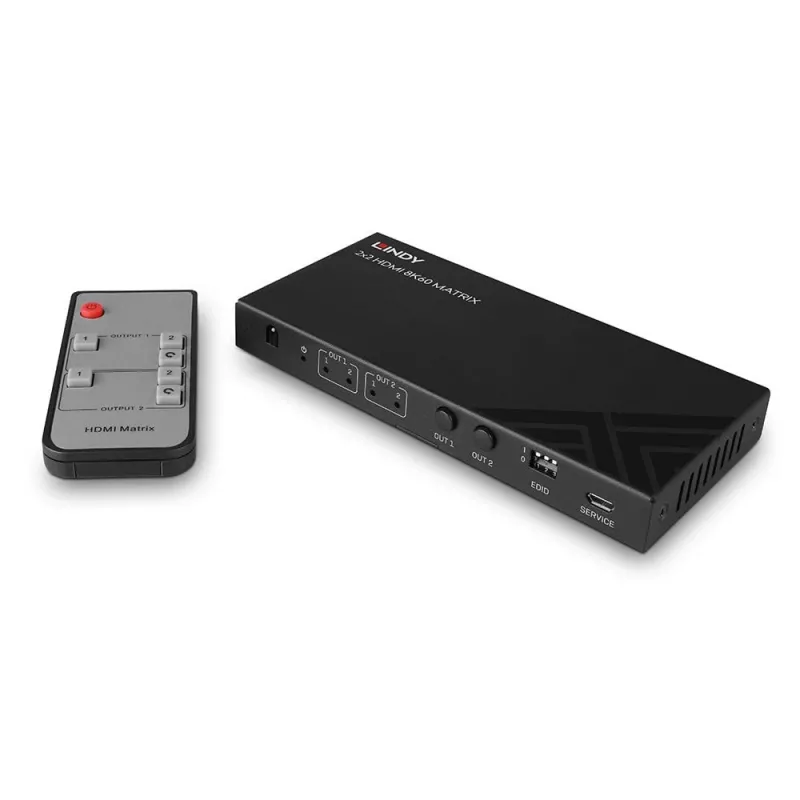

• Control: Front panel buttons, IR remote
• Power: 6.2 W, micro‑USB connector
• Housing: Compact black metal

How to use

Connect up to two HDMI source devices to the input ports and up to two HDMI displays to the output ports. Use the front panel buttons or the included remote control to select routing modes (switch between sources, route each source to a specific display, or output the same source to both displays). Configure EDID settings as needed using the integrated EDID management switch to ensure connected displays receive the appropriate resolution and colour information. For separate audio, connect analogue speakers to the 3.5 mm port or an optical audio device to the S/PDIF output.

Recommendations

For reliable 8K performance, use high-speed HDMI 2.1 certified cables and verify source and display compatibility with HDCP 2.3. Place the unit in a ventilated area and use the supplied remote for frequent switching when running presentations or demonstrations.
