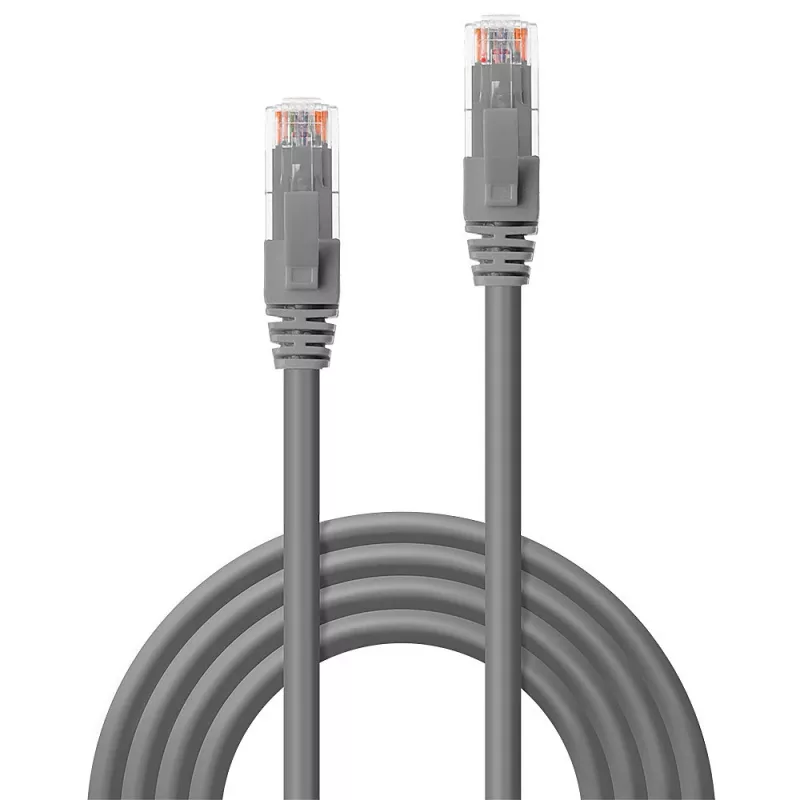

Lindy 45410 netwerkkabel grijs 30 m Cat6 U/UTP (UTP)

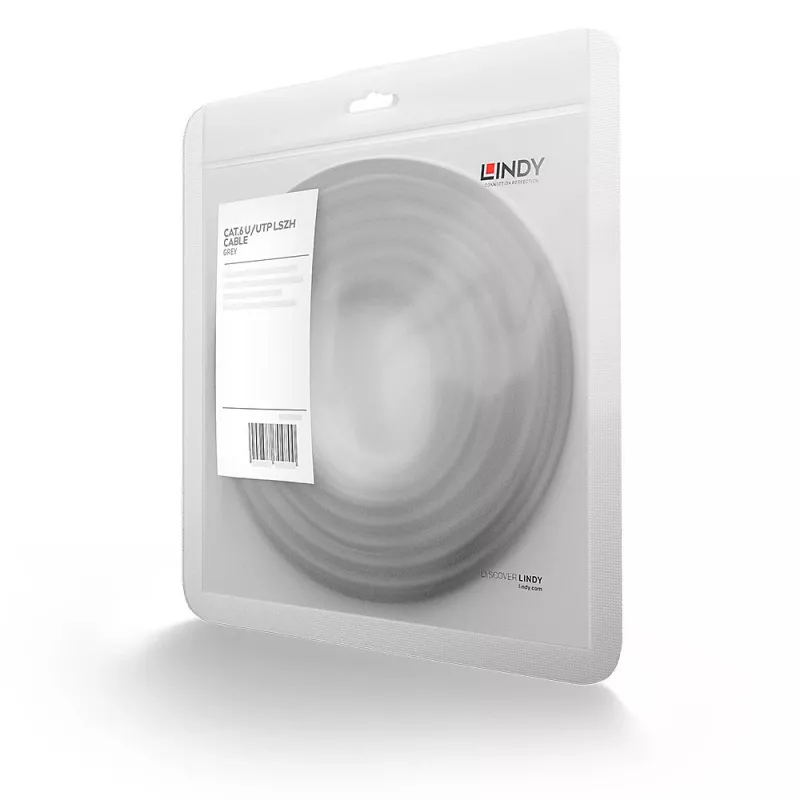

Cat.6 U/UTP LSZH networking cable supporting bandwidths up to 250 MHz, designed for Ethernet applications up to 1GBase-T. The 30 m grey Lindy Cat.6 UTP Premium cable is manufactured and tested to ISO/IEC 11801 and packaged individually in a polybag. The unshielded U/UTP design provides the necessary electrophysical performance for Gigabit Ethernet while the LSZH (low smoke zero halogen) sheath reduces smoke and eliminates toxic halogen emissions, making it suitable for use in public spaces.

Advantages

The cable supports operating frequencies up to 250 MHz and is suitable for Gigabit Ethernet thanks to optimized NExT and FExT electrical parameters despite being unshielded. Gold-plated contacts provide corrosion-resistant, reliable connections over time. A snagless strain relief design protects the connector latch during installation and removal. The LSZH jacket minimizes smoke and toxic emissions in case of fire.

Suitable for

• Wired Gigabit Ethernet (1GBase-T) connections
• Permanent cabling in offices, data closets and server rooms
• Public buildings and other areas where low-smoke, halogen-free cables are required
• Home networking and multimedia streaming over a 30 m run

Key specifications

• Category: Cat.6 U/UTP
• Bandwidth: up to 250 MHz
• Standards: up to 1GBase-T
• Conductor/connector: RJ45 with gold-plated contacts
• Sheath: LSZH (low smoke zero halogen)
• Length: 30 m
• Colour: Grey
• Compliance: manufactured and tested to ISO/IEC 11801

How to use

Route the cable between network devices ensuring bends respect the cable's minimum bend radius. Insert the RJ45 connectors into compatible Ethernet ports until the latch clicks. Use the snagless strain relief to avoid catching or damaging the connector latch during pulling through conduits or through cable trays. For permanent installations, secure the cable with appropriate cable management accessories and avoid crushing or kinking.

Recommendations

For best performance, keep cable runs within recommended distances for Gigabit Ethernet, avoid running parallel to high-voltage power lines, and test installed links with a qualified cable tester to verify performance and compliance.
