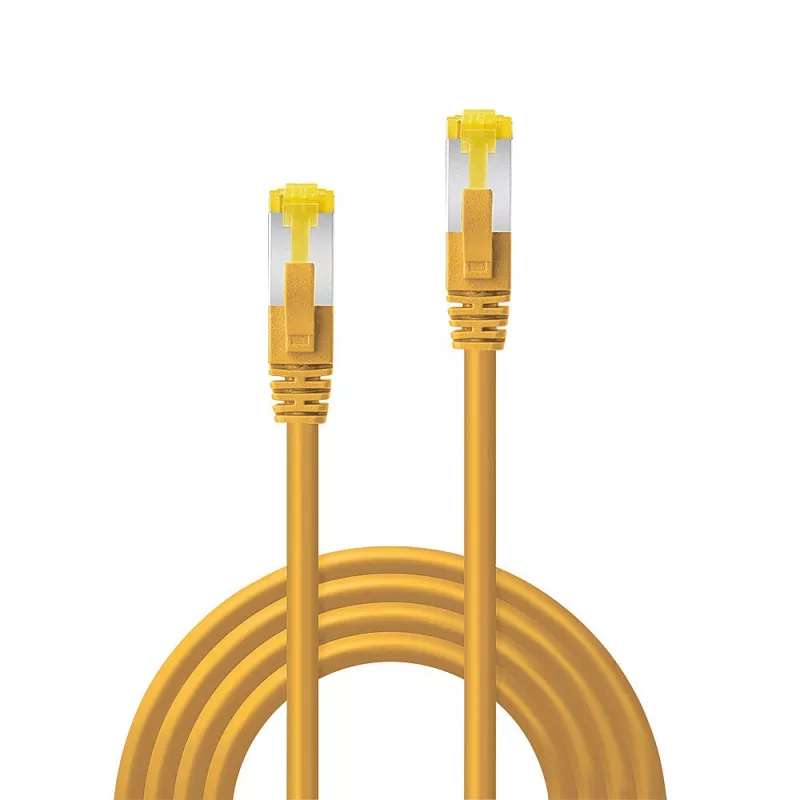

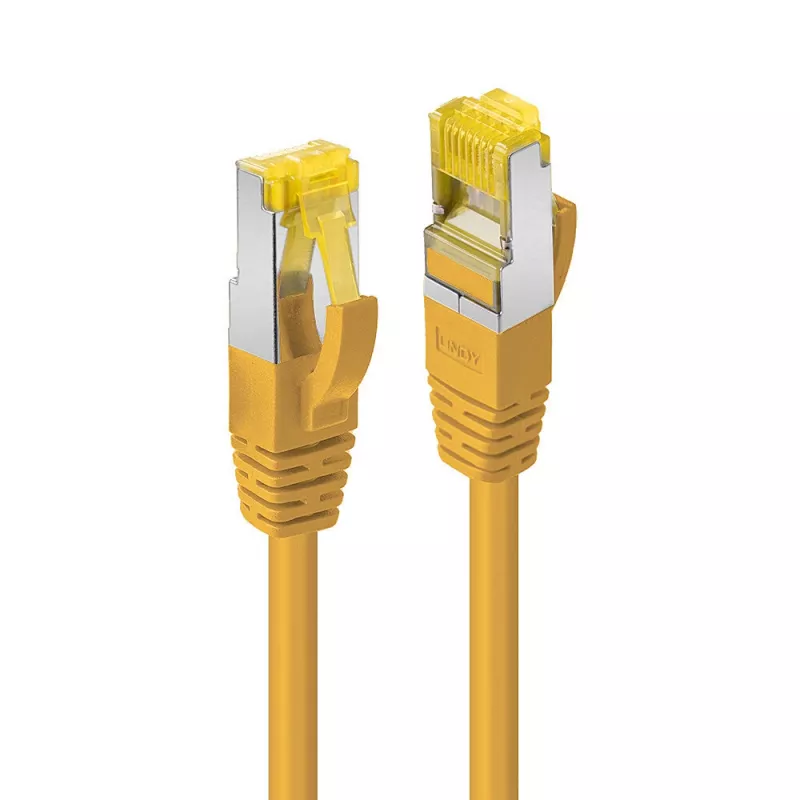

Lindy 47669 Netwerkkabel geel 20 m Cat7 S/FTP (S-STP)

Cat.7 S/FTP network cable supports bandwidths up to 600 MHz and is designed for Ethernet standards up to 10GBase-T. The cable features total braided shielding with individual pair foil shielding (S/FTP) and is suitable for use in data centres, server rooms and rack-mounted network or control cabinets. Connectors are gold plated and the plug design includes a snagless strain relief to protect the latch during installation and removal. Cables are individually packaged in a polybag and are produced and tested according to ISO/IEC 11801.

Advantages

The S/FTP construction provides strong protection against electromagnetic interference and crosstalk, supporting stable transmission at frequencies up to 600 MHz. Gold-plated contacts reduce the risk of corrosion and ensure long-term reliable connections. The snagless strain relief reduces the chance of connector damage during repeated plugging and unplugging. The cable uses a Cat.7-grade conductor and insulation designed to meet high-speed network requirements while using RJ-45 plugs compatible with common network equipment.

Suitable for

• Data centre and server room patching
• Rack-mounted network and control cabinets
• High-speed LAN connections up to 10GBase-T
• Environments requiring enhanced shielding against interference

Key specifications

• Cable category: Cat.7 S/FTP (braided overall + foil shield per pair)
• Frequency support: up to 600 MHz
• Connector type: RJ-45 to RJ-45
• Ethernet standard: up to 10GBase-T
• Contacts: gold plated
• Design: snagless strain relief
• Standards: manufactured and tested to ISO/IEC 11801
• Packaging: individual polybag
• Available lengths: 0.3 m, 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 5 m, 7.5 m, 10 m, 15 m, 20 m, 30 m
• Available colours: Black, Blue, Grey, Red, White, Yellow, Green

How to use

Choose the required cable length and colour for your installation. Insert the RJ-45 plug fully into the corresponding network port until the latch clicks, taking care not to bend the cable excessively near the connector. Use the snagless strain relief to protect the latch when routing the cable through racks or conduits. For cable runs in a rack or cabinet, avoid tight bends and maintain separation from high-voltage power cables to minimise interference.

Recommendations

For optimal performance, follow installation best practices: keep bend radius within manufacturer limits, avoid running parallel to mains power cables for long distances, and use appropriate cable management in racks and cabinets. Although the product uses Cat.7 cable material, it is terminated with RJ-45 plugs; the cable marking may read "Cat.6A S/FTP patch cords with 600MHz raw cable." Choose the length that matches your layout to minimise excess cable that could affect airflow in racks.
