LogiLink 19 inch wandbehuizing ECO 6U zwart (W06C55B)

Small network installations often lack floor space for a traditional rack. The LogiLink 19" Wall Mount Cabinet ECO 6U solves this by mounting directly on the wall, keeping your patch panels and active equipment secure and organized without taking up valuable room.

Who is it for

Ideal for offices, retail spaces, and small server rooms where space is at a premium. It accommodates standard 19-inch equipment up to 6U in height.

Main features

• 6U height, 450 mm usable depth, 600 mm width
• Black (RAL 9005) powder-coated steel construction
• Tempered glass front door with lock
• Removable, lockable side panels
• Top and bottom cable entry with brush strips

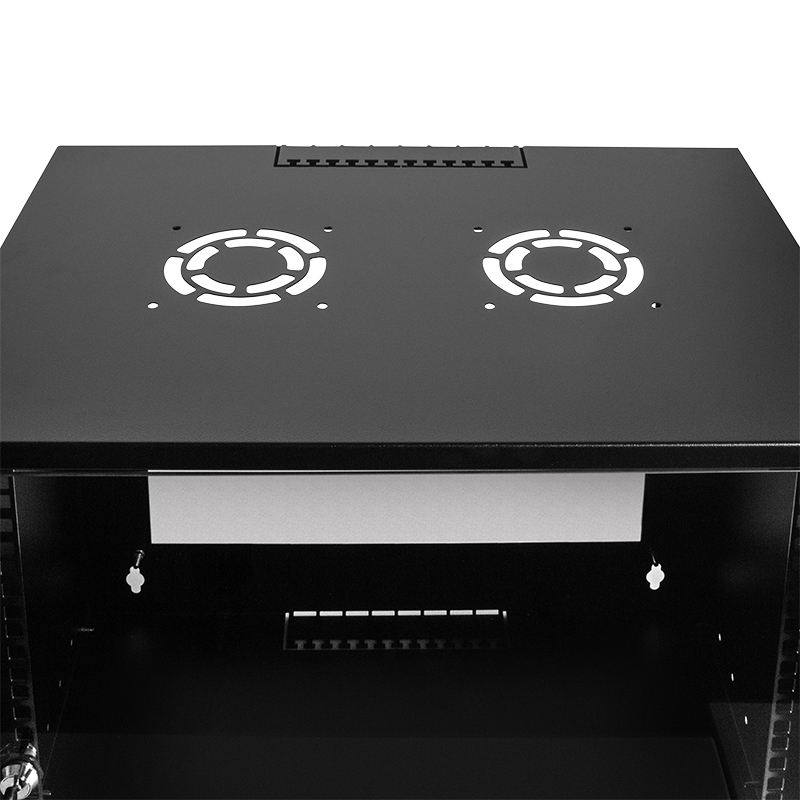

• Passive ventilation with fan mounting provision on top
• 60 kg load capacity
• Wall-mountable design

Specifications

• Rack type: Wall mount cabinet
• Rack standard: 19-inch
• Rack units: 6U
• External dimensions (W x H x D): 600 x 368 x 450 mm
• Material: SPCC cold rolled steel
• Finish: Electrostatic powder coated
• Front door: Tempered glass with lock
• Side panels: Removable, lockable
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, fan mounting provision on top
• Load capacity: 60 kg
• IP rating: IP20
• Compliance: IEC 60297, DIN 41494
• Included accessories: 2 keys, cage nuts & screws set

Tips

Ensure the wall can support the weight of the cabinet plus installed equipment. Use appropriate anchors for the wall material.
