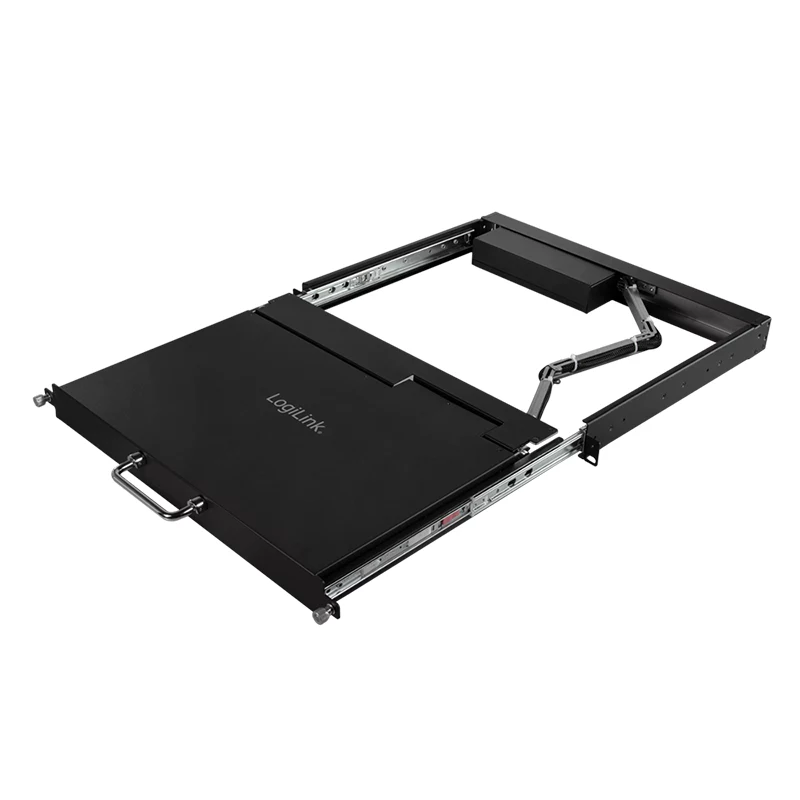

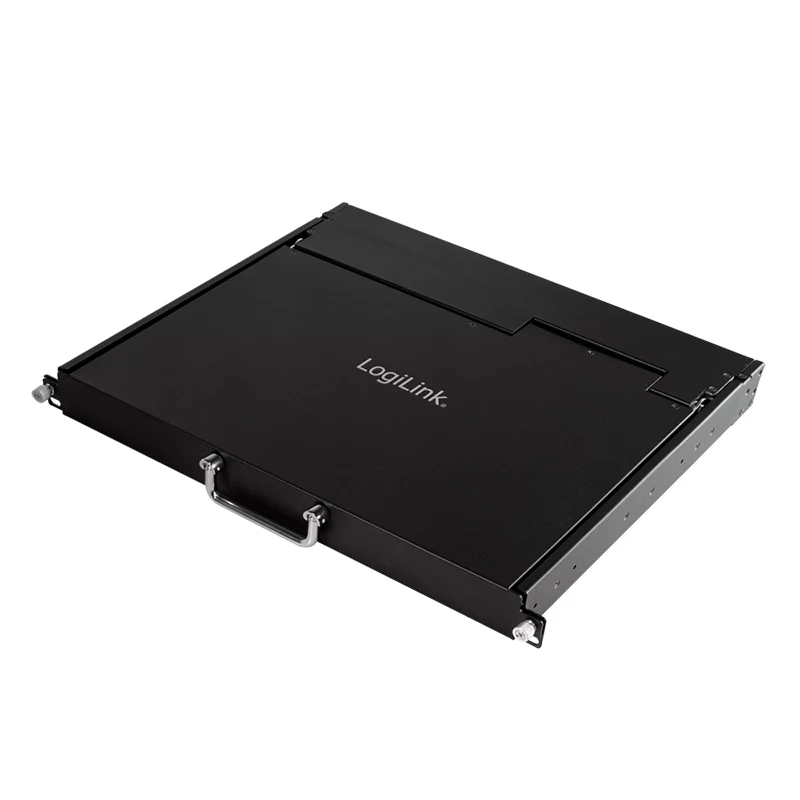

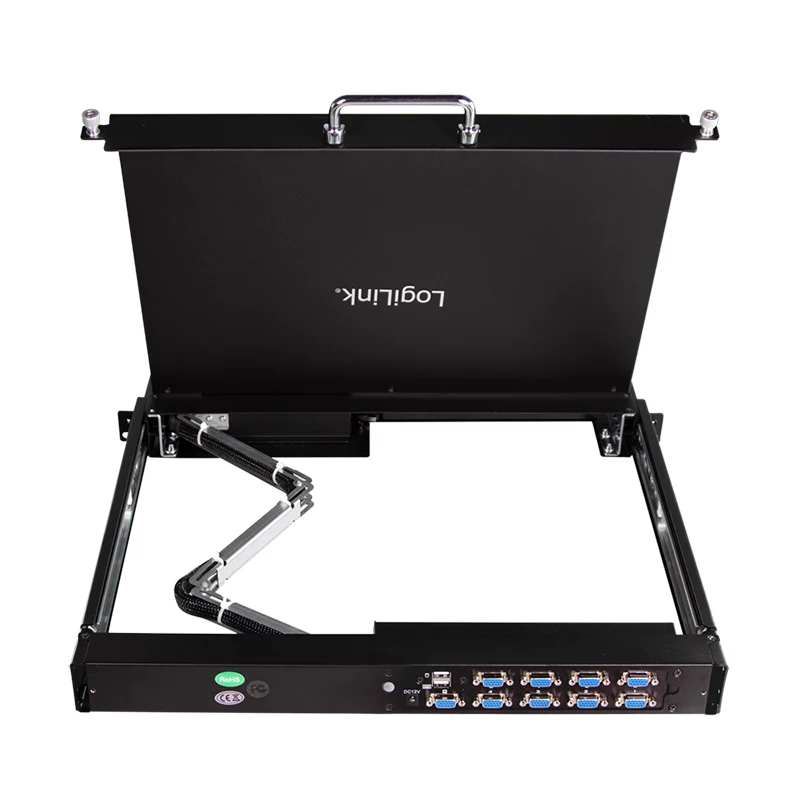

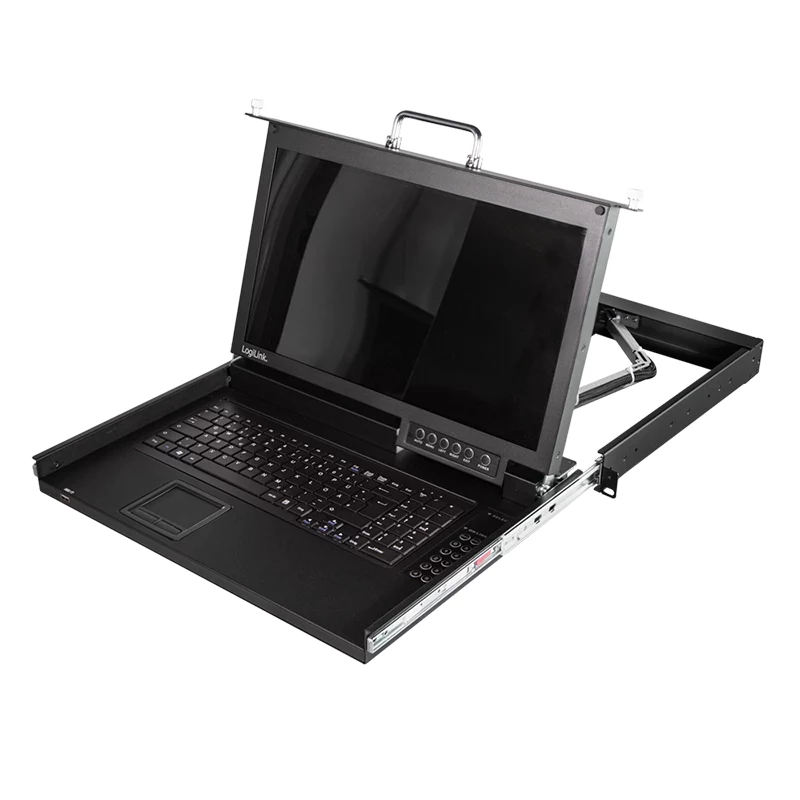

LogiLink 8-poorts KVM-console met 17-inch LCD, VGA, ultra-short-depth, 1U-rackmount

Managing multiple servers in a space-constrained data center or server room often means juggling separate keyboards, monitors, and mice, leading to clutter and inefficiency. The LogiLink LC0005GE KVM Console solves this by integrating an 8-port KVM switch, a 17-inch LCD monitor, keyboard, and touchpad into a single 1U rack-mountable unit with ultra-short depth, fitting cabinets as shallow as 600mm. Control up to 8 servers directly, or daisy-chain additional KVM switches to manage up to 128 servers from one console.

Who is it for

IT administrators, system integrators, and data center technicians who need reliable, space-saving server management in compact racks or remote locations. Ideal for server rooms with limited depth, network closets, and industrial environments where a full-size console is impractical.

Main features

• Integrated 17-inch TFT LCD display with 1280 x 1024 resolution for crisp, clear server video.
• 8-port KVM switch with SPHD connectors; includes 8 KVM cables (SPHD to VGA/USB) for immediate deployment.
• Ultra-short depth design fits 600mm to 1000mm server cabinets, saving valuable rack space.
• 1U rack-mountable console with built-in 105-key keyboard and touchpad, plus USB ports for external peripherals.
• Daisy-chain support for up to 8 additional KVM switches, expanding control to 128 servers.
• On-Screen Display (OSD) for easy server selection and configuration; hot-plugging supported.
• Compatible with Windows, Linux, Mac, and Sun servers; CE, FCC, RoHS certified.

Specifications

• KVM Ports: 8 (SPHD)
• Display: 17" TFT LCD, 1280 x 1024 @ 60Hz, VGA interface
• Console Keyboard/Mouse: Integrated 105-key keyboard and touchpad; external USB support
• Server Interface: VGA video, USB keyboard/mouse via included KVM cables
• Daisy Chain: Yes, up to 8 levels (max 128 servers)
• Power: 100-240V AC, 50/60Hz, max 25W
• Rack Height: 1U; Depth: fits 600-1000mm cabinets
• Certifications: CE, FCC, RoHS
• Included: 8 x KVM cables (1.8m, SPHD to VGA/USB), power cord, rack mounting kit, user manual

Tips

For optimal cable management, use the included 1.8m KVM cables and route them through the rack's cable arms. When daisy-chaining, ensure all switches are powered on before connecting servers. The OSD allows custom server names—label each port clearly for quick identification during maintenance.
