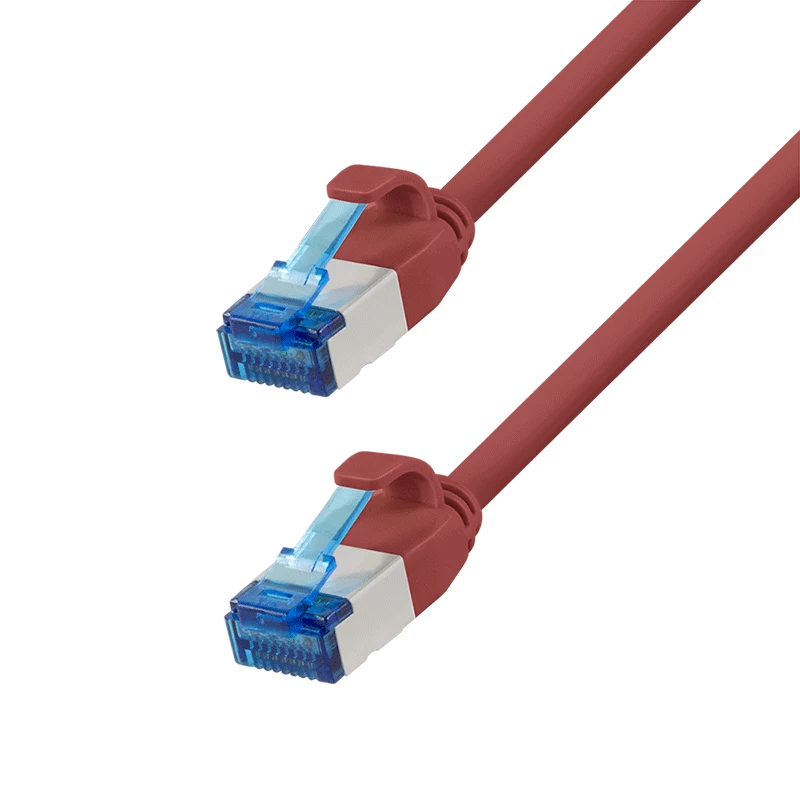

LogiLink Cat.6A slim S/FTP LSZH patchkabel, rood, 15 m, SlimLine

This Cat.6A Slim patch cable delivers 10 Gigabit Ethernet performance with a slim, flexible design ideal for high-density installations. The S/FTP shielding (PiMF) ensures superior protection against alien crosstalk and EMI, while the LSZH jacket provides safety in case of fire. The red color aids in network organization and identification.

Advantages

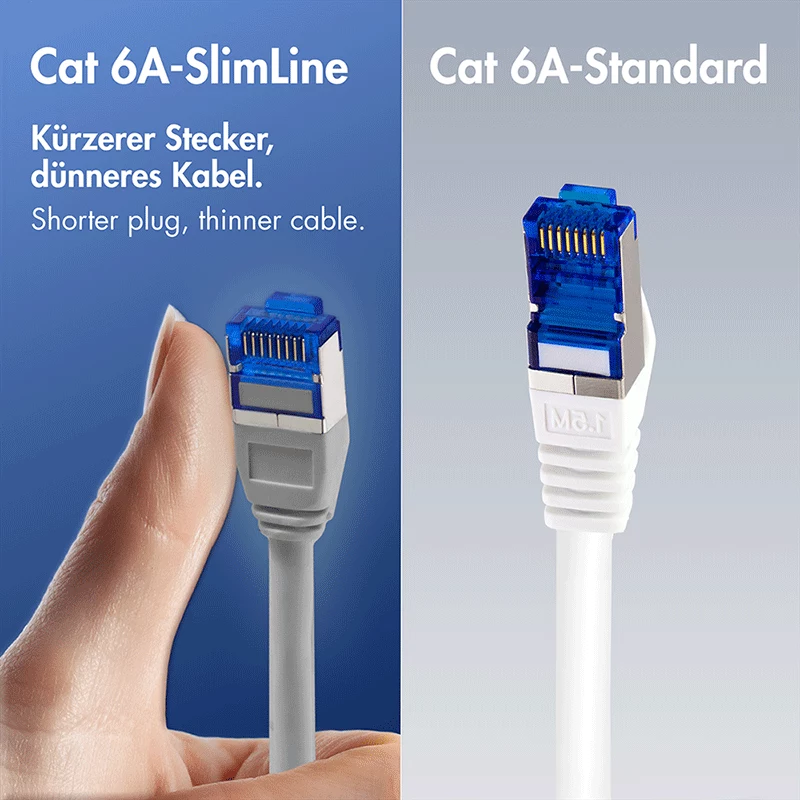

The SlimLine design reduces cable bulk, improving airflow and making cable management easier in crowded racks. Gold-plated contacts ensure reliable connectivity, and the stranded copper conductors offer flexibility without sacrificing performance. Backward compatibility with Cat.6, Cat.5e, and Cat.5 allows seamless integration into existing networks.

Suitable for

• Data centers and server rooms requiring high-density cabling
• 10GBASE-T network connections
• Office networks needing organized, color-coded cabling
• Environments where low smoke and halogen-free materials are mandated

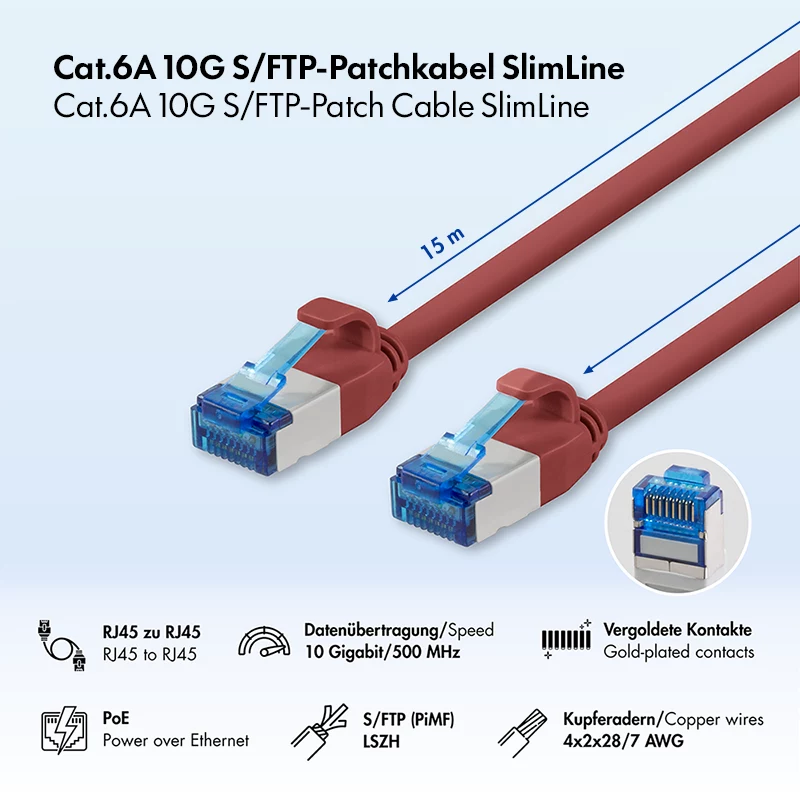

Key specifications

• Cable standard: Cat.6A (Category 6A)
• Shielding: S/FTP (Screened Foiled Twisted Pair, PiMF)
• Length: 15 m
• Color: Red
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Connector type: RJ45 male to RJ45 male
• Data transfer rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor: Copper, AWG 30/7 stranded
• Outer diameter: Approx. 3.8 mm
• Wiring scheme: TIA/EIA 568B

Recommendations

For optimal performance, pair with LogiLink Cat.6A patch panels and keystone jacks. Use in conjunction with cable management accessories to maintain a tidy installation. Verify that connected equipment supports the required data rates.
