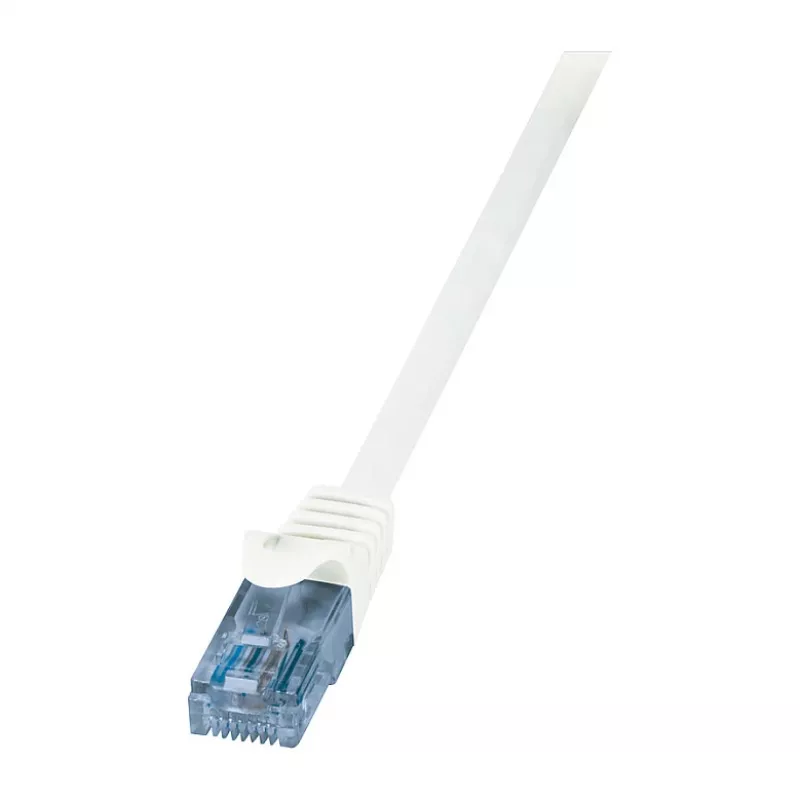

LogiLink Cat.6A U/UTP patchkabel, 0,5 m, wit, 10 Gbit/s, LSZH

Experience lightning-fast 10 Gigabit Ethernet with the LogiLink Cat.6A U/UTP Patch Cable. This 0.5-meter white cable delivers up to 500 MHz bandwidth, ensuring flawless performance for high-density data centers, 10GBASE-T networks, and demanding multimedia applications.

Overview

The LogiLink CP3021U is a premium Cat.6A patch cable engineered for reliability and speed. It features four twisted pairs of 26 AWG stranded copper conductors, terminated with gold-plated RJ45 connectors for superior signal integrity. The unshielded U/UTP design reduces crosstalk while maintaining flexibility, and the LSZH jacket ensures safety in enclosed spaces by emitting low smoke and zero halogens in case of fire.

What stands out

• Supports 10 Gigabit Ethernet up to 500 MHz for future-proof performance.
• Gold-plated contacts (50µm) resist corrosion and ensure consistent connectivity.
• Snagless molded boots protect the locking tab during installation and removal.
• LSZH jacket is flame-retardant, low-smoke, and halogen-free for safe use in offices and server rooms.
• Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA 568-C.2 standards.

Technical details

• Category: Cat.6A (Class EA)
• Shielding: U/UTP (Unshielded Twisted Pair)
• Length: 0.5 m
• Colour: White
• Connector Type: RJ45 Male to RJ45 Male
• Conductor Material: Copper
• Conductor Gauge: AWG 26/7 (stranded)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Wiring Standard: TIA/EIA 568B
• Bandwidth: Up to 500 MHz
• Data Transfer Rate: 10 Gbps
• Contact Plating: Gold (50µm)
• Boot Type: Molded, Snagless
• Outer Diameter: Approx. 6.0 mm
• Number of Pairs: 4

Our verdict

The LogiLink Cat.6A U/UTP patch cable is a reliable, high-performance solution for short-distance 10G connections. Its LSZH jacket and gold-plated contacts make it a safe and durable choice for professional environments.
