LogiLink Cat.7 600 MHz installatiekabel 23 AWG CCA, S/FTP 50 m, oranje

High-performance Cat.7 installation cable delivering 10 Gigabit Ethernet over 50 metres with S/FTP shielding and a robust LSZH orange jacket, engineered for reliable data transmission in demanding network environments.

Advantages

The S/FTP shielding (screened foiled twisted pair) minimises alien crosstalk and electromagnetic interference, ensuring stable data transmission. The LSZH jacket emits low smoke and zero halogen in case of fire, enhancing safety in buildings. With 600 MHz bandwidth, it supports 10GBASE-T up to 50 metres, making it ideal for future-proof installations.

Suitable for

• Structured cabling in office buildings and data centres
• High-speed LAN backbone connections
• Installations requiring fire safety compliance (LSZH)
• Long-distance runs up to 50 metres without signal degradation

Key specifications

• Category: Cat.7 (Category 7)

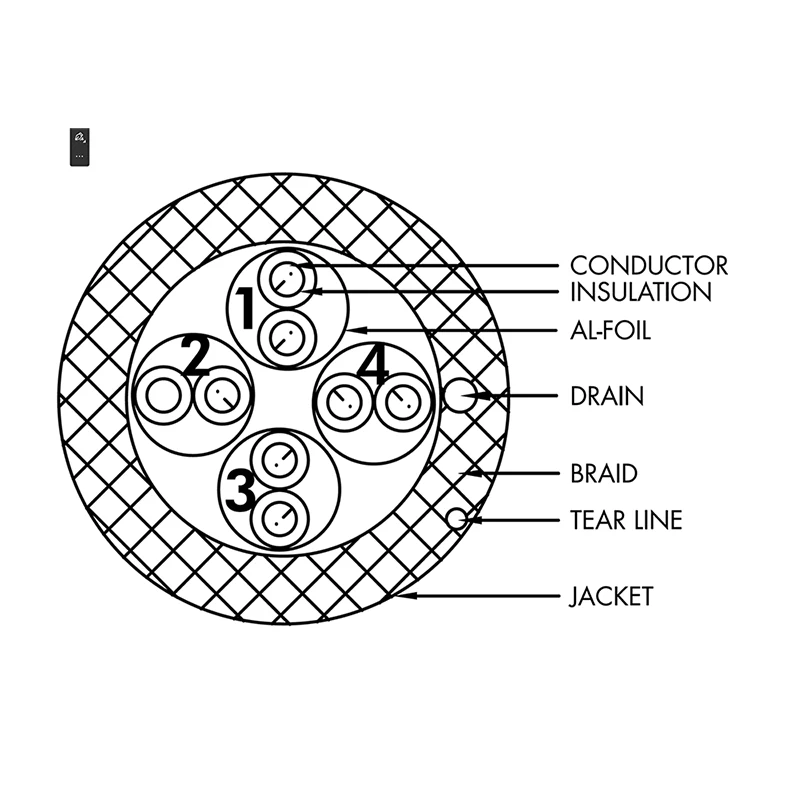

• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Frequency: 600 MHz
• Length: 50 m
• Conductor: CCA (Copper Clad Aluminum), 23 AWG
• Jacket: LSZH, orange
• Outer diameter: approx. 7.5 mm
• Impedance: 100 Ohm
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For best performance, use with Cat.7 connectors and patch panels. Ensure proper grounding of the shielding. Avoid sharp bends during installation to maintain signal integrity.
