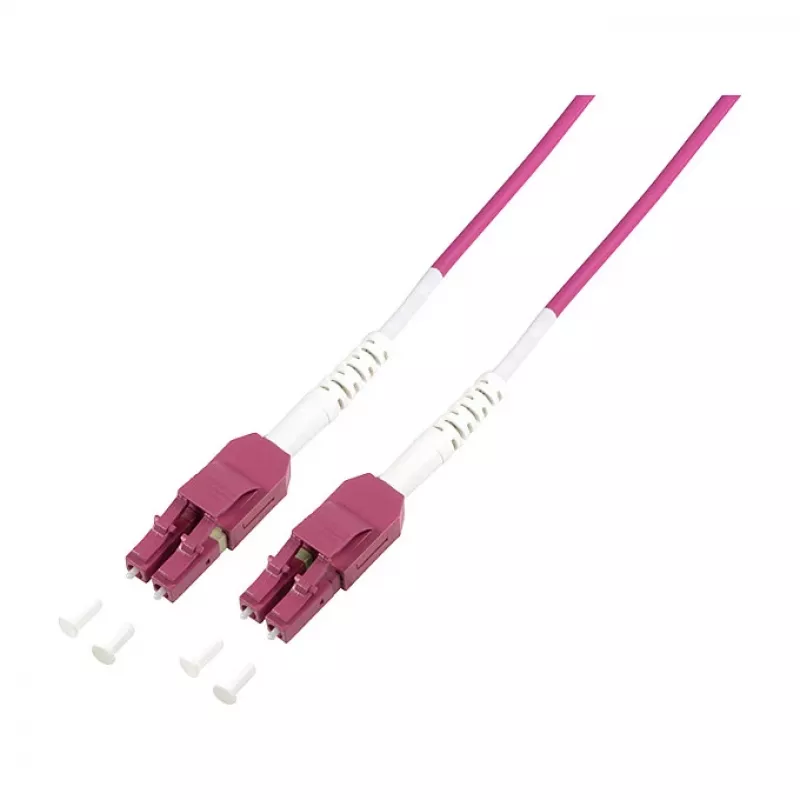

Logilink Fiber Uniboot patchkabel OM4 LC-LC 2,0m aqua

In a high-density data center or enterprise network rack, managing fiber connections can quickly become chaotic. The Logilink Fiber Uniboot Patch Cord OM4 LC-LC 2.0m addresses this by combining two LC connectors into a single, slim uniboot design, effectively halving the cable count and simplifying cable management. This 2-meter patch cord is engineered for high-speed applications, offering reliable performance for 10GbE, 40GbE, and 100GbE networks.

Key specifications

• Connector type: LC-Duplex (Uniboot) to LC-Duplex (Uniboot)
• Fiber type: Multimode OM4 (50/125 µm)
• Length: 2.0 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Aqua
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Polarity: A-B (Crossed)
• Operating temperature: -20°C to 70°C
• Minimum bend radius: 7.5 mm
• Attenuation: 2.5 dB/km @850nm, 0.8 dB/km @1300nm
• Bandwidth: 4700 MHz·km @850nm, 500 MHz·km @1300nm
• Compliance: RoHS, CE

Why choose it

The uniboot design reduces cable bulk by up to 50%, making it ideal for high-density patching areas where space is at a premium. The LSZH jacket ensures safety in enclosed spaces, emitting minimal smoke and no halogens in case of fire. With low insertion loss and high bandwidth, this patch cord delivers consistent, high-speed data transmission for demanding applications.

Ideal use cases

• Data center server and storage area networks (SANs)
• Enterprise network cabinets and racks
• Telecommunications rooms
• High-performance computing (HPC) environments

Good to know

This patch cord is polarity A-B (crossed), which is standard for most duplex applications. The uniboot connector allows for easy polarity reversal if needed, without additional tools. The 2.0 mm cable diameter and 7.5 mm bend radius provide flexibility for tight routing while maintaining signal integrity.
