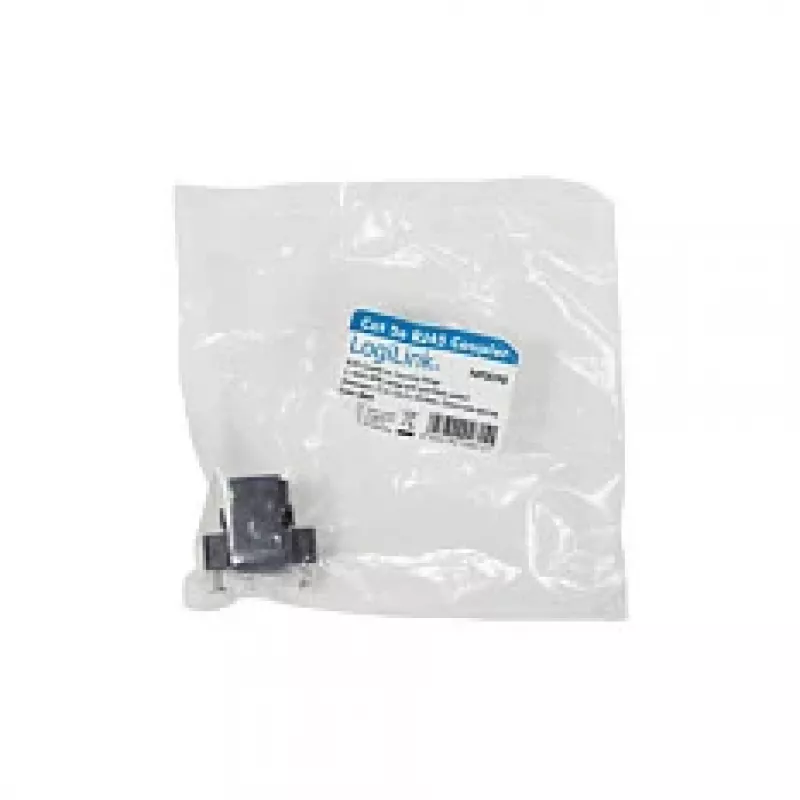

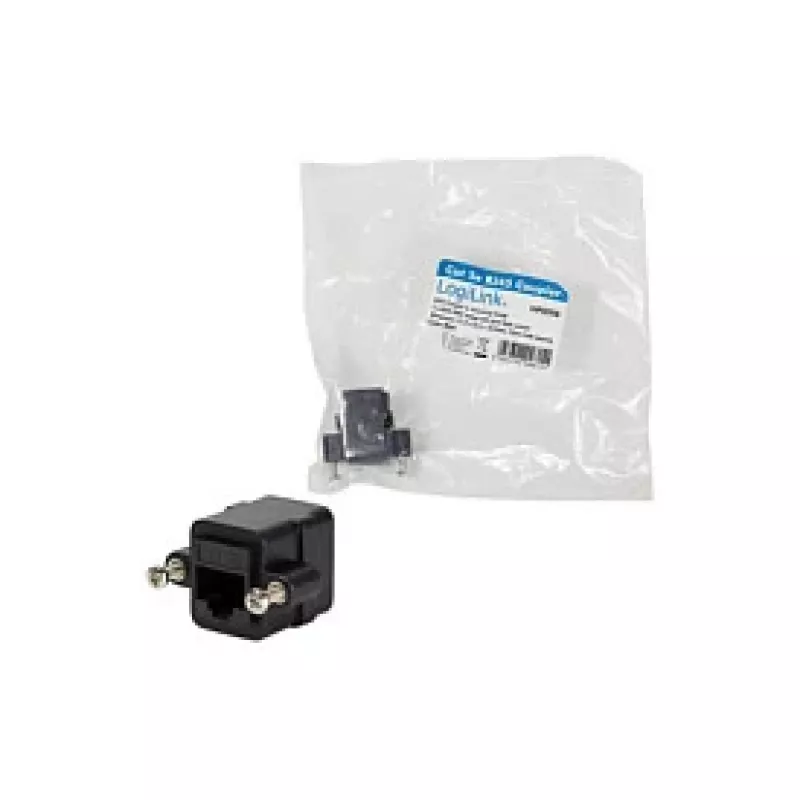

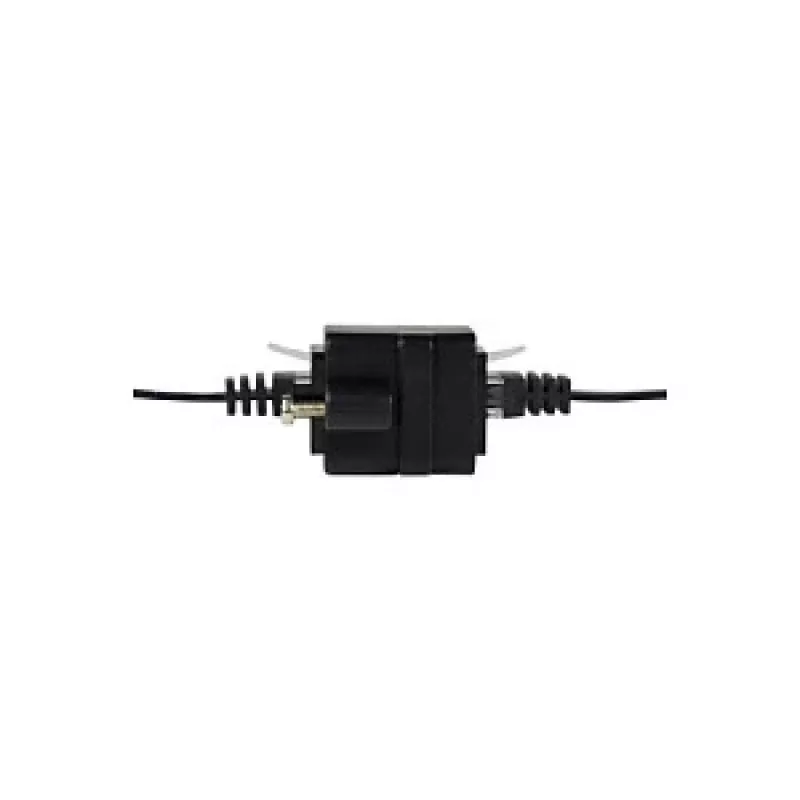

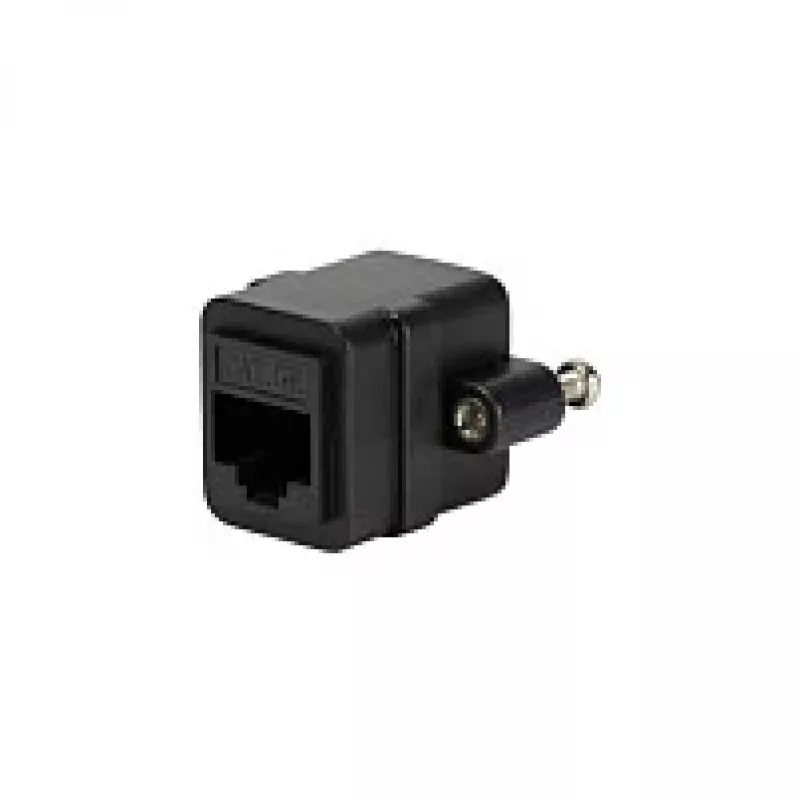

LOGILINK NP0098 RJ45-koppeling met montageflens, 2x RJ45-bus, Cat.5e UTP, zwart

Most inline couplers end up dangling behind furniture or getting lost in cable clutter. The LOGILINK NP0098 changes that with an integrated mounting flange, turning a simple Cat.5e joiner into a fixed, panel-ready network access point. Screw it into a wall plate, patch panel, or equipment enclosure and you get a stable, serviceable junction that stays exactly where you need it.

Highlights

• Flange mount design for secure installation in panels, wall plates, or enclosures
• Two RJ45 female sockets wired straight-through (1:1) for transparent signal pass-through
• Cat.5e UTP performance supports Gigabit Ethernet up to 1000 Mbps
• Gold-plated contacts resist corrosion and maintain reliable conductivity over time
• Durable ABS housing withstands daily handling and repeated insertions
• Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA 568-C.2 standards

In daily use

Mount this coupler wherever you need a fixed network access point. The flange accepts standard screws, so it stays put in a wall outlet, floor box, or rack panel. Because it is unshielded (UTP), it is ideal for typical office and home environments where electromagnetic interference is low. The straight-through wiring ensures that every pin on one side connects to the same pin on the other, so there is no crossover or signal alteration. Whether you are extending a patch cable, creating a custom patch panel, or adding a service point in a wall plate, the NP0098 delivers a clean, professional result.

Full specifications

• Connector type: RJ45
• Number of ports: 2
• Connector gender: Female to Female (Jack to Jack)
• Category rating: Cat.5e (Category 5e)
• Shielding type: UTP (Unshielded Twisted Pair)
• Mounting type: Flange Mount / Panel Mount
• Data transfer rate: Up to 1000 Mbps (Gigabit Ethernet compatible)
• Compatibility: 10BASE-T, 100BASE-TX, 1000BASE-T Ethernet
• Wiring scheme: Straight-through (1:1)
• Housing material: ABS Plastic
• Contact plating: Gold-plated contacts
• Colour: Black
• Operating temperature: -10°C to +50°C
• Storage temperature: -20°C to +60°C
• Humidity: 10% to 90% RH (non-condensing)
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2
• Application: Network cable extension, custom patch panels, wall plates

Final note

The NP0098 is a practical solution for creating permanent, reliable network junctions in any structured cabling environment.
