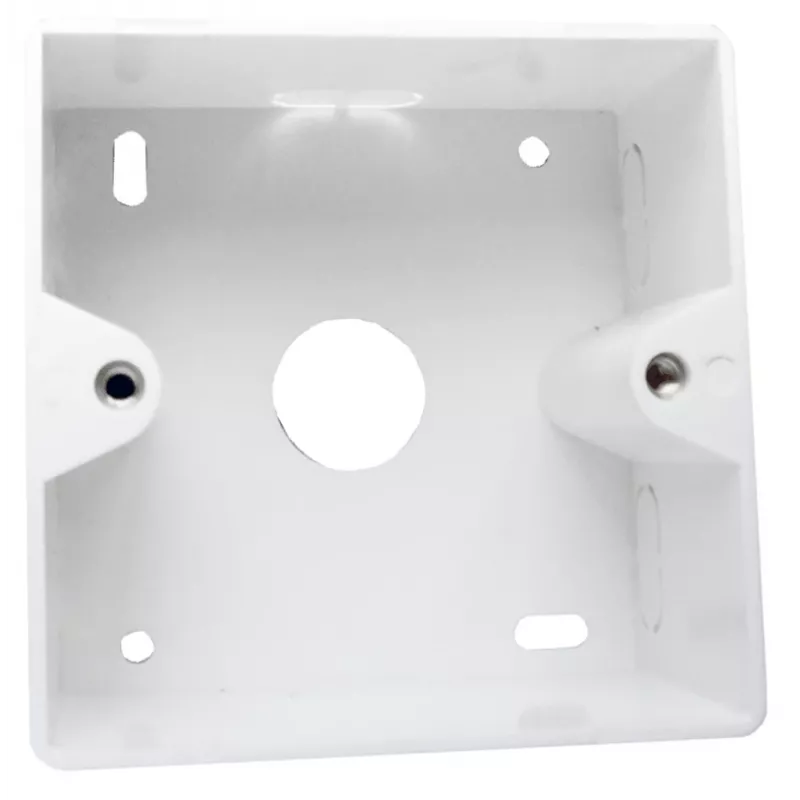

LOGILINK opbouwbehuizing voor inbouwdozen - signaalwit (RAL 9010)

The LOGILINK Surface-Mounted Housing for Flush-Mounted Boxes is a high-quality, discreet enclosure designed to accommodate standard flush-mounted boxes (UP-Dosen) for network, telephone, and antenna sockets. Made from durable ABS plastic in a pure white (RAL 9010) finish, this housing provides a clean and professional surface-mount solution for retrofitting or extending installations where flush mounting is not possible.

Advantages

This surface-mounted housing offers a quick and easy way to install network outlets on walls without the need for recessed boxes. Its compact design and pure white color blend seamlessly with most interiors. The housing features multiple cable entry points (top, bottom, sides) for flexible routing and includes mounting screws for straightforward screw-on installation. With IP20 protection and UL94 V-0 flammability rating, it ensures safety and reliability in indoor environments.

Suitable for

• Installing RJ45 keystone jacks for Ethernet networks
• Mounting telephone and antenna socket modules
• Retrofitting network outlets in rooms without flush-mounted boxes
• Use in offices, homes, and commercial spaces

Key specifications

• Product Type: Surface-Mounted Housing
• Compatibility: Standard Flush-Mounted Boxes (UP-Dosen)
• Colour: Pure White (RAL 9010)
• Material: ABS Plastic
• Mounting Type: Surface Mounting (screw-on)
• Dimensions (L x W x H): 80 x 80 x 40 mm
• Number of Module Slots: 1 or 2 (for standard module inserts)
• Application: Network, Telephone, Antenna Sockets
• Cable Entry Points: Multiple (top, bottom, sides)
• Protection Rating: IP20
• Operating Temperature Range: -5°C to +45°C
• Flammability Standard: UL94 V-0
• Certifications: CE, RoHS Compliant
• Included Accessories: Mounting screws

Recommendations

For a complete installation, pair this housing with LOGILINK keystone jacks and patch cables. Ensure the flush-mounted box is securely fixed to the wall before attaching the housing.
