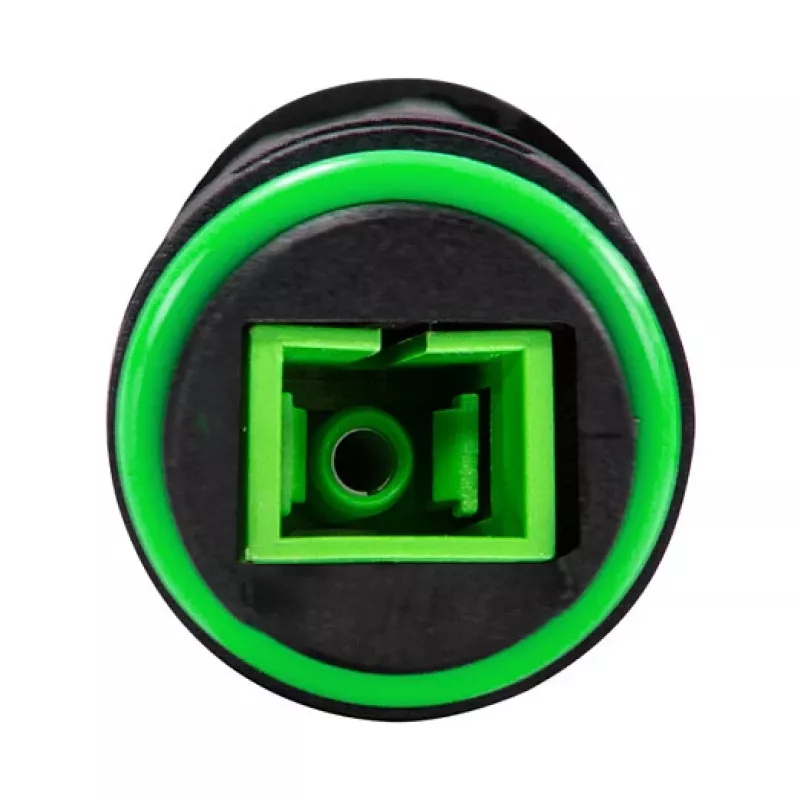

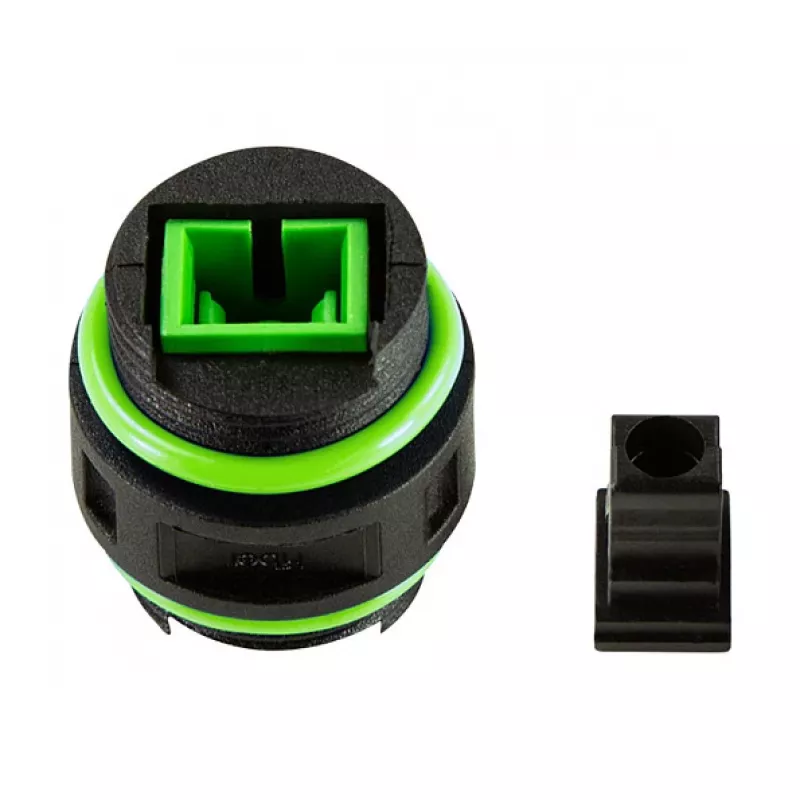

Logilink Outdoor Fiber Optic simplex SC connector met 2 kabelwartels, IP65, grijs

Outdoor fiber optic connections demand robust protection against moisture, dust, and temperature swings. The Logilink Outdoor Fiber Optic Simplex SC Connector with 2 cable glands is built to deliver a reliable and secure connection point for single-fibre runs in exterior environments. Its rugged IP65-rated housing shields the SC adapter, making it a dependable choice for FTTH, security surveillance, and industrial networking installations where the elements are a constant challenge.

Who is it for

This wall-mountable outlet is ideal for installers and network engineers working on outdoor fiber optic distribution. Whether you are extending a network to a remote building, connecting an outdoor camera, or setting up a temporary fibre link, this connector provides a clean and protected transition between external and internal cabling. It suits single-mode and multimode simplex SC connections.

Main features

• IP65-rated protection against dust and water jets
• SC simplex adapter for one fiber connection
• Two M20 cable glands for secure cable entry and exit
• UV-resistant ABS plastic housing for long-term outdoor use
• Wall-mountable design for versatile installation
• Supports cable diameters up to 10 mm

Specifications

• Product type: Fiber optic wall outlet
• Connector type: SC simplex
• Number of ports: 1
• Cable glands: 2x M20
• Protection rating: IP65
• Housing material: ABS plastic
• Colour: Grey
• Mounting: Wall mount
• Fiber capacity: 1 fiber
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Humidity range: 5% to 95% non-condensing
• UV resistant: Yes
• Max cable diameter: 10 mm

Tips

For best results, use the cable glands with the appropriate sealing inserts for your cable diameter and ensure the glands are tightened evenly. Mount the outlet in a location that minimizes direct water exposure, and always leave a small service loop of fiber inside for future maintenance or retermination.
