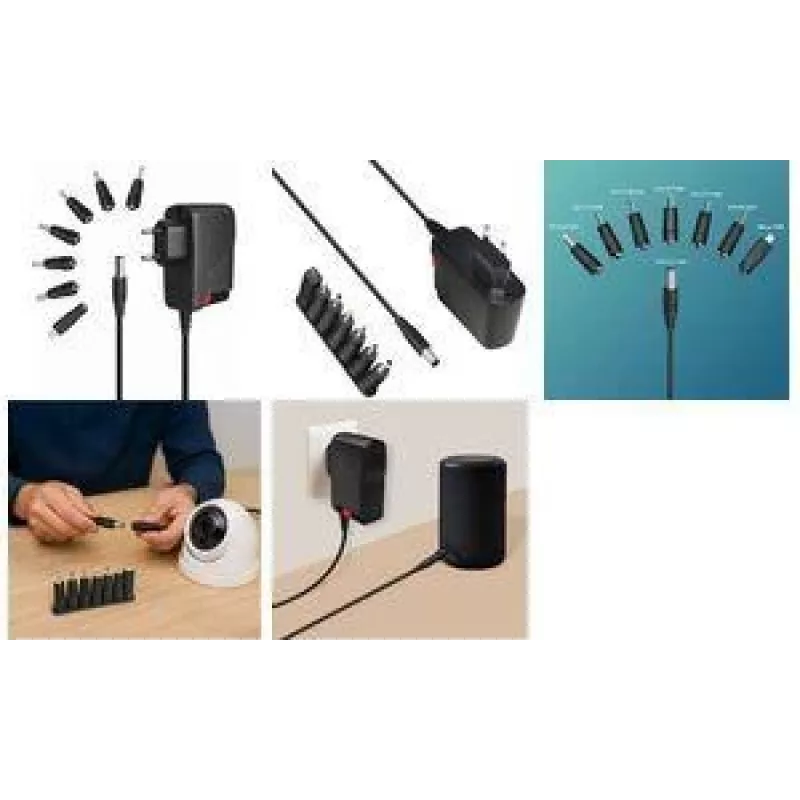

LogiLink PA0161A universele AC/DC-voeding, 3-12V DC instelbaar, 2A, 24W, 8 verwisselbare stekkers, zwart

Many small electronic devices come with proprietary power adapters that are easily lost or fail, leaving you with a perfectly good gadget but no way to power it. The LogiLink PA0161A universal power adapter solves this by providing a single, adjustable power source that can replace a wide range of original adapters. With selectable output voltages from 3V to 12V and eight interchangeable DC tips, it is compatible with countless devices such as routers, LED strips, small monitors, audio equipment, and more.

Who is it for

This adapter is ideal for technicians, hobbyists, and anyone who needs a reliable, versatile power supply for small electronics. It is also perfect for households looking to reduce clutter by replacing multiple dedicated adapters with one universal unit.

Main features

• Adjustable output voltage: 3V, 4.5V, 5V, 6V, 7.5V, 9V, 12V DC
• Maximum output current: 2A, maximum power: 24W
• Includes 8 interchangeable DC tips: 2.5mm, 3.5mm, 3.5x1.35mm, 4.0x1.7mm, 5.0x2.1mm, 5.5x1.5mm, 5.5x2.1mm, 5.5x2.5mm
• Built-in protection: overcurrent, short circuit, overload
• LED power indicator
• Energy efficiency level VI
• Europlug (Type C) AC input, 100-240V, 50/60Hz
• 1.5m DC cable for flexible placement

Specifications

• Input voltage: AC 100-240V
• Input frequency: 50/60 Hz
• Output voltage range: DC 3V - 12V (selectable)
• Selectable output voltages: 3V, 4.5V, 5V, 6V, 7.5V, 9V, 12V
• Maximum output current: 2 A
• Maximum output power: 24 W
• Output connector type: DC plug (interchangeable tips)
• Number of adapter tips included: 8
• Included adapter tip sizes: 2.5mm, 3.5mm, 3.5x1.35mm, 4.0x1.7mm, 5.0x2.1mm, 5.5x1.5mm, 5.5x2.1mm, 5.5x2.5mm
• Protection features: overcurrent, short circuit, overload
• AC power plug type: Europlug (Type C)
• DC cable length: 1.5 m
• Energy efficiency level: VI
• LED indicator: yes
• Housing material: ABS plastic
• Colour: black

Tips

Before connecting your device, always check its required voltage and polarity. Set the adapter to the correct voltage using the selector switch, and choose the DC tip that fits snugly. Start with the lowest voltage setting if unsure, and never exceed the device's rated voltage or current. The adapter's overcurrent protection will shut off if the load exceeds 2A, preventing damage to both the adapter and your device.
