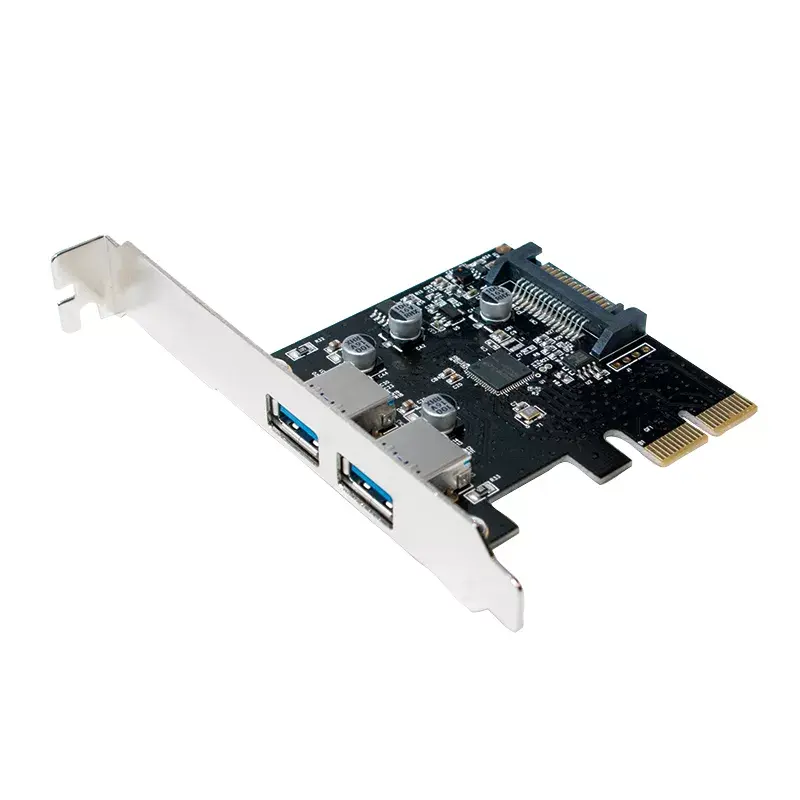

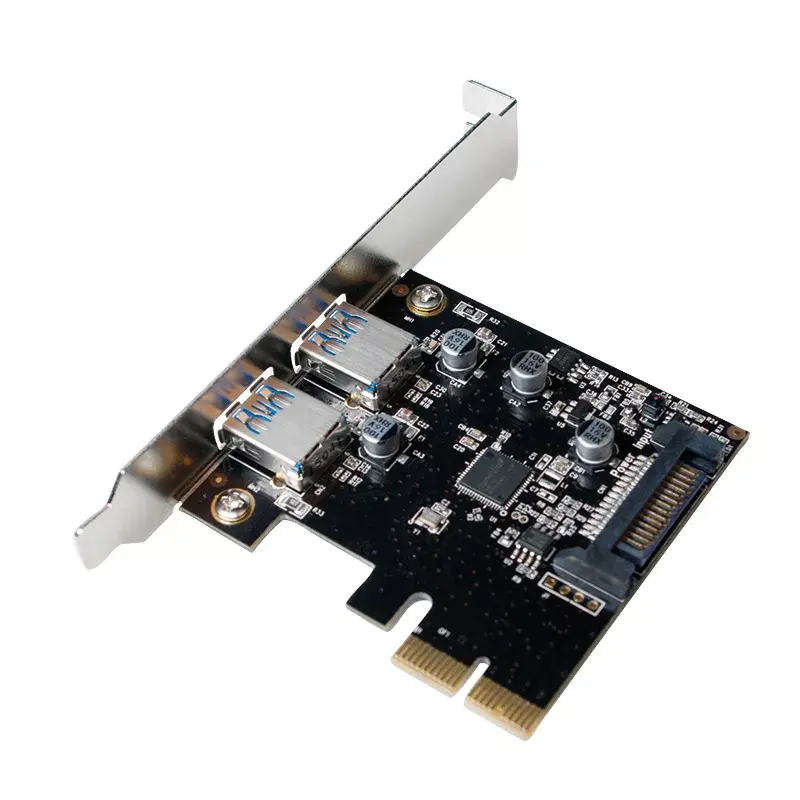

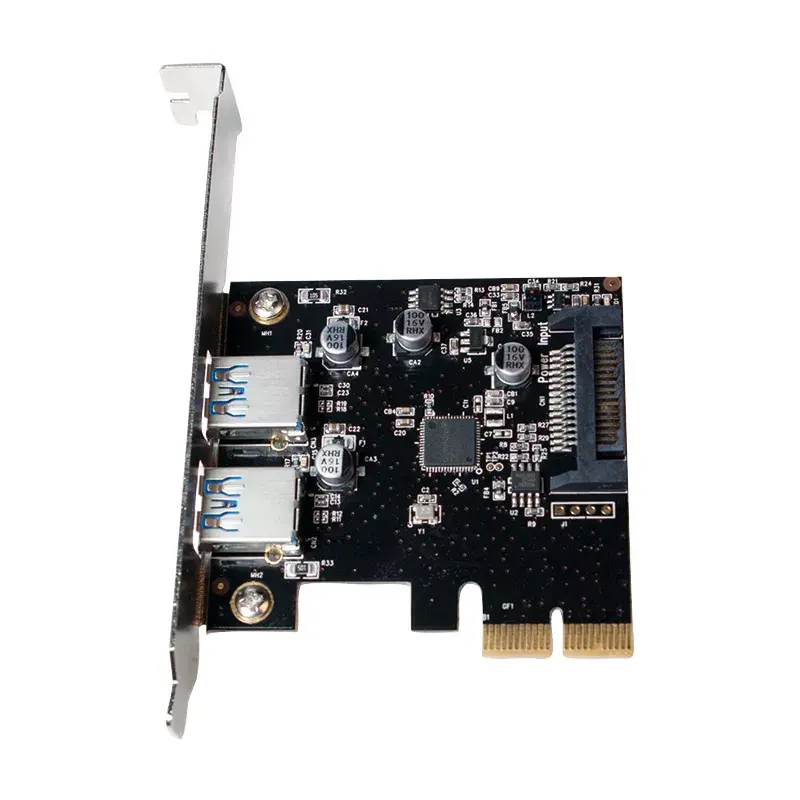

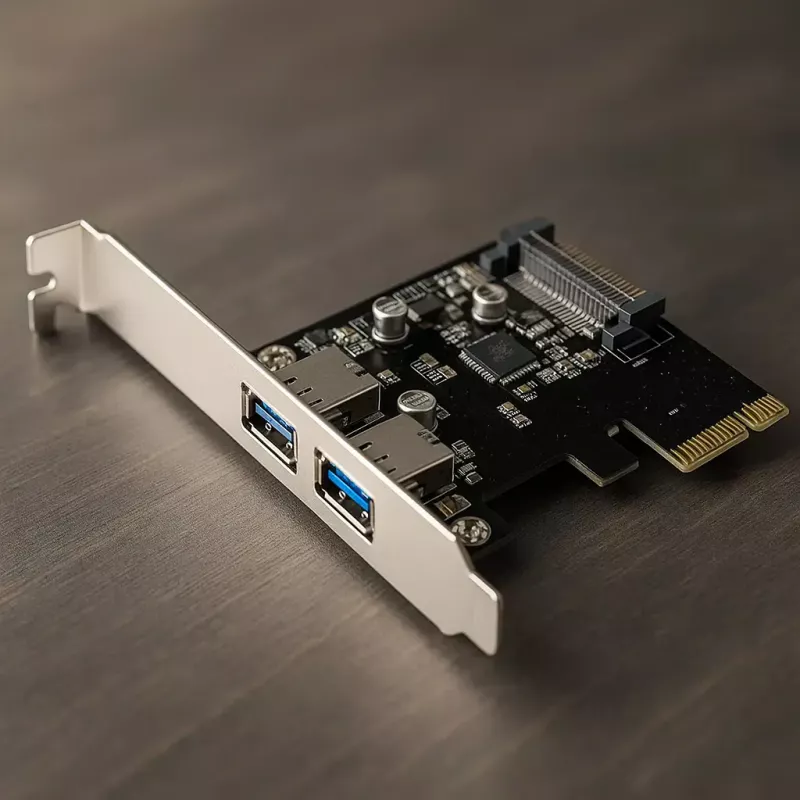

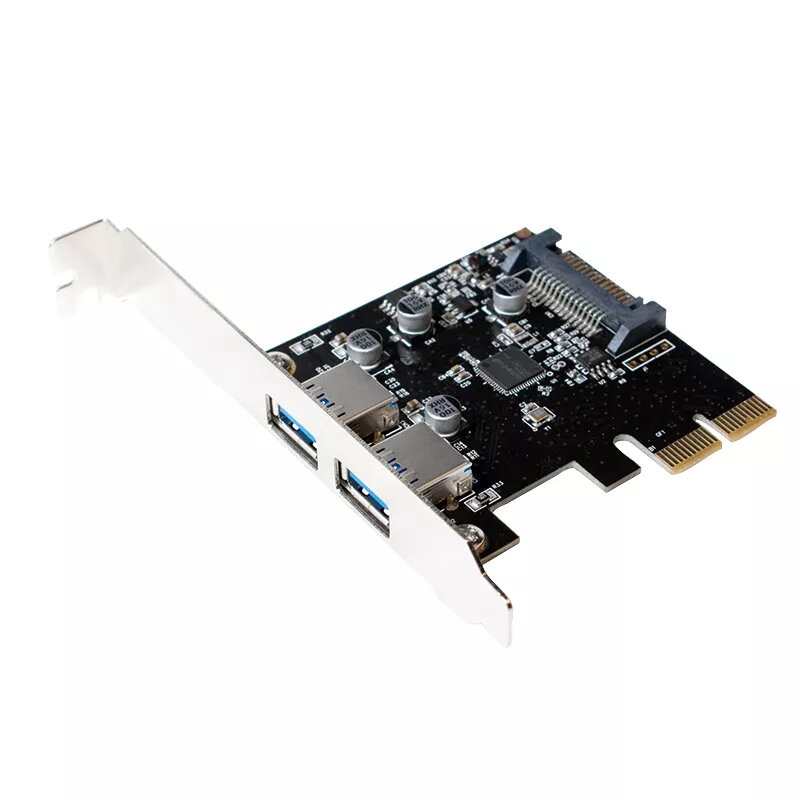

LogiLink PC0080 interfacekaart

The LogiLink PCI Express Card supports the USB 3.1 standard with a transfer rate of up to 10 Gbit/s and allows connection of two USB devices. The card is backward compatible with USB 3.0, USB 2.0 and USB 1.1, providing higher transfer speeds for compatible hosts and devices.

Advantages

The card provides two external USB ports with USB 3.1 performance up to 10 Gbit/s, ensuring faster data transfer compared to older USB standards. Backward compatibility makes it usable with a wide range of existing USB devices. Installation in a PCI Express slot enables expansion of desktop systems that lack sufficient USB 3.1 ports.

Key specifications

• Standard: USB 3.1 (Gen 2)
• Maximum transfer rate: up to 10 Gbit/s
• Ports: 2 external USB ports
• Compatibility: USB 3.0 / USB 2.0 / USB 1.1
• Interface: PCI Express card

How to use

Power off the computer and insert the card into an available PCI Express slot on the motherboard. Secure the card with the slot screw, close the case and power on the system. Install any required drivers provided by the manufacturer or let the operating system detect and install drivers automatically. After installation, connect USB devices to the card's external ports to use USB 3.1 transfer speeds where supported.
