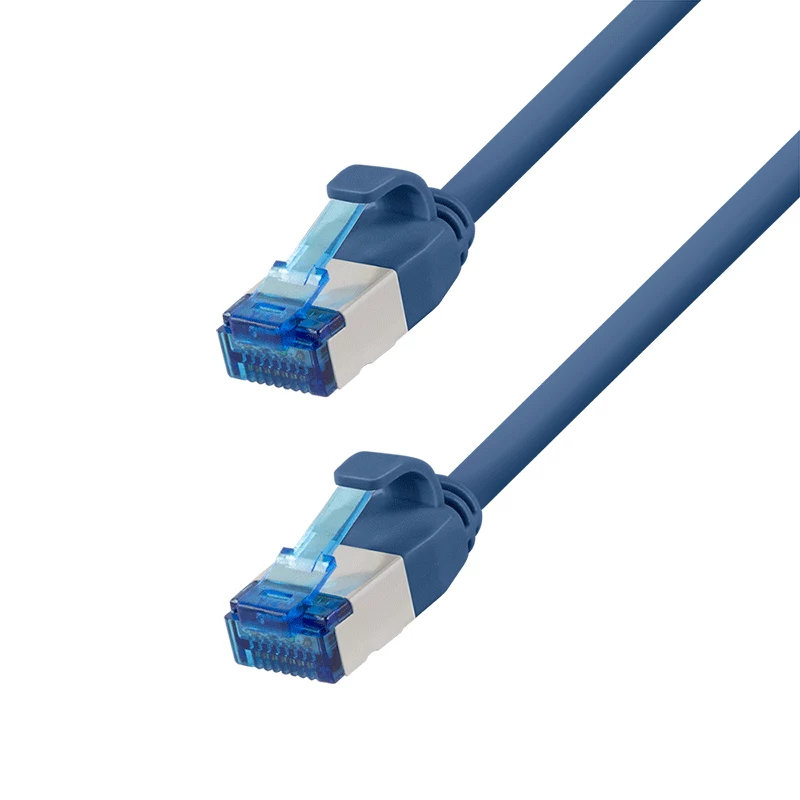

LogiLink SlimLine Cat.6A S/FTP LSZH patchkabel, 7,5 m, blauw

Experience 10 Gigabit Ethernet at 500 MHz with this ultra-slim, shielded Cat.6A patch cable. The LogiLink SlimLine CP5086S delivers high-density performance in a 3.8 mm LSZH jacket, ideal for data centres and enterprise networks.

Overview

Engineered for high-speed networks, this Cat.6A S/FTP patch cable supports 10GBASE-T up to 500 MHz. Its slim 3.8 mm diameter reduces clutter and improves airflow in racks. The LSZH jacket ensures low smoke and zero halogen emissions for safety. Gold-plated RJ45 connectors provide reliable, corrosion-resistant connections. With 100% copper stranded conductors (AWG 28), it offers excellent flexibility and PoE support. Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568B, it's a future-proof choice for demanding installations.

What stands out

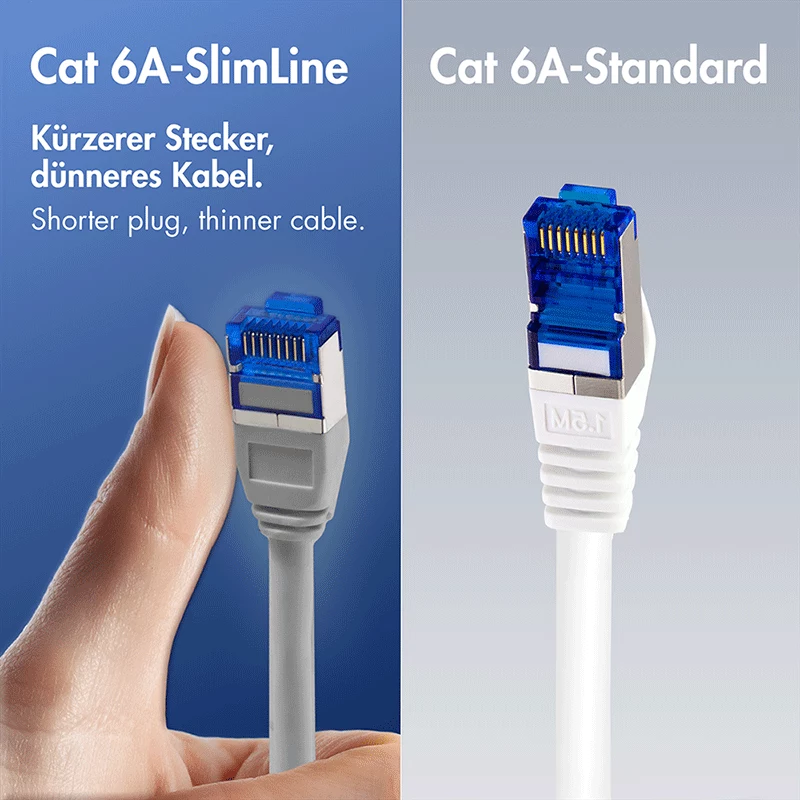

• Ultra-slim 3.8 mm design for high-density patching
• 10 Gigabit Ethernet performance up to 500 MHz
• S/FTP shielding for superior EMI/RFI protection
• LSZH jacket for low smoke and halogen-free safety
• Gold-plated RJ45 connectors with strain relief
• 100% copper stranded conductors for flexibility and PoE

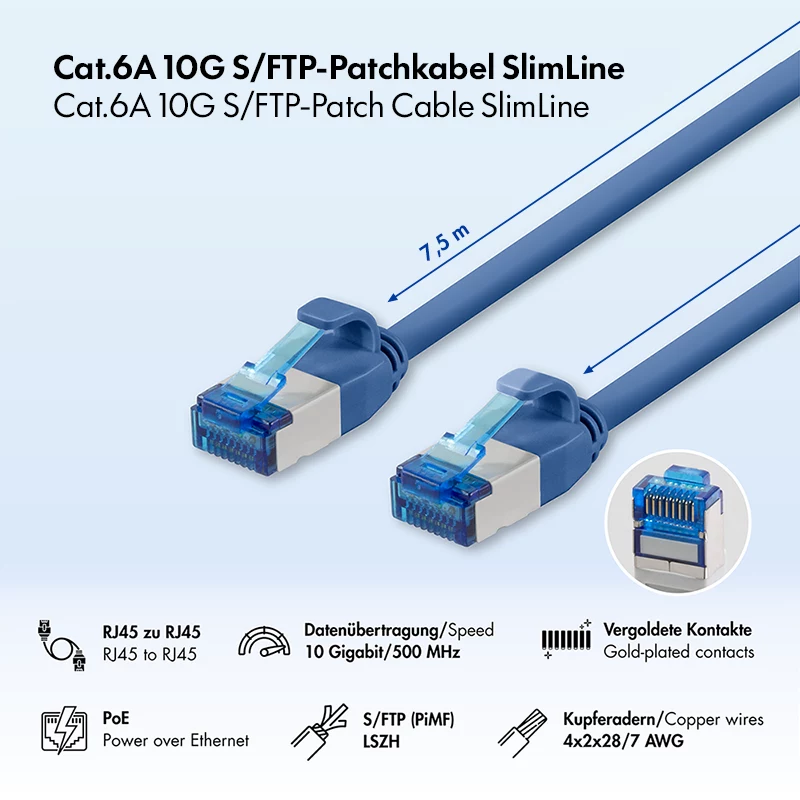

Technical details

• Category: Cat.6A (S/FTP)
• Length: 7.5 m
• Colour: Blue
• Conductor: 100% copper, AWG 28, stranded
• Outer diameter: 3.8 mm
• Bandwidth: 500 MHz
• Data rate: 10 Gbps
• Shielding: S/FTP (foiled twisted pairs + overall braid)
• Jacket: LSZH (Low Smoke Zero Halogen)
• Connectors: RJ45 male to RJ45 male, gold-plated
• PoE support: Yes
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568B

Our verdict

The LogiLink SlimLine Cat.6A cable combines high-speed 10G performance with a space-saving slim profile and safety-focused LSZH jacket, making it an excellent choice for modern network infrastructures.
