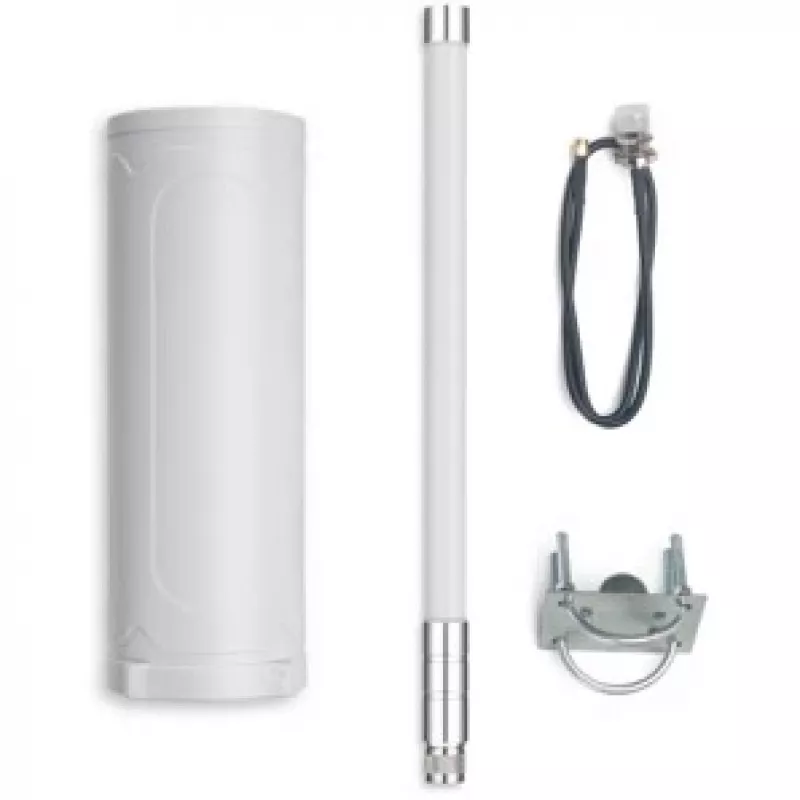

LoRaWAN outdoor-gateway DRAGINO DLOS8N-868 868 MHz weerbestendige gateway

DRAGINO DLOS8N-868 is an outdoor LoRaWAN gateway operating at 868 MHz designed to aggregate long-range sensor data and forward it to LoRa network servers. The device is weatherproof and built for outdoor deployment, providing a bridge between LoRa end nodes and backend applications. It supports standard LoRaWAN protocol communication and is intended to simplify network coverage expansion for smart city, agriculture, industrial monitoring, and asset tracking scenarios.

Advantages

The gateway offers outdoor-rated enclosure protection and long-range LoRaWAN connectivity at 868 MHz, enabling reliable uplink and downlink communications with LoRa end devices. It centralizes data traffic from multiple sensors, reduces the need for point-to-point links, and supports remote network integration via standard network server interfaces. The unit’s design emphasizes easy installation, stable RF performance, and continuous operation in outdoor conditions.

Suitable for

• Expanding LoRaWAN coverage in urban and rural smart city deployments
• Agricultural monitoring: soil moisture, weather stations, and irrigation control
• Industrial remote sensing and environmental monitoring
• Asset tracking and logistics across wide outdoor areas

Key specifications

• Operating frequency: 868 MHz LoRaWAN band
• Weatherproof outdoor enclosure suitable for exposed installations
• Multiple channel support for concurrent uplink reception and downlink transmission
• Ethernet and/or wireless backhaul options for network server connectivity
• Low-power LoRa radio designed for long-range, low-data-rate IoT communication
• Mounting provisions for poles or walls and external antenna connections

How to use

Mount the gateway in a location with clear RF line-of-sight where it can receive signals from deployed LoRa end devices. Connect the device to a network server using the available backhaul interface, configure LoRaWAN network parameters and gateway identifiers via the device web interface or management console, and verify uplink/downlink message flow. Ensure antenna connections are secure and the enclosure is sealed after installation to maintain weatherproofing.

Recommendations

Install the gateway at an elevated position to maximize coverage and reduce obstructions. Choose a stable backhaul connection and monitor device health and RF statistics periodically to optimize network performance and plan additional gateway placement if needed.
