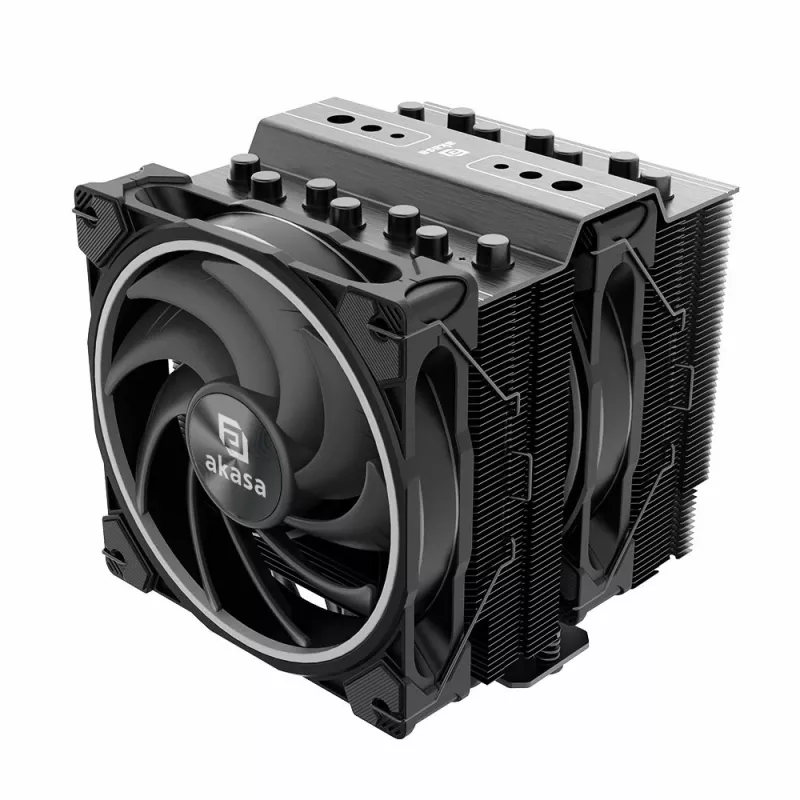

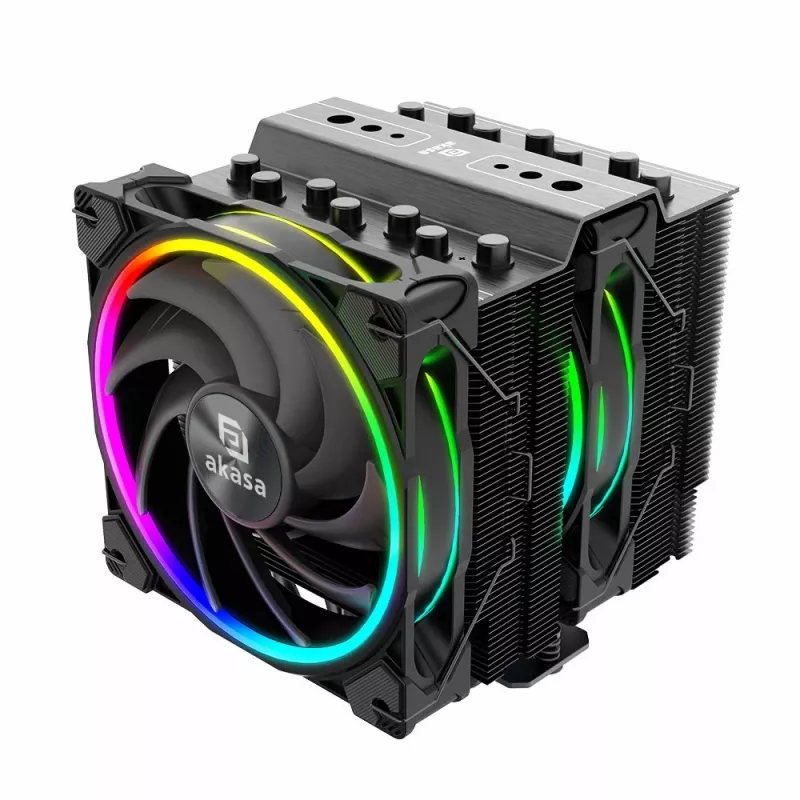

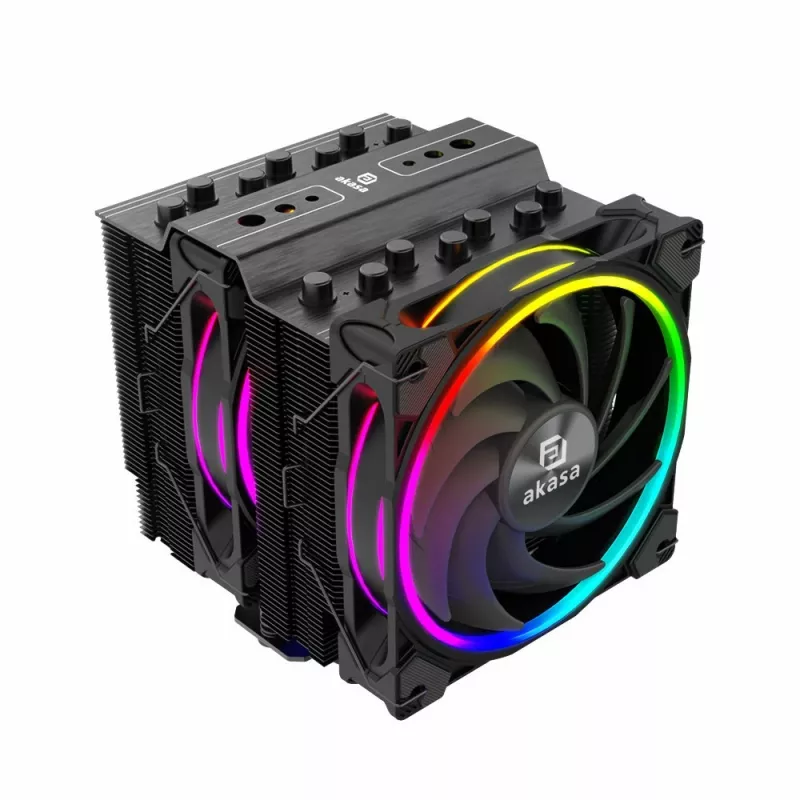

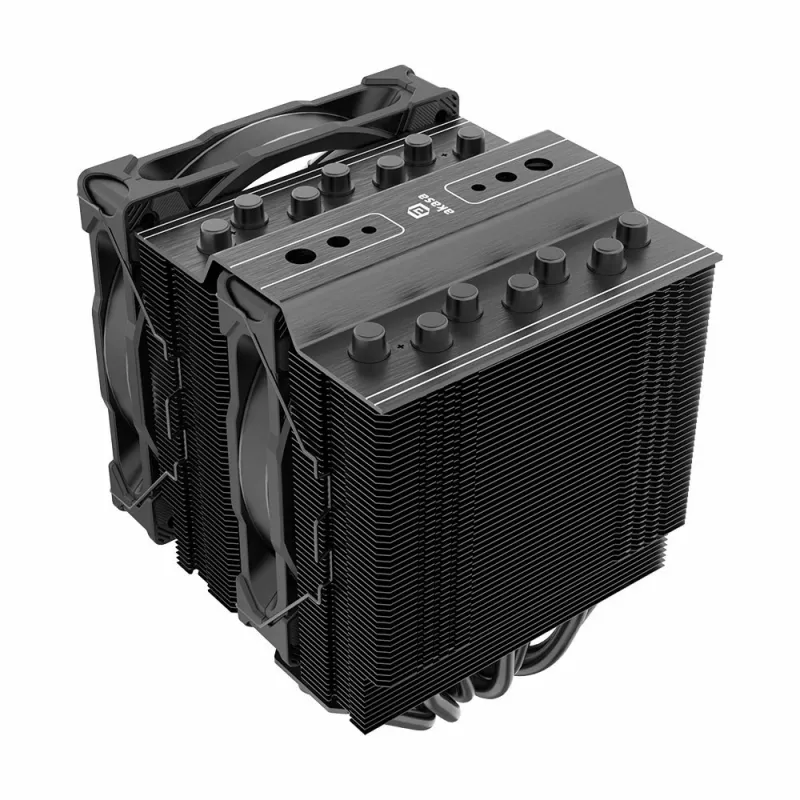

Luchtkoeler Akasa SOHO H7 12 cm zwart 500-2000 tpm keramisch lager

Akasa SOHO H7 is a high-performance dual-tower air cooler with a 120 mm addressable RGB fan and seven copper heatpipes, designed to support CPUs with up to 250 W TDP. The cooler combines a dual heatsink layout, Direct Touch Technology (DTT) at the base and motherboard RGB sync compatibility to deliver efficient heat transfer and customizable lighting while maintaining a slim black aesthetic.

Advantages

The dual-tower design doubles the dissipation surface area and, together with a second fan, increases airflow for improved cooling. Seven copper heatpipes with a Direct Touch base provide efficient heat conduction and transfer. The intelligent PWM fan control adjusts speed according to load for quieter operation at low loads and effective cooling when required. The fan uses a ceramic bearing for enhanced durability and reduced noise, and the high-density black fins are electro-painted for corrosion resistance. Compatibility with LGA1700 and AM5 and popular RGB software ensures broad motherboard support.

Suitable for

• High-performance desktop and gaming PCs with CPUs up to 250 W TDP
• Systems requiring motherboard RGB synchronization (Asus, ASRock, Gigabyte, MSI, Razer)
• Builds with limited RAM clearance where heatsink cutouts improve compatibility
• Compact and mini-ITX builds that still need efficient air cooling

Key specifications

• Type: Air cooler
• Fan diameter: 120 mm
• Fan speed: 500–2000 RPM (PWM)
• Bearing type: Ceramic
• Heatpipes: 7 copper heatpipes with Direct Touch base
• Maximum TDP: 250 W
• Supported sockets: LGA1700, LGA1200, LGA115x series, LGA2011, LGA2066, AM4, AM5
• Colour: Black
• Weight: 1.1928 kg

How to use

Mount the cooler using the supplied multi-socket mounting kit compatible with Intel and AMD motherboards. Apply the included T5 Pro-Grade Plus thermal paste to the CPU heatspreader, position the cooler so the Direct Touch base contacts the CPU, and secure the bracket according to the motherboard-specific instructions. Connect the fan’s PWM cable to the CPU_FAN header and the aRGB cable to an addressable RGB header or compatible controller for lighting control. Verify clearance for RAM modules and surrounding components before finalizing installation.

Recommendations

Use the intelligent PWM control to balance noise and cooling: allow the motherboard to manage fan curves for quieter idle operation and higher speeds under load. Ensure adequate case airflow (intake and exhaust) to maximise the dual-tower cooler’s performance and periodically check and clean fins and fan to maintain optimal thermal dissipation.
