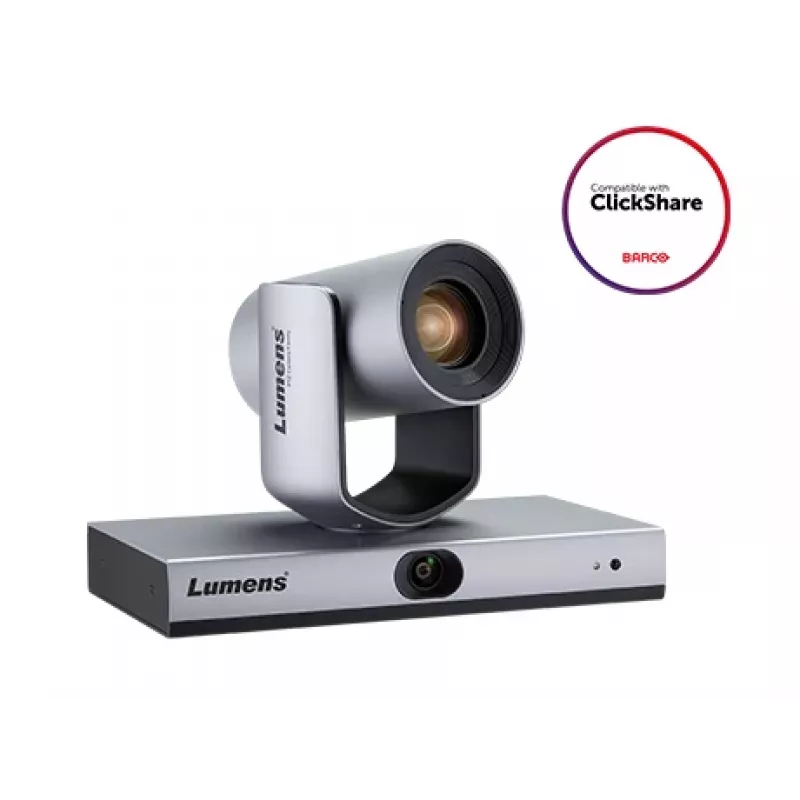

Lumens VC-TR1 Full HD auto-tracking PTZ-camera met aparte panorama-tracking sensor, Ethernet en USB

The Lumens VC-TR1 is a high-performance network surveillance panoramic camera designed for professional monitoring applications. Featuring a dual-camera system with a 4K main camera and a panoramic camera, it delivers exceptional video quality and comprehensive coverage. With 20x optical zoom, AI-powered auto-tracking, and versatile connectivity options including NDI|HX, this camera is ideal for security, education, and corporate environments.

Advantages

The VC-TR1 offers superior image quality with its 4K UHD main camera and 1080p panoramic camera, ensuring every detail is captured. The 20x optical zoom allows for close-up views without loss of clarity, while the AI auto-tracking feature intelligently follows moving subjects. Its wide pan/tilt range and multiple video outputs (HDMI, 3G-SDI, Ethernet, USB 3.0) provide flexible installation and integration. Power over Ethernet (PoE+) simplifies cabling, and support for NDI|HX enables seamless IP video workflows.

Suitable for

• Security surveillance in large areas such as airports, stadiums, and shopping malls
• Educational institutions for lecture capture and remote learning
• Corporate boardrooms and conference centers for video conferencing
• Public safety and traffic monitoring

Key specifications

• Main Camera Sensor: 1/2.5" 4K CMOS
• Panoramic Camera Sensor: 1/2.8" CMOS
• Video Resolution: Up to 4K UHD (3840 x 2160) main, 1920 x 1080 panoramic
• Optical Zoom: 20x
• Digital Zoom: 12x
• Field of View: Main 60.7° (wide) to 3.2° (tele), Panoramic 112°
• Pan/Tilt Range: Pan ±170°, Tilt +90°/-30°
• Video Outputs: HDMI, 3G-SDI, Ethernet (IP/NDI), USB 3.0
• Audio: Line-in, Mic-in, Line-out (3.5mm)
• Video Compression: H.264, H.265, MJPEG
• Network Protocols: NDI|HX, RTSP, RTMP, RTMPS, ONVIF
• AI Tracking: Human Detection, Auto-Tracking
• Power: DC 12V, PoE+ (IEEE 802.3at)
• Minimum Illumination: 0.5 Lux (F1.8, 50IRE, 30fps)
• Control Interface: RS-232, RS-422/485, Ethernet
• Preset Positions: 256

Recommendations

For optimal performance, use a PoE+ switch or injector. The camera supports NDI|HX for low-latency video over IP. Ensure adequate network bandwidth for 4K streaming.
