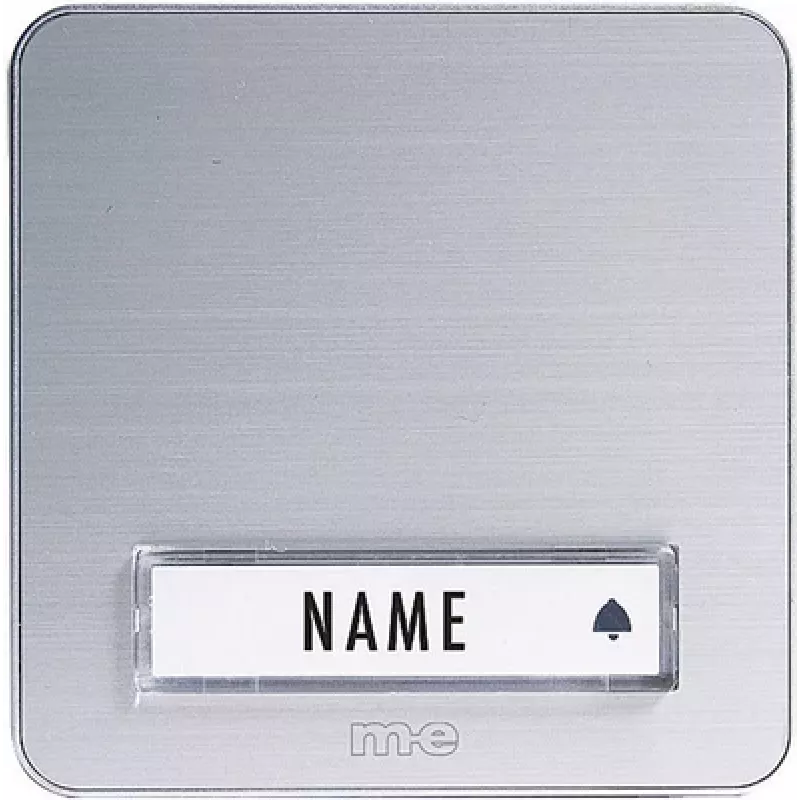

M-E MODERN-ELECTRONICS KTA-1 A/S inbouw deurbelknop, 1 knop, roestvrij staal, zilver, 12 V/1 A, LED-verlichting, IP44

This flush-mounted bell push plate provides a durable and elegant doorbell button solution for both indoor and outdoor use. Its single stainless steel button with LED illumination ensures reliable signaling and visibility in low-light conditions.

Advantages

The KTA-1 A/S combines a sleek silver finish with robust stainless steel construction, offering resistance to weather and wear. The integrated LED button illumination enhances usability at night, while the IP44 protection rating guards against splashing water and dust, making it suitable for exterior installation.

Suitable for

• Front doors and entrance areas
• Residential and commercial buildings
• Flush-mounted installations in standard 60 x 60 mm wall boxes

Key specifications

• Number of buttons: 1
• Material: Stainless steel
• Colour: Silver
• Operating voltage: 12 V AC/DC
• Max. switching current: 1 A
• Button illumination: LED
• Protection class: IP44
• Outer dimensions: 85 x 85 mm
• Installation cut-out: 60 x 60 mm
• Installation depth: 20 mm
• Connection type: Screw terminals

Recommendations

For best results, pair with a compatible 12 V doorbell transformer and use a standard flush-mounted back box. Ensure proper sealing during installation to maintain the IP44 rating.
