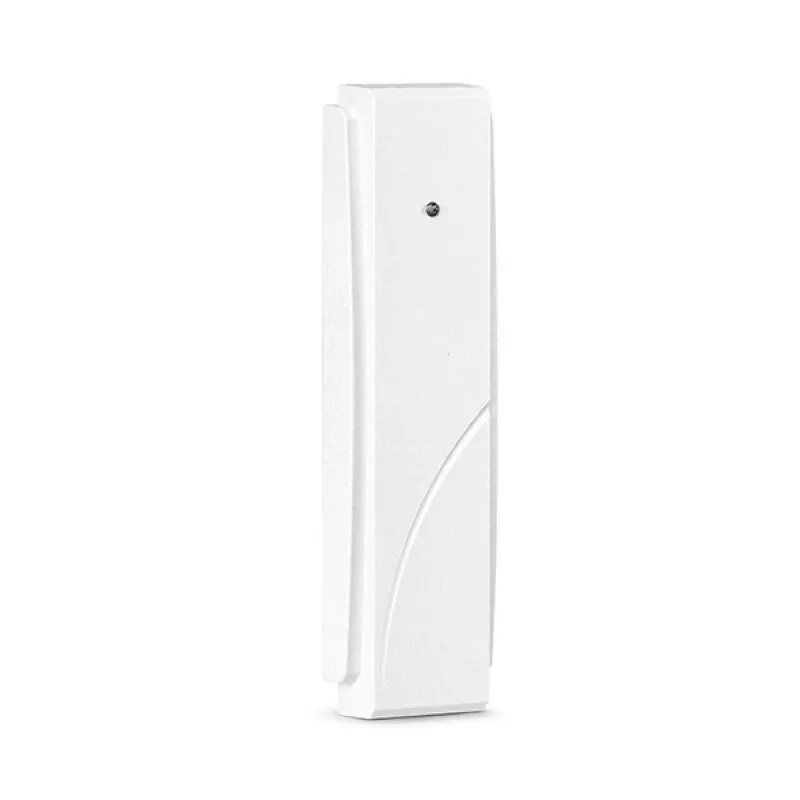

Magnetische kaartlezer Satel CZ-EMM2 wit 12V 55mA

The SATEL Magnetic Card Reader CZ-EMM2 White is a compact 125 kHz transponder reader designed for access control installations. It supports reading proximity cards and tags and integrates with INTEGRA control panels as well as ACCO and ACCO NET door controllers. Powered by 12 V with a typical current draw of 55 mA, the reader is housed in a small enclosure (35 mm width, 21 mm depth, 127 mm height) that matches the visual style of INT-KLCD and INT-S devices for a coherent alarm and access control system appearance.

Advantages

The reader’s compact dimensions and low power consumption enable flexible mounting options and reduced system load. Compatibility with common 125 kHz proximity transponders and direct integration with SATEL access control and alarm controllers simplify system design and deployment. The white enclosure and design consistency with other SATEL devices facilitate discreet and uniform installation in a variety of environments.

Suitable for

• Access control for small and medium commercial premises
• Integration with SATEL INTEGRA alarm systems
• Door controller installations using ACCO or ACCO NET
• Locations requiring low-power, space-saving readers

Key specifications

• Operating frequency: 125 kHz
• Supported transponders: proximity cards and tags
• Supply voltage: 12 V DC
• Typical current consumption: 55 mA
• Dimensions (W × D × H): 35 × 21 × 127 mm
• Colour: white
• Designed for integration with INTEGRA, ACCO and ACCO NET controllers

How to use

Mount the CZ-EMM2 in a suitable indoor location following standard installation practices for access control readers, ensuring stable 12 V DC supply and secure cable routing to the associated controller. Connect data and power wiring according to the controller manufacturer’s wiring diagram and configure the controller to recognise 125 kHz transponders. Test reading range and tag registration before completing the installation and secure the enclosure to prevent tampering.

Recommendations

For reliable operation, install the reader away from strong electromagnetic sources and metal obstructions that could reduce reading range. Use compatible SATEL controllers to take full advantage of integration features, and register each proximity card or tag in the controller’s access database following the controller’s programming instructions.
