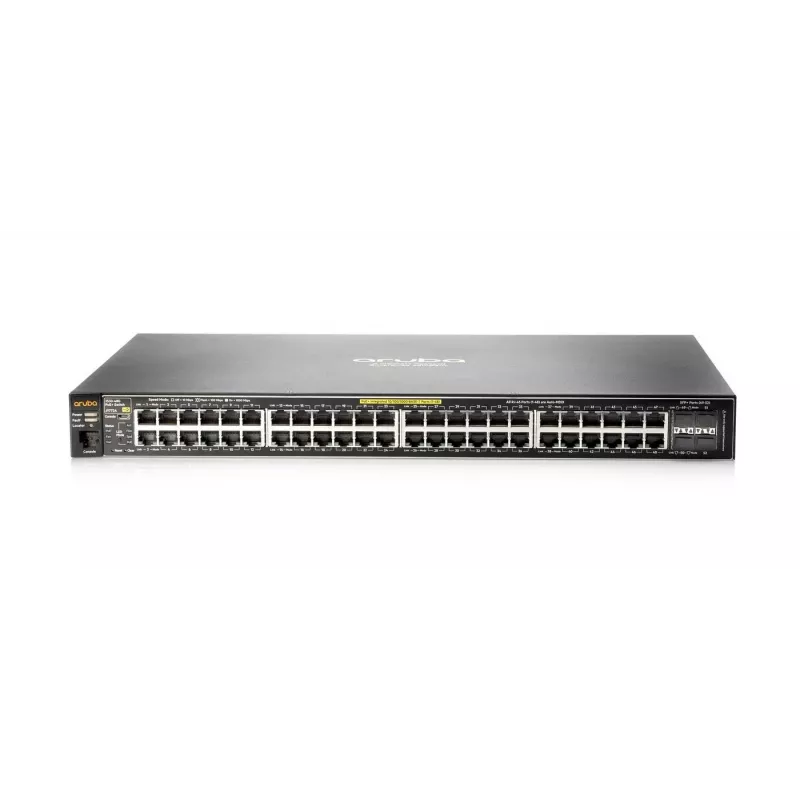

Managed Switch HPE Aruba 2530 48G PoE+

The Aruba 2530 Switch Series provides secure, reliable, and easy-to-manage wired connectivity for enterprise edge, branch office, and SMB deployments. These fully managed Layer 2 switches are available with Gigabit or Fast Ethernet ports, optional PoE+ and optional 10GbE uplinks, and include features for access security, traffic prioritization, IPv6 host support, and energy savings.

Advantages

The Aruba 2530 family supports flexible deployment sizes (8-, 24-, and 48-port models) and offers fanless options and Energy Efficient Ethernet to reduce power consumption. Management choices include Web GUI, CLI, SNMP and micro USB/console access, plus zero-touch provisioning for simplified rollout. Integration with Aruba ClearPass, AirWave and Aruba Central enables unified wired/wireless policy, monitoring and cloud-based management.

Key specifications

• Layer: Fully managed Layer 2 switching
• Port options: 8-, 24-, and 48-port models with Gigabit or Fast Ethernet
• PoE: Optional PoE+ support on selected models
• Uplinks: Optional 10GbE uplinks on selected models
• Security: Local MAC, 802.1X, MAC and Web authentication; DHCP/DHCPv6 protection; Dynamic ARP protection; Dynamic IP lockdown
• QoS: IEEE 802.1p prioritization with 8 priority levels and queuing (WDRR or strict priority)
• Monitoring: sFlow, RMON, AirWave and Aruba Central support
• Management: Web GUI, CLI, SNMP, console and micro USB ports
• Deployment: Wall, table and rack mounting; zero-touch provisioning (ZTP)
• Power and noise: Fanless models available; Energy Efficient Ethernet (IEEE 802.3az); option to disable LEDs and enable port low power mode

How to use

Install the Aruba 2530 switch in the chosen orientation (rack, wall or desktop) and connect uplink and access ports according to your network plan. Use the Web GUI, CLI or SNMP for initial configuration, or apply zero-touch provisioning to automatically provision the device. Configure VLANs, QoS profiles, and access authentication (Local MAC, 802.1X, MAC/Web) to enforce network policies. If using PoE+, verify power budgets and connect powered devices accordingly. Integrate with ClearPass, AirWave or Aruba Central to centralize policy, monitoring, and firmware management.

Recommendations

For deployments requiring unified wired and wireless policy or centralized monitoring, pair Aruba 2530 switches with Aruba ClearPass for access control and Aruba Central or AirWave for management; choose PoE+ models when supplying power to access points or IP phones and select fanless models in noise-sensitive locations.
