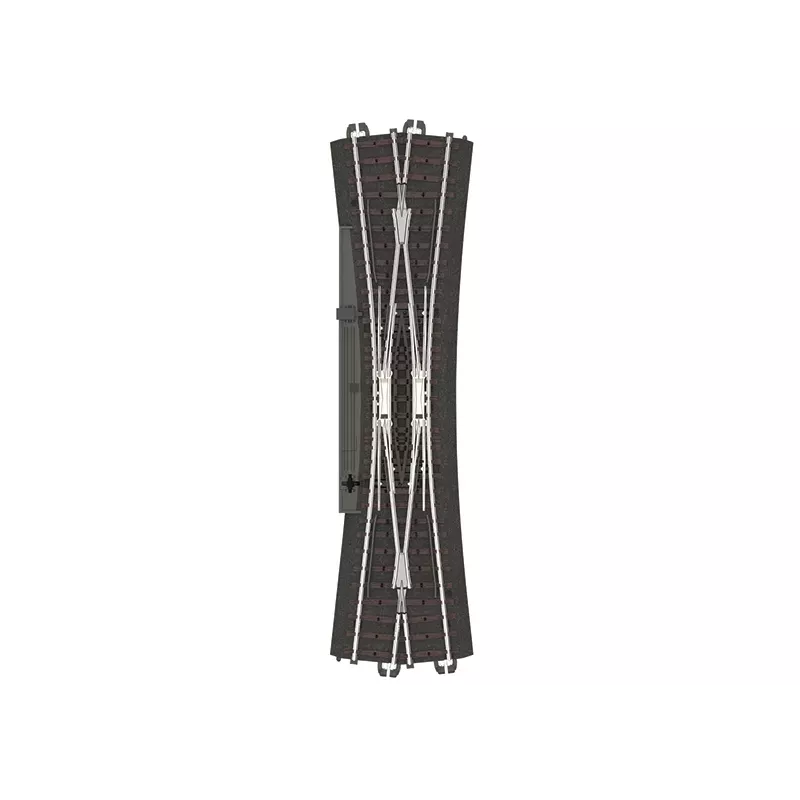

Märklin H0 C-rail dubbelkruiswissel 24720, 236,1 mm, met bedding

For H0 model railroaders building a Märklin C-Track layout, the 24720 double crossover switch lets two parallel tracks cross and switch between each other in a compact space. This piece combines two turnouts and a crossing, enabling trains to move from one parallel track to the other while also crossing over. The integrated roadbed matches other C-Track sections, ensuring a seamless look and stable operation.

Key specifications

• Scale: H0 (1:87)
• Track system: Märklin C-Track (C-Gleis)
• Track type: Double crossover switch
• Length: 236.1 mm
• Angle of divergence: 24.3 degrees per branch
• Operating mode: 3-rail AC (Märklin system)
• Switching operation: Manual, prepared for electric drive
• Material: Plastic base with nickel silver rails
• Integrated roadbed: Yes

Why choose it

The double crossover switch offers a realistic track configuration for stations and yards. It is compatible with Märklin electric turnout drives (74491) and turnout lanterns (74470), allowing for later automation. The click-together design ensures quick and secure connections without additional tools.

Ideal use cases

• Creating crossovers between parallel main lines
• Building station throats and yard ladders
• Adding operational interest with shunting movements
• Expanding a C-Track layout with a compact track element

Good to know

This switch is designed for Märklin 3-rail AC systems. The live frog ensures reliable power pickup. Electric drives and lanterns are sold separately. The switch corresponds to the standard straight track length of 236.1 mm, fitting into the C-Track geometry.
