MDT BE-GBZS.01S KNX glazen smart bedienpaneel met kleurendisplay, zwart

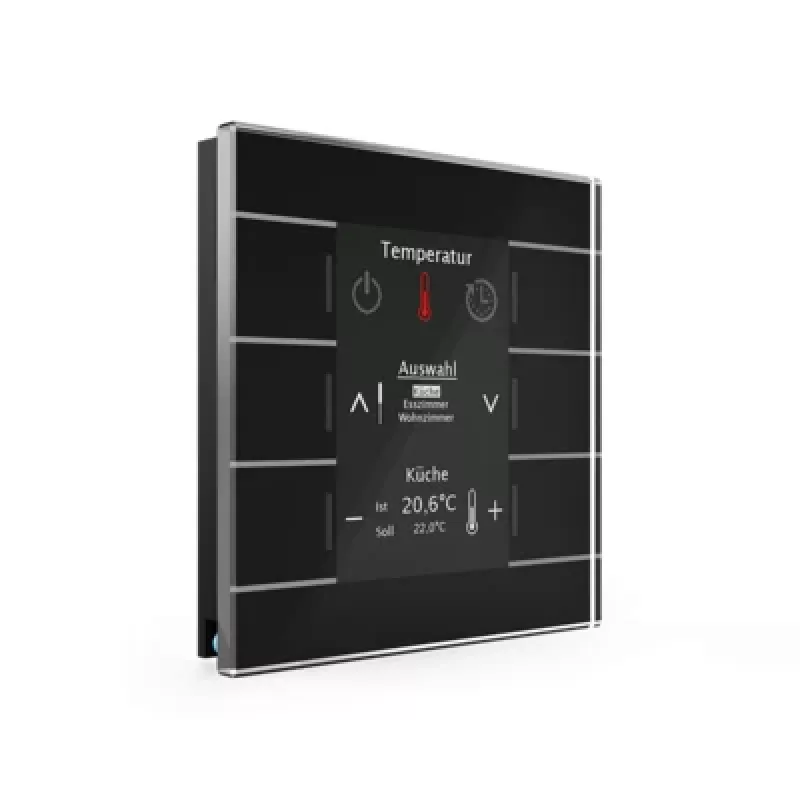

The MDT BE-GBZS.01S is a KNX glass smart control panel featuring a 3.5-inch TFT color display with 320 x 240 pixel resolution, offering intuitive control and monitoring of building automation functions. Its flush-mounted design with a black glass surface integrates seamlessly into modern interiors.

Advantages

This panel combines multiple sensors and control functions in one device, reducing the need for additional components. The high-resolution color display provides clear visualization of status and control options, while the integrated proximity sensor enables automatic display activation as you approach.

Suitable for

• Residential smart home installations
• Commercial building automation
• Hotel room control systems
• Conference room management

Key specifications

• Display: 3.5-inch TFT color, 320 x 240 pixels
• Integrated sensors: temperature, humidity, CO2, air pressure, brightness, proximity
• Configurable pages: 6, with up to 12 functions per page
• Built-in functions: scene control, logic, time, alarm, thermostat
• Power supply: KNX bus voltage
• Protection class: IP20
• Operating temperature: 0 to +45 °C
• Configuration: ETS software

Recommendations

Ideal for projects requiring a centralized control interface with environmental monitoring. Ensure proper KNX bus connection and use ETS for configuration to unlock all features.
