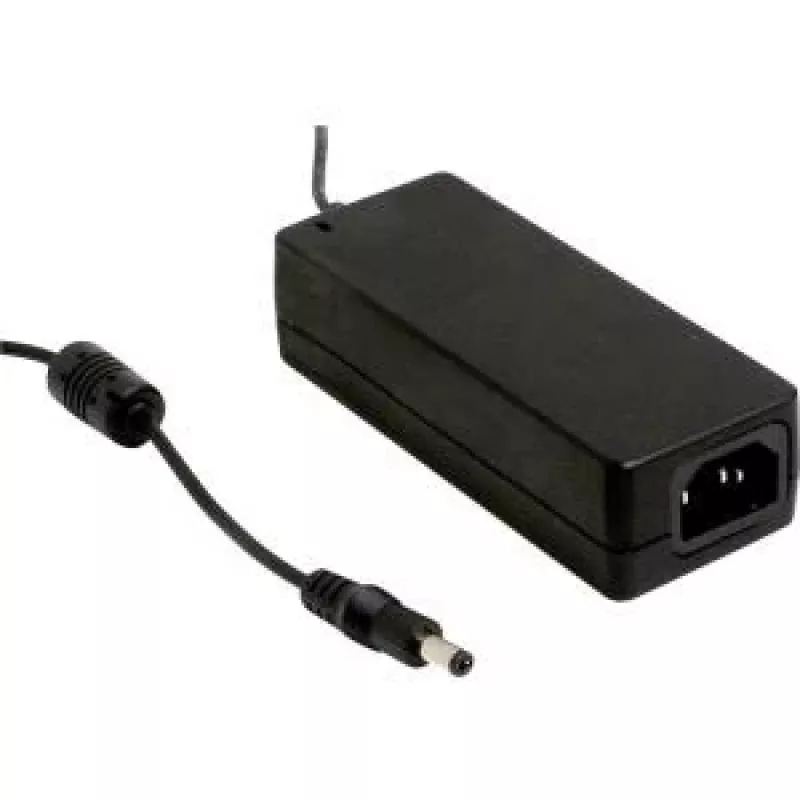

MEAN WELL GST60A07-P1J 60W 7,5V 8A desktop-voeding, zwart

Delivering 60 watts of clean, regulated power with an efficiency up to 90.5%, the MEAN WELL GST60A07-P1J desktop adapter is a robust solution for demanding electronics. Its 7.5 VDC output at 8 A is ideal for devices requiring a stable, low-voltage supply, from industrial controllers to medical peripherals.

Overview

This AC/DC power supply accepts a universal input of 90–264 VAC, making it suitable for worldwide use without switches or adjustments. The unit features an IEC 320-C14 inlet for a standard AC cord and a 5.5 x 2.1 mm center-positive barrel plug (P1J) for the DC output. Built with free air convection cooling, it operates silently across a wide temperature range of -30°C to +70°C.

What stands out

• High efficiency up to 90.5%, meeting DoE Level VI and ErP Stage 2 standards
• Comprehensive protections: short circuit, overload, over voltage, and over temperature
• No-load power consumption below 0.15 W for energy savings
• Compact desktop enclosure with black finish, easy to integrate
• Certified to UL60950-1, TUV EN60950-1, and CB IEC60950-1 safety standards

Technical details

• Output: 7.5 VDC, 8 A, 60 W maximum
• Input: 90–264 VAC, 120–370 VDC, 47–63 Hz
• Ripple & noise: 120 mVp-p maximum
• MTBF: >100,000 hours
• EMC: FCC Part 15 Class B, EN55022 Class B
• Operating temperature: -30°C to +70°C
• Dimensions: 125 x 50 x 31.5 mm (L x W x H)
• Weight: approximately 340 g

Our verdict

For professionals who need a reliable, efficient power source in a compact form factor, the GST60A07-P1J delivers consistent performance with all necessary safety certifications. Its low standby power and wide temperature tolerance make it a smart choice for always-on applications.
