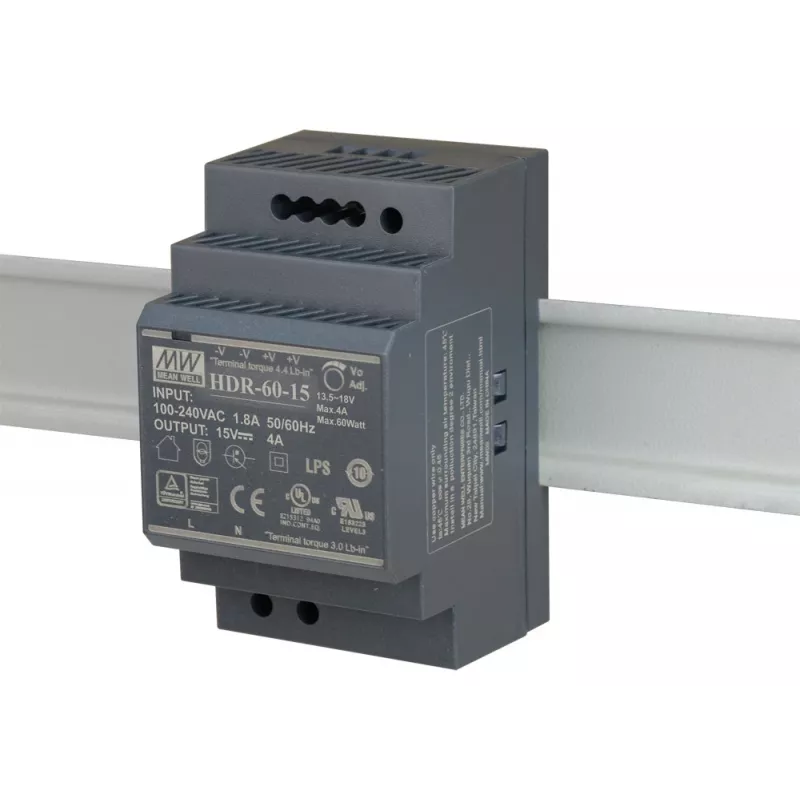

Mean Well HDR-60-15 15V/60W/4A DIN-schakelvoeding

The Mean Well HDR-60-15 is a high-performance DIN rail power supply unit delivering 15V DC output at 4A (60W). Designed for industrial and building automation applications, it offers reliable power conversion with a wide input range and comprehensive protection features. Its compact plastic housing with Class II isolation ensures safe operation in space-constrained environments.

Advantages

High efficiency up to 88% reduces energy loss and heat generation. Free air convection cooling enables silent operation without fans, ideal for noise-sensitive areas. The unit features constant current limiting with auto-recovery for overload protection, minimizing downtime. With a MTBF exceeding 700,000 hours, it ensures long-term reliability.

Suitable for

• Industrial control panels
• Building automation systems
• HVAC equipment
• Process control and instrumentation
• Security and access control systems

Key specifications

• Output Voltage: 15V DC (adjustable 13.5~18V)
• Output Current: 4A
• Output Power: 60W
• Input Voltage: 85~264VAC / 120~370VDC
• Efficiency: 88%
• Mounting: DIN Rail TS-35/7.5 or TS-35/15
• Protection: Short Circuit, Overload, Over Voltage
• Operating Temperature: -30~+70°C
• Cooling: Free air convection
• Isolation: I/P-O/P 3kVAC
• Ripple & Noise: 120mVp-p max
• No Load Power Consumption: <0.3W
• Certifications: UL 61010-1, UL 61010-2-201, TUV EN61558-1, EN61558-2-16, EAC, CE
• Housing Material: Plastic (Class II)
• Dimensions: 90x54.4x35.6mm (HxWxD)
• Weight: 0.16 kg

Recommendations

For optimal performance, ensure adequate ventilation around the unit. The output voltage can be adjusted via the built-in potentiometer. This power supply is suitable for use in pollution degree 2 environments. Always follow local electrical codes during installation.
