MEAN WELL LRS-150F-24 156W 24V 6,5A gesloten schakelvoeding met PFC-functie

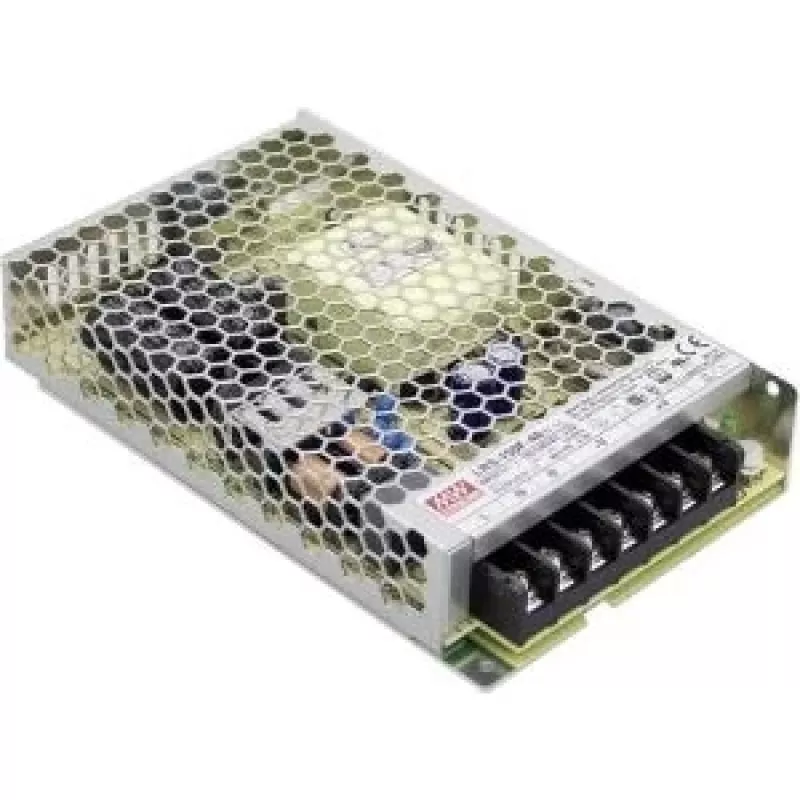

The MEAN WELL LRS-150F-24 is a 156W enclosed switching power supply delivering a stable 24V DC output at 6.5A. Its wide 85–264V AC input range and built-in active PFC function ensure reliable performance across global mains voltages, while the slim, low-profile metal case allows installation in space-constrained industrial environments.

Advantages

High efficiency up to 88% reduces energy consumption and heat generation, enabling fanless cooling by free air convection. Comprehensive protections against short circuit, overload, over voltage, and over temperature safeguard both the power supply and connected equipment. The unit operates from -30°C to +70°C, making it suitable for harsh environments. Compliance with UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16, and CCC GB4943 ensures safety and regulatory acceptance worldwide. Low ripple and noise (<150mVp-p) provide clean power for sensitive electronics.

Suitable for

• Industrial automation and control systems
• LED lighting and signage
• Test and measurement equipment
• Telecommunication devices
• General electronic applications requiring a reliable DC source

Key specifications

• Output power: 156W
• Output voltage: 24V DC
• Output current: 6.5A
• Input voltage: 85–264V AC / 120–370V DC
• Efficiency: 88%
• Protections: short circuit, overload, over voltage, over temperature
• Operating temperature: -30°C to +70°C
• Cooling: free air convection
• Safety standards: UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16, CCC GB4943
• EMC standards: EN55022 Class B, GB9254 Class B, EN55014
• Withstand voltage: I/P-O/P 3.75kVAC, I/P-FG 2kVAC, O/P-FG 1.25kVAC
• Housing: perforated metal case

Recommendations

For reliable 24V DC power in industrial or commercial settings, the LRS-150F-24 offers an excellent balance of performance, protection, and compact size. Its wide operating temperature range and full safety certifications make it a dependable choice for integration into OEM equipment or standalone use.
