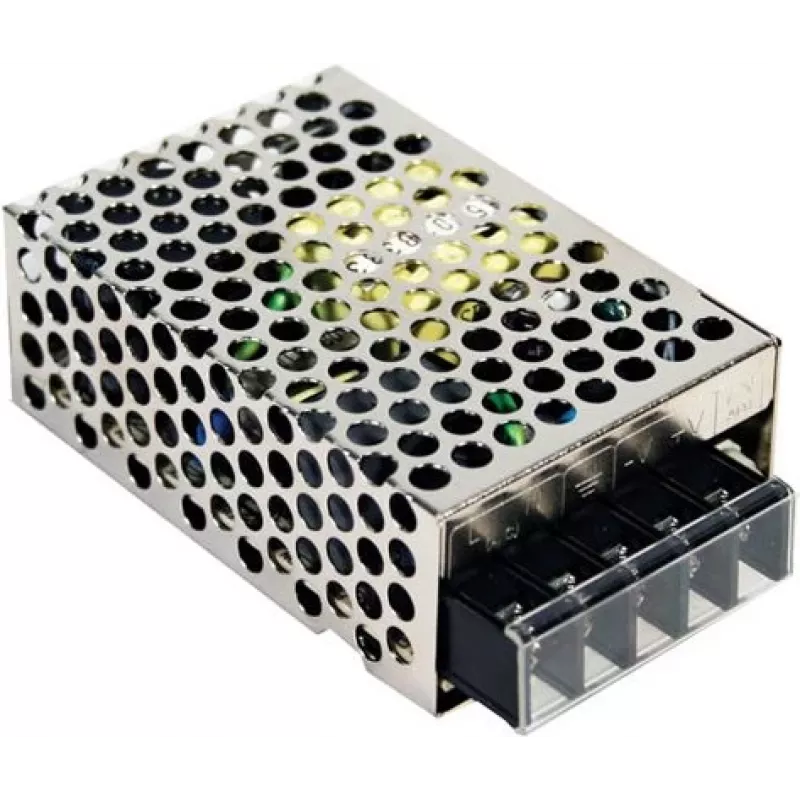

MEAN WELL RS-25-24 25,2W 24V DC gesloten schakelvoeding

The MEAN WELL RS-25-24 is a compact enclosed switching power supply delivering 24V DC at up to 1.1A, with a total output of 25.2W. Its universal AC input (85–264V AC) and wide operating temperature range (-20 to +70°C) make it suitable for industrial automation, LED lighting, and various electronics projects.

Advantages

High efficiency up to 83% reduces energy consumption and heat generation. Built-in protections against short circuit, overload, and overvoltage ensure reliable operation. The metallic chassis provides durability and effective heat dissipation, while free air convection cooling eliminates the need for a fan, ensuring silent operation.

Suitable for

• Industrial control systems
• LED lighting installations
• Test and measurement equipment
• Telecommunication devices
• DIY electronics projects

Key specifications

• Output: 24V DC, 1.1A, 25.2W
• Input: 85–264V AC / 120–370V DC, 47–63Hz
• Efficiency: 83%
• Protections: Short circuit, overload, overvoltage
• Operating temperature: -20 to +70°C
• Ripple & noise: 150mVp-p
• Voltage adjustment: 21.6–26.4V
• Isolation: 3kV AC input to output
• Cooling: Free air convection
• Mounting: Chassis mount
• Certifications: UL60950-1, TUV EN60950-1, CB, CE
• MTBF: >400,000 hours

Recommendations

For reliable 24V DC power in demanding environments, the MEAN WELL RS-25-24 offers proven performance and long-term durability. Its compact size and comprehensive protections make it an excellent choice for both professional and hobbyist applications.
