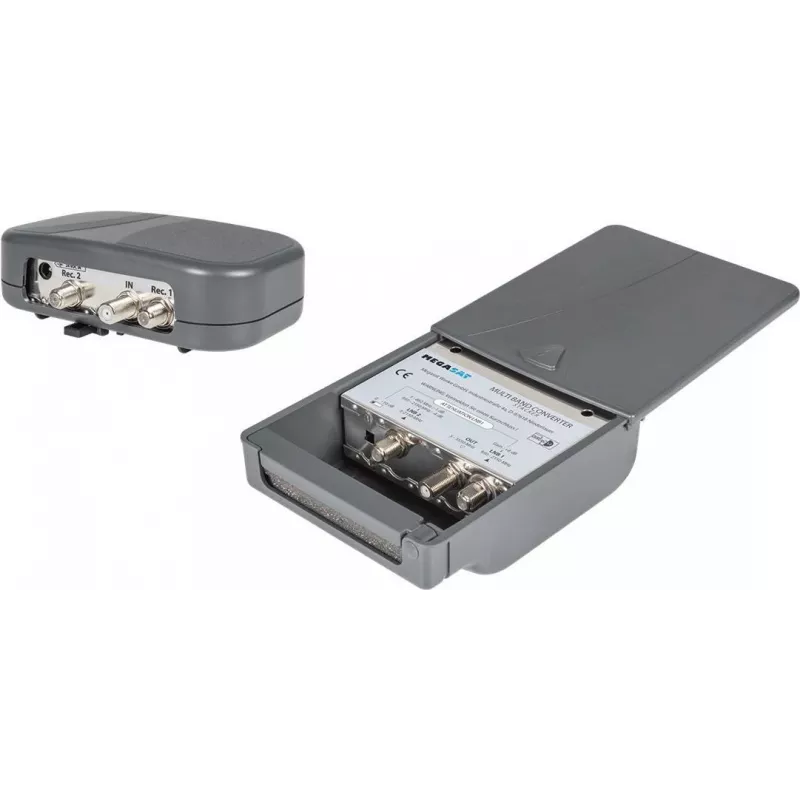

Megasat Stacker Destacker 600209 satellietsignaal-combiner/splitter

Megasat Stacker Destacker 600209 is a compact satellite IF signal combiner and separator designed to stack multiple LNB outputs onto a single coaxial cable and then restore them at the receiver end. The unit reduces cabling requirements in multi-receiver, long-run or shared installations and is suitable for residential, caravan (RV) and communal satellite systems where signal routing and cable reduction are required.

Advantages

The Megasat Stacker Destacker 600209 enables multiple LNB outputs to be transmitted over one cable without loss of channel separation, simplifying installation and lowering material costs. It provides reliable passive signal combining and separation without the need for power at the combiner/destacker points, is compact for easy mounting, and is compatible with standard satellite IF frequency ranges used by LNBs and receivers.

Suitable for

Key specifications

How to use

Connect the outputs of two or more LNBs to the input ports of the stacker at the dish end to combine the intermediate frequency (IF) signals onto a single coaxial cable. At the receiver end, install the destacker and connect the single incoming cable to its input; then connect the destacker outputs to each receiver or multiswitch input. Follow standard coaxial cable and satellite installation practices, ensuring correct impedance (75 Ω) and secure F-type connections.

Recommendations

For best results use high-quality 75 Ω coaxial cable and properly tightened F-connectors. Avoid excessively long passive runs without considering signal loss; if long distances or multiple splits are required, evaluate line amplifiers or active distribution solutions. Verify compatibility of connected LNBs and receivers with common satellite IF ranges.
