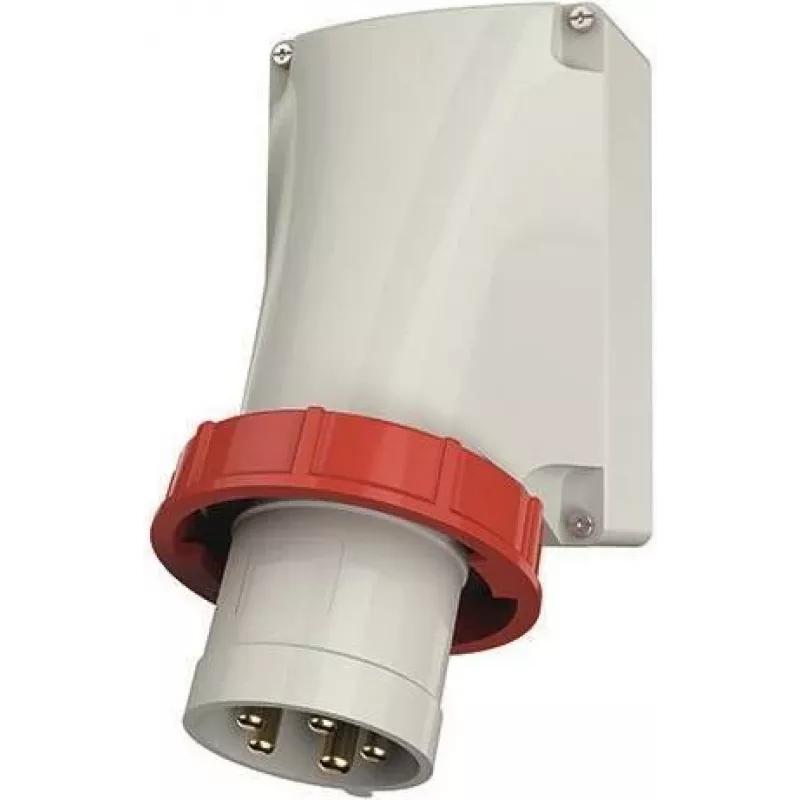

MENNEKES CEE apparaatstekker 5-polig 125A 400V 6h IP67 haaks schroefklemmen rood

Industrial electricians and plant maintenance teams rely on this MENNEKES CEE appliance inlet for heavy-duty power connections in harsh environments. The 5-pole (3P+N+PE) inlet is rated for 125 A at 400 V, with a 6h earth contact position and IP67 protection against dust and water immersion.

Key specifications

• Connector type: CEE appliance inlet
• Number of poles: 5-pole (3P+N+PE)
• Rated current: 125 A
• Rated voltage: 400 V
• Frequency: 50/60 Hz
• Earth contact position: 6h
• Ingress protection: IP67
• Connection technology: screw terminals
• Design: right-angled
• Housing material: plastic
• Colour: red (RAL 3000)
• Standard compliance: IEC 60309

Why choose it

Built for industrial power distribution, this inlet offers reliable screw terminal connections and a robust plastic housing. The IP67 rating ensures operation in wet or dusty conditions, while the red colour coding indicates a 400 V system for quick identification.

Ideal use cases

• Panel-mounted power entry for industrial machinery
• Outdoor equipment connections requiring watertight sealing
• Heavy-duty power distribution in construction sites or plants

Good to know

The right-angled design saves space in tight installations. The 6h earth contact position prevents mismating with other voltage configurations.
